Product Details:
|
| Product Name: | Double-sided Forming Machine | Type: | LS-300D |
|---|---|---|---|
| Max Paper Size: | L550*W450mm | Min Paper Size: | L110*W70mm |
| Paper Thickness: | 100-350g/m² | Paper Stacking Height: | 450mm/100kg |
| Highlight: | 8KW Heating Rigid Box Making Machine,350mm Length Rigid Box Making Machine,50mm Length Rigid Box Manufacturing Machine |
||

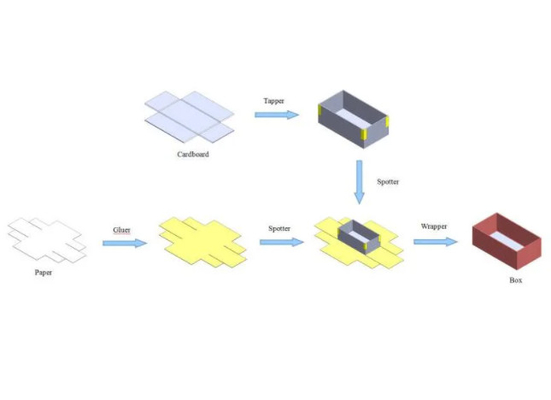

LS-300D Autoamtic high speed smart rigid box making machine is an ideal machine for customer who has big order quantity. It including the box corner pasting, paper gluing, box positioning, box wraping and pressing at one time.

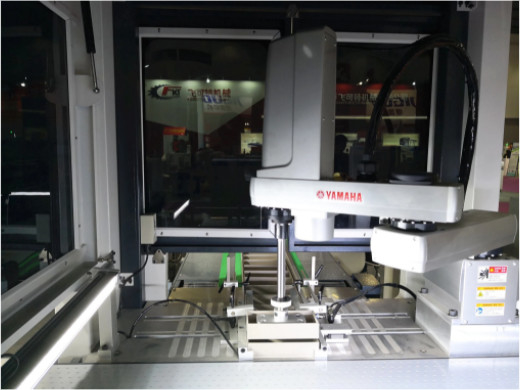

This machine has applied visual positioning for easy and high accurate positioning. Automatic setting in the forming station make the whole machine setting time reduce grealty. Whole line setting time in 45-60 minutes. Dual forming setting station make it can reach higher speed. Max speed can reach 40 pcs/min. So that can meet different order quantity request. What`s more, it has a smallest size working range. Min box size is 50*50*10mm. it can help you gain more orders with this smart setting machine.
The LS-300D is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-300D |
| Paper size(max) | L550*W450mm |
| paper size(min) | L120*W70mm |
| Max cardboard size | L550*W400mm |
| Min cardboard size | L80*W70mm |
| Box size(length) | L50-350mm |
| Box size(width) | W50-250mm |
| Box size(height) | H12-100mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-40 pcs/min |
| Motor power | 16kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3600kg |
| Machine dimension | L6400*W4000*H3000mm |
