15 - 25pcs/min Cardboard Box Making Machine For Shoe Packaging Box

Name: 15 - 25pcs/min Cardboard Box Making Machine For Shoe Packaging Box
Brand: Dongguan Longxingjian Intelligent Equipment Co., Ltd.
SKU: LS-1246B
Price: 100,000.00 USD
Availability: InStock

All Products

Rigid Box Making Machine
(146)

Packaging Box Making Machine
(148)

Rigid Box Forming Machine
(39)

Board Grooving Machine
(88)

Rigid Box Wrapping Machine
(45)

Gift Box Making Machine
(24)

Box Corner Pasting Machine
(26)

V Groove Cutter Machine
(5)

Paper Gluing Machine
(18)

Automatic Case Making Machine
(13)

Hot Melt Packaging Tape
(14)

Box Pressing Machine
(10)

Positioning Machine
(28)

Best Products

Rigid Packaging Box Making Machine 80mm

Paper Box Making Machine And Box Packing Machine Cardboard Size 600*400mm

Rigid Box Packing Machine For Book Case Making And Rigid Box Making

Certification

I'm Online Chat Now

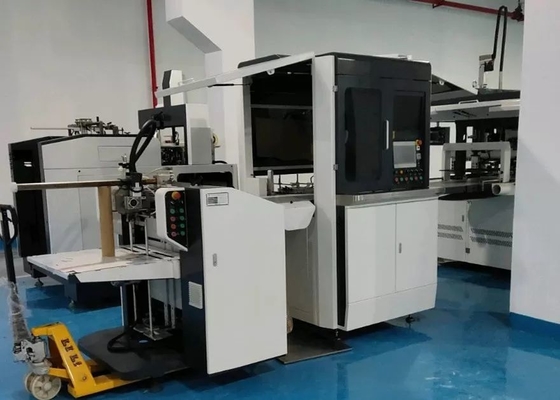

15 - 25pcs/min Cardboard Box Making Machine For Shoe Packaging Box

Large Image : 15 - 25pcs/min Cardboard Box Making Machine For Shoe Packaging Box

Product Details:

Place of Origin:	China
Brand Name:	Longxingsheng
Certification:	CE/ISO-9001
Model Number:	LS-1246B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	with film, paper and wooden crates
Delivery Time:	7-30 workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30 Sets per month

Contact Now

15 - 25pcs/min Cardboard Box Making Machine For Shoe Packaging Box

Description

Type::	Automatic Rigid Box Making Machine	Brand Name::	Long Xing Sheng
Dimension(LWH)::	L6600W3800H3000mm	Warranty::	1 Year
Key Selling Points::	Automatic	Machinery Test Report::	Not Available
Marketing Type::	Ordinary Product
Highlight:	25pcs/min Cardboard Box Making Machine , 15pcs/min Cardboard Box Making Machine , Cardboard Shoe Packaging Box Making Machine

Automatic Cardboard Box Making Machine For Shoe Box Gife Box

Main features

1. Automatic setting function.
2. Storage function for the positioning part, easy to adjustment
3. Pick up box system, can avoid to scraping cover paper, suitable for making high-end boxes
4. YAMAHA Robotic arm
5. Double Germany cameras (1000 pixels)

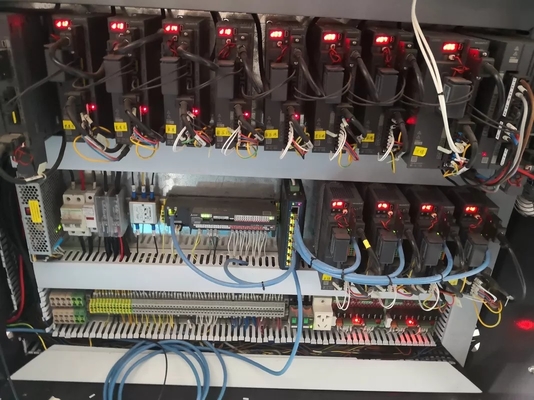

6. Mitsubishi servo motor
7. Panasonic PLC
8. Anti-leaking gluing system
9. Servo motor feeding system
10. Single forming part.
11. Whole machine require working in stable working environment. Such as air contioner room.



Application of automatic smart rigid box making machine

Quickly job setting

No need to change air pressing plate No need to change tuck in blade No need to move camera
for size changing, quick job changing


Make high-end boxes

Special pick up and wrapping system Can use the carton paper to wrap the inner box Can make
big size box, such as 600*400mm, and the height can reach 120mm Storage(memory) function
for sizes setting


Suitable for changeable orders

Such as 10,000 pcs for one order

Price vary with raw material cost, please contact our sales for latest prices.

15 - 25pcs/min Cardboard Box Making Machine For Shoe Packaging Box 2

LS-1246B/D Automatic smart rigid box making machine
Machine model	LS-1246B	LS-1246D
Paper size(max)	L800*W600mm	L800*W600mm
paper size (min)	L150*W100mm	L150*W100mm
Box size(length )	L 80-600mm	L 80-600mm
Box size(width)	W 65-400mm	W 65-400mm
Box size(height)	H 15-120mm	H 15-120mm
Max board size	L760*W560mm	L760*W560mm
Min board size	L120*W100	L120*W100
Paper thickness	80-350g/㎡	80-350g/㎡
Working speed	15-25 pcs/min	15-45pcs/min
Positioning accuracy	±0.1 mm	±0.1 mm
Motor power	14kw/380v 3 phase	14kw/380v 3 phase
Heating power	8 kw	8 kw
Air pressure	40L/min 0.8Mpa	40L/min 0.8Mpa
Weight of machine	3800kg	5000kg
Machine dimension	L6600W3500H3000mm	L7600W3800H3000mm
Machine dimension	L6600W3500H3000mm	L7600W3800H3000mm

Working range of LS-1246B

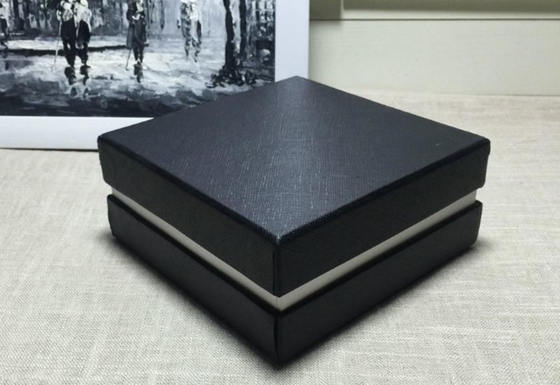

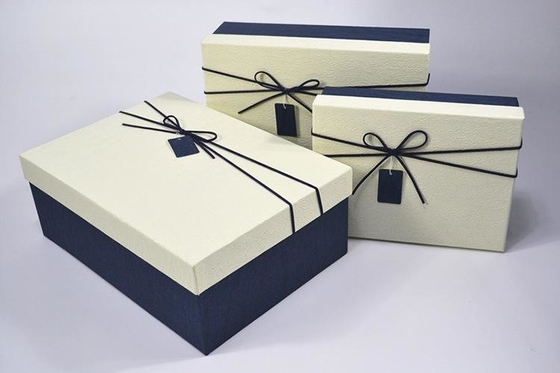

Normal rigid box

Long edge folding box

Edge folding length 10-100mm

Wrapping into bottom box

Wrapping into bottom depth 10-100mm

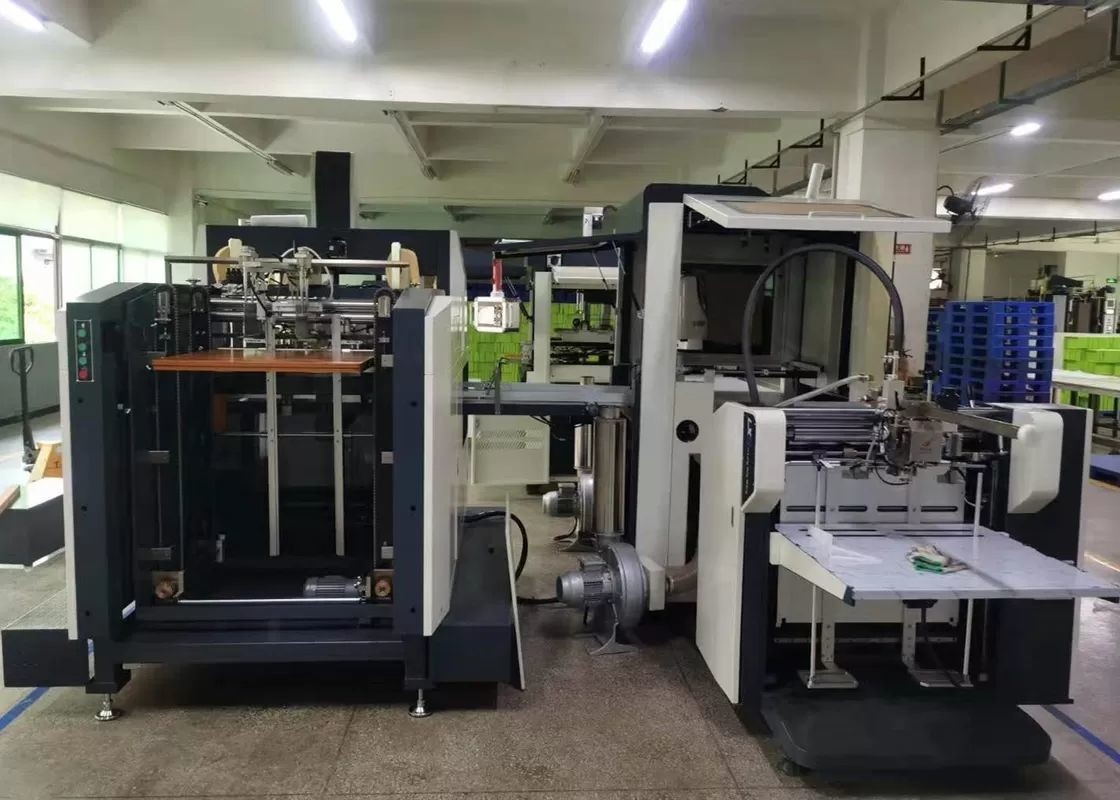

Machine installation

Optional function

Automatic Air Pressing Machine (Optional device)

For higher quality products, such as cellphone boxes, ensure the paper paste on the cardboard tightly before it dried.

Glue Viscosity Device (Optional device)

Automatic detecting the hot melt glue thickness
