Panasonic PLC Cardboard Box Making Machine , 380V Sweet Box Making Machine

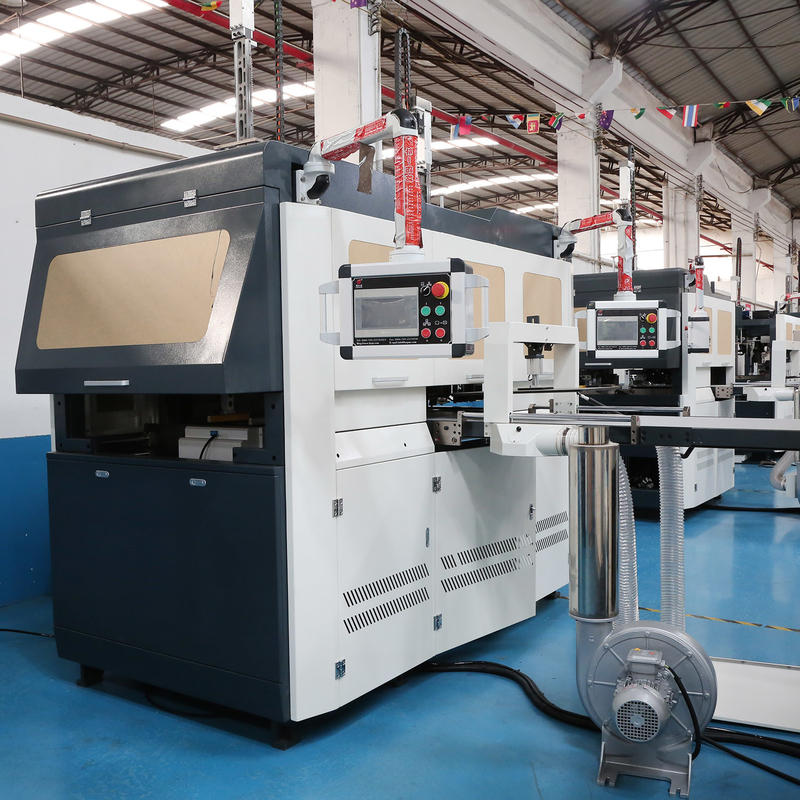

Large Image : Panasonic PLC Cardboard Box Making Machine , 380V Sweet Box Making Machine

Product Details:

Place of Origin:	China
Brand Name:	Longxingsheng
Certification:	CE/ISO-9001
Model Number:	LS-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	with film, paper and wooden crates
Delivery Time:	7-30 workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30 Sets per month

Contact Now

Panasonic PLC Cardboard Box Making Machine , 380V Sweet Box Making Machine

Description

Condition::	New	Place Of Origin::	Guangdong, China
Voltage::	380V	Weight::	3600kg
Production Capacity::	15-40pcs/min	Max. Workable Width::	600mm
Video Outgoing-inspection::	Provided	Core Components::	Bearing
Highlight:	Panasonic PLC Cardboard Box Making Machine , 380V Cardboard Box Making Machine , Panasonic PLC Sweet Box Making Machine

Smart Cardboard Box Making Machine Sweet Box Making Machine

Products Description

Application of automatic high speed smart rigid box making machine

Quickly job setting No need to change air pressing plate No need to change tuck in blade No need to move camera for size changing, quick job changing
Storage(memory) function for sizes setting Make high-end boxes  Special pick up and wrapping system Can use the carton paper to wrap the inner box Can make smallest size box, such as 50*50*12mm Suitable for changeable orders
Such as 1,000 pcs for one order

Main features:
1. Automatic setting function.

2. Storage function for the positioning part, easy to adjustment

3. Pick up box system, can avoid to scraping cover paper, suitable for making high-end boxes

4. YAMAHA Robotic arm

5. Double Germany cameras (1000 pixels)
6. Mitsubishi servo motor
7. Panasonic PLC
8. Anti-leaking gluing system
9. Servo motor feeding system

10. Double forming part. High Speed.

11. Whole machine require working in stable working environment. Such as air conditioner room.

Price vary with raw material cost, please contact our sales for latest prices.

Automatic setting function

LS-300D/1246D Automatic smart rigid box making machine
Machine model	LS-300D	LS-1246D
Paper size(max)	L550*W450mm	L800*W600mm
paper size (min)	L120*W70mm	L150*W100mm
Box size(length )	L 50-350mm	L 80-600mm
Box size(width)	W 50-250mm	W 65-400mm
Box size(height)	H 12-100mm	H 15-120mm
Max board size	L550*W400mm	L760*W560mm
Min board size	L80*W70	L120*W100
Paper thickness	80-350g/㎡	80-350g/㎡
Working speed	15-40 pcs/min	15-45pcs/min
Positioning accuracy	±0.1 mm	±0.1 mm
Motor power	16kw/380v 3 phase	14kw/380v 3 phase
Heating power	8 kw	8 kw
Air pressure	40L/min 0.8Mpa	40L/min 0.8Mpa
Weight of machine	3600kg	5000kg
Machine dimension	L6400W4000H3000mm	L7600W3800H3000mm

Working range of LS-300D

Small rigid box

Long edge folding box

Edge folding length 10-90mm

Wrapping into bottom box

Wrapping into bottom depth 15-80mm

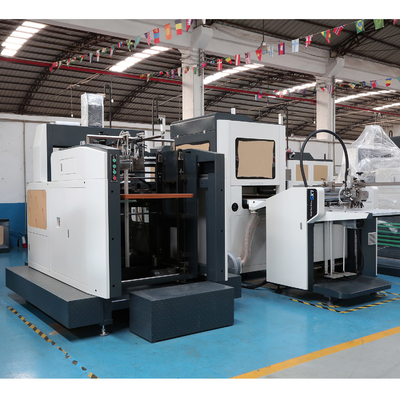

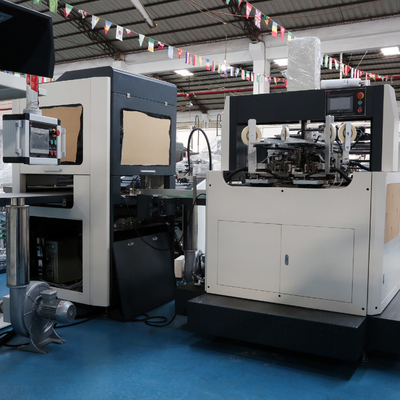

Machine installation

Optional function

Automatic Air Pressing Machine (Optional device)

For higher quality products, such as cellphone boxes, ensure the paper paste on the cardboard tightly before it dried.

Glue Viscosity Device (Optional device)

Automatic detecting the hot melt glue thickness

Local Language Operation System (Optional )

Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.

Air Operated Double Diaphragm Pump (Optional device)

Applied in white glue pumping.
