Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine

Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine

Large Image :  Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine

Product Details:
Place of Origin: China
Brand Name: Longxingsheng
Certification: CE, ISO9000
Model Number: LS-1200B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 20-60 days
Supply Ability: 10-20 set per month
Contact Now

Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine

Description
Type:: Slitting Rewinder Applicable Industries:: Package Machine
Condition:: New Computerized:: NO
Warranty:: 1 Year Usage:: V-grooving
Highlight:

40m/min Groove Cutting Machine

,

380v Groove Cutting Machine

,

Dustless Paper Grooving Machine

LS-1200B
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 0

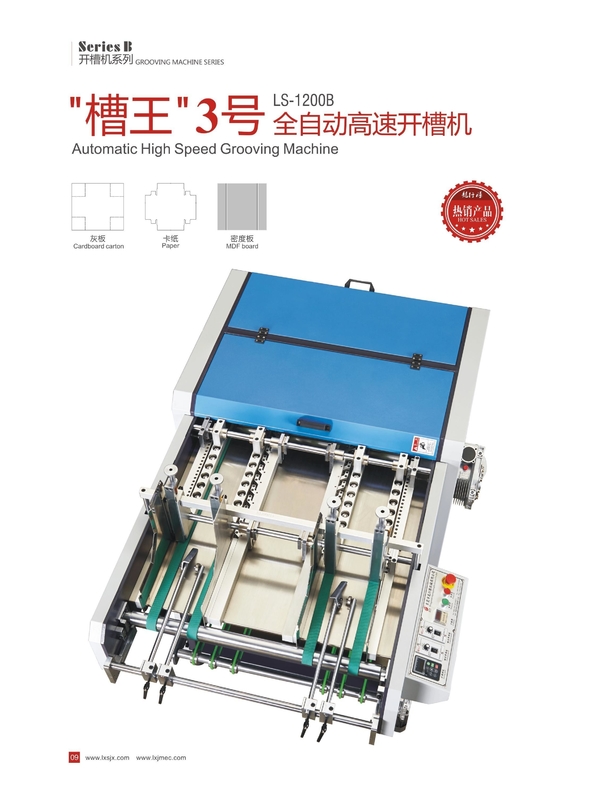

About LS-1200B.

LS-1200B Automatic cardboard grooving machine is using for cardboard V shape slots grooving. It can groove at 80-140 degree V slots. It can groove 8 slot at a time (Depend on cardboard size). Working speed is 40m/min, around 100-200 pcs/min.

LS-1200B has applied belt feeding syatem and double alligning system to ensure the constant and accurate cardboard feeding to grooving area. In the grooving area, it applies big roller which diameter is 60cm and pressing belt to convey card board pass the grooving blade. After finished, the conveyor will convey grooved cardboard to the front side, corner waste and slots waste will be feeding to the back side.

This roller grooving machine has start from 2012, Now it is popular in the packing industries. It is an ideal equipment for cardboard, MDF board and thin paper grooving.



Price vary with raw material cost, please contact our sales for lastest prices.



Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 1
Specification of LS-1200B Automatic high speed cardboard grooving machine
Machine model 型号
LS-1200B
Quantity of groove at a time 最大开槽数
8 slots
Working speed 工作速度
40m/min(100-200pcs/min)
Cardboard size 纸板规格
140*120-1000*600mm
Cardboard thickness 纸板厚度
0.8-4mm
Motor power 电机功率
2Kw/380v
Machine dimension 外形尺寸
L2050*W1320*H1350mm
Machine weight 机器重量
1250kg
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 2

1. Control table

Including power button, emergency stop button, counter and speed adjuster.
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 3

2.Double cardboard feeding device

Finished two direction grooving in one machine at same time
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 4

3. Double alligning system

Ensured feeding the cardboard staightly to the feeding area.
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 5



4. Cardboard pressing belt

Pressing cardboard on the roller

Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 6



5. Double line blade seat.

Totally 8 blade seat which is able to installed blade holder.

Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 7



6. Grooving angle adjusment.

It can adjust the grooving slots from 80-140 degree.

Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 8

7. Upgrade blade holder

Upgrade from ond type, easier for setting. Installed left&right blade here.

Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 9



8. Grooving blade.

V-shape grooving blade, including two types. 90 degree and 120 degree blades.

Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 10



9. Waste cleaning conveyor.

Remove corner waste and slots waste out from the finished products.

Standard configurations
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 11



90 degree blade holder
Equipped 4 sets 90 degree blade holder. It can be clarify by the square shape.
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 12



120 degree blade holder
Equipped 4 sets 120 degree blade holder, including blade. It can be clarify by the rectangular shape.
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 13



Grinding machine
One set grinding machine, grinding the blade when it gets blunt.
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 14



Collecting table
Collecting finished grooving products.
Working range of LS-1200B
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 15



Cardboard
Thickness at 0.8-4mm. Cardboard is a reproduced material by waste paper. It is cheap and has good quality.
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 16



MDF board
Thickness at 1-3mm.
MDF board is widely applied in the wine box, jewelry box etc. It is reproduced by wood material.
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 17



Thin paper
Thickness at 500-800 gsm
It is thinner than cardboard. Mostly has been laminated processing. This is one time finished product, higher value than cardboard and MDF. Only applied in high value packing.
Working process
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 18

1. Cardboard split to require size

Cutting the cardboard to require size by die cutting machine or cardboard spliting machine
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 19

2. Half cut on the B side

Half cutting by die cutting machine. Ensure the four corner will be removed easily after grooving.
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 20

3. First cardboard feeding

Feeding the cardboard, A side at upside.
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 21

4. Second cardboard feeding

Change direction, feeding the cardboard, A side at upside.
Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine 22

5. Finished products

After finished grooving, the corner waste and v-slots waste will be removed when it passing the waste cleaning conveyor.
Grooved products and die cutting products
