LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

Large Image : LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

Product Details:

Place of Origin:	China
Brand Name:	Longxingsheng
Certification:	CE/ISO-9001
Model Number:	LS-1246G

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	with film, paper and wooden crates
Delivery Time:	7-30 workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30 Sets per month

Contact Now

LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

Description

Product Name:	Automatic Book Type Box Making Machine	Samples::	Not Available
Customization::	Graphic Customization(Min. Order: 1 Sets)	Shipping::	Support Sea Freight
Service::	1 Year For Core Components	Paper Size(max):	L800*W600mm
Highlight:	Automatic Case Maker , Glue viscosity Automatic Case Maker , 15pcs/min Rigid Box Making Machine

LS-1246G Multi-function fully automatic rigid box making machine
Machine model	LS-1246G
Paper size(max)	L800*W600mm
paper size (min)	L150*W100mm
Box Length	100-600mm
Box Width	60-400mm
Box Height	15-140mm
Paper thickness	80-350g/㎡
Cardboard thickness	0.8-3mm
Working speed	15-25pcs/min
Edge folding size	10-100mm
Turn in depth	15-100mm
Motor power	12.5kw/380v 3 phase
Heating power	8 kw
Air pressure	40L/min 0.8Mpa
Weight of machine	3800kg
Machine dimension	L6500W3600H3200mm

Product Parameters

Optional function

Hardcover feeding device (Optional device)

It applied in hardcover making, inner paper of hardcover pasting.

Glue viscosity device (Optional device)

Detecting hot melt glue thickness, adding water to glue tank automatically.

LS-F6 Rigid box making machine (Optional device)

Normal size, small size able to be modified in this machine

Forming part can be sold separately

For customer not have enough budget, this forming part able to add separately.

Products Description

Control table

Including touch screem, Monitor, button for control movment.

Electric box

Including controller of robotic arm, servo motor driver, PLC etc.

Paper feeding device

Cam structure paper feeding device which is drived by servo motor.

Gluing system

Upgrade gluing system, higher using rate of glue

Corner pasting and feeding

Automatic corner pasting and box feeding

Positioning system

Including robotic arm, light source, double camera.

Second box pressing

Pressing box tightly on the glued paper.

Box feeding

Easy operational box feeding system

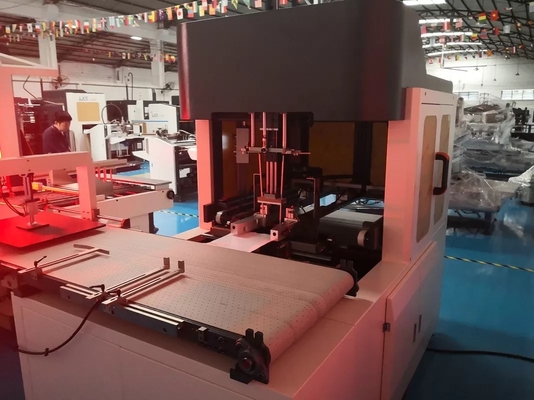

Forming part

Forming machine with simple structure. Able to do normal rigid box, slant side box (Mold customization), long edge folding box, wrapping into bottom.

Machine parts

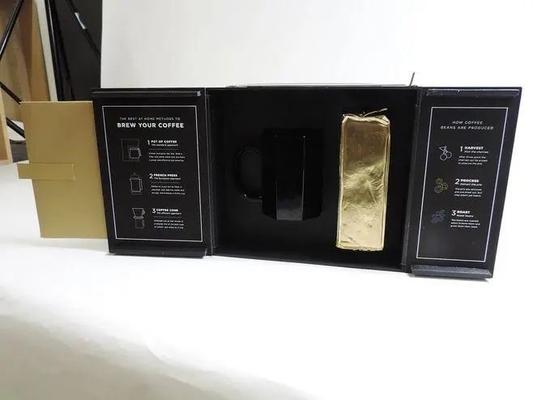

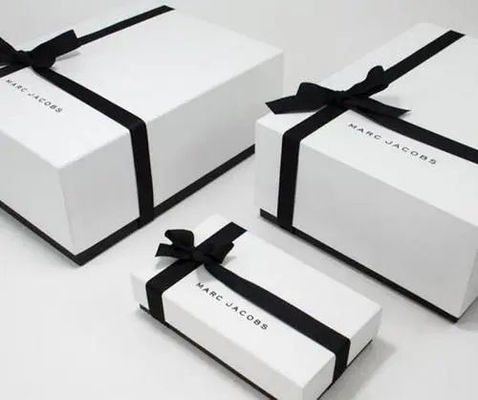

Finished products by LS-1246G

Machine installation
