14kw Box Stretch Wrapping Machine , 380v Hot Glue Pasting Machine

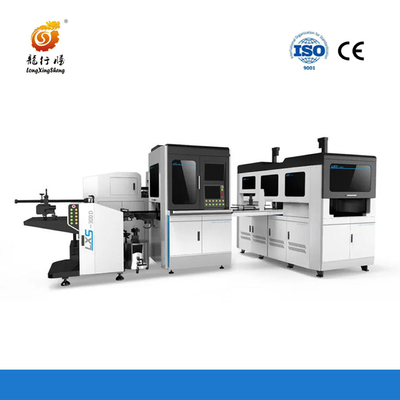

Large Image : 14kw Box Stretch Wrapping Machine , 380v Hot Glue Pasting Machine

Product Details:

Place of Origin:	China
Brand Name:	Longxingsheng
Certification:	CE/ISO-9001
Model Number:	LS-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	with film, paper and wooden crates
Delivery Time:	7-30 workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30 Sets per month

Contact Now

14kw Box Stretch Wrapping Machine , 380v Hot Glue Pasting Machine

Description

Brand Name::	LONGXINGSHENG	Color::	Black & White
Video Outgoing-inspection::	Provided	Machinery Test Report::	Provided
Marketing Type::	Ordinary Product	After-sales Service Provided::	Engineers
Highlight:	Hot Glue Box Stretch Wrapping Machine , 380v Box Stretch Wrapping Machine , 14kw Hot Glue Pasting Machine

AUTOMATIC BOX MAKING MACHINE LS-300D300D is designed based on our 12 years’ experience of rigid box machine manufacturing, 300D has higher speed and biggest size range up to 350*250*100mm. Under stable performance it can produce 15-40 boxes per min. It’s automatic setting feature greatly simplify box making for our customers. operator only need to input size of cover paper and size of box, machine set up will be automatically finished by computer and servo motor- controlled system.
Application of automatic high speed smart rigid box making machineQuickly job setting .No need to change air pressing plate .
No need to change tuck in blade .
No need to move camera for size changing, quick job changing
Storage(memory) function for sizes setting
Make high-end boxes
Special pick up and wrapping system
Can use the carton paper to wrap the inner box
Can make smallest size box, such as 50*50*12mm
Suitable for changeable orders
Such as 1,000 pcs for one order
FEATURES AT A GLANCE
MAIN FEATURES:
1. Automatic setting function. 2. Storage function for the positioning part, easy to adjustment
3. Pick up box system, can avoid to scraping cover paper, suitable for making high-end boxes 4. YAMAHA Robotic arm 5. Double Germany cameras (1000 pixels) 6. Mitsubishi servo motor 7. Panasonic PLC 8. Anti-leaking gluing system 9. Servo motor feeding system 10. Double forming part. High Speed. 11. Whole machine require working in stable working environment. Such as air conditioner room.
Right elevation

			LS-300D/1246D Automatic smart rigid box making machine

			Machine model

			LS-300D

			LS-1246D

			Paper size(max)

			L550*W450mm

			L800*W600mm

			paper size (min)

			L120*W70mm

			L150*W100mm

			Box size(length )

			L 50-350mm

			L 80-600mm

			Box size(width)

			W 50-250mm

			W 65-400mm

			Box size(height)

			H 12-100mm

			H 15-120mm

			Max board size

			L550*W400mm

			L760*W560mm

			Min board size

			L80*W70

			L120*W100

			Paper thickness

			80-350g/㎡

			80-350g/㎡

			Working speed

			15-40 pcs/min

			15-45pcs/min

			Positioning accuracy

			±0.1 mm

			±0.1 mm

			Motor power

			16kw/380v 3 phase

			14kw/380v 3 phase

			Heating power

			8 kw

			8 kw

			Air pressure

			40L/min 0.8Mpa

			40L/min 0.8Mpa

			Weight of machine

			3600kg

			5000kg

			Machine dimension

			L6400*W4000*H3000mm

			L7600*W3800*H3000mm

Left elevation
Front elevation

Automatic setting function

Packaging & delivery

FAQ

Q1:What is the rigid box making machine LS-300D?
A1:It only need paper and cardboard which can make the high-precision carton you want.

Q2: What is the job setting times of this machine?
A2:About 30-45 mins

Q3:What is the accuracy of this machine?
A3: Abour 0.1 milimeter.
