Product Details:
|
| Products Name: | Automatic Smart Packaging Rigid Big Box Making Machine Phone Box Wrapping System | Box Length: | 80-530mm |
|---|---|---|---|
| Box Width: | 65-380mm | Box Height: | 8-120mm |
| Working Speed: | 10-20 Pcs/min | Edge Folding Size: | 10-90mm |
| Turn In Depth: | 15-80mm | Pressing Type: | Air Pressing |
| Highlight: | 120mm Carton Box Making Machine,Corrugated Carton Box Making Machine,530mm Packaging Box Making Machine |
||
The box conveyor belt conveys the boxes after the corners are attached to the robot picking box. The conveyor belt needs to continue to operate to ensure that it moves forward on the conveyor belt. If the number of boxes on the conveyor belt is not enough, it may lead to the robot picking box.
The box is not in place, resulting in incorrect positioning of the robot. A speed control box is installed on the side of the conveyor belt, and the speed of the conveyor belt can be adjusted by turning the button of the speed control box.

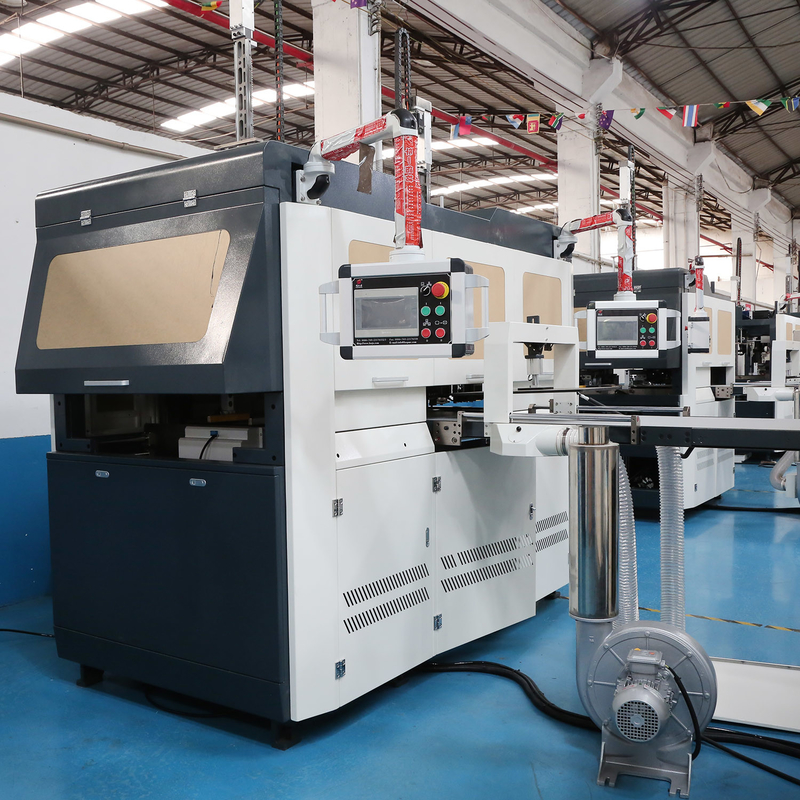

LS-1246B Automatic smart rigid box making machine is an ideal machine for customer who has changable orders. It including the box corner pasting, paper feeding&gluing, box feeding&positioning, box wraping and air pressing at one time.
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
