Product Details:
|
| Products Name: | Automatic Smart Packaging Rigid Big Box Making Machine Phone Box Wrapping System | Box Length: | 80-600mm |
|---|---|---|---|
| Box Width: | 65-380mm | Box Height: | 15-150mm |
| Working Speed: | 15-25pcs/min | Edge Folding Size: | 10-90mm |
| Type: | LS-1246B | Pressing Type: | Air Pressing |
| Highlight: | ISO-9001 Rigid Box Making Machine,25pcs/min Paper Box Packing Machine,380mm Paper Box Packing Machine |
||
The box conveyor belt conveys the boxes after the corners are attached to the robot picking box. The conveyor belt needs to continue to operate to ensure that it moves forward on the conveyor belt. If the number of boxes on the conveyor belt is not enough, it may lead to the robot picking box.
The box is not in place, resulting in incorrect positioning of the robot. A speed control box is installed on the side of the conveyor belt, and the speed of the conveyor belt can be adjusted by turning the button of the speed control box.

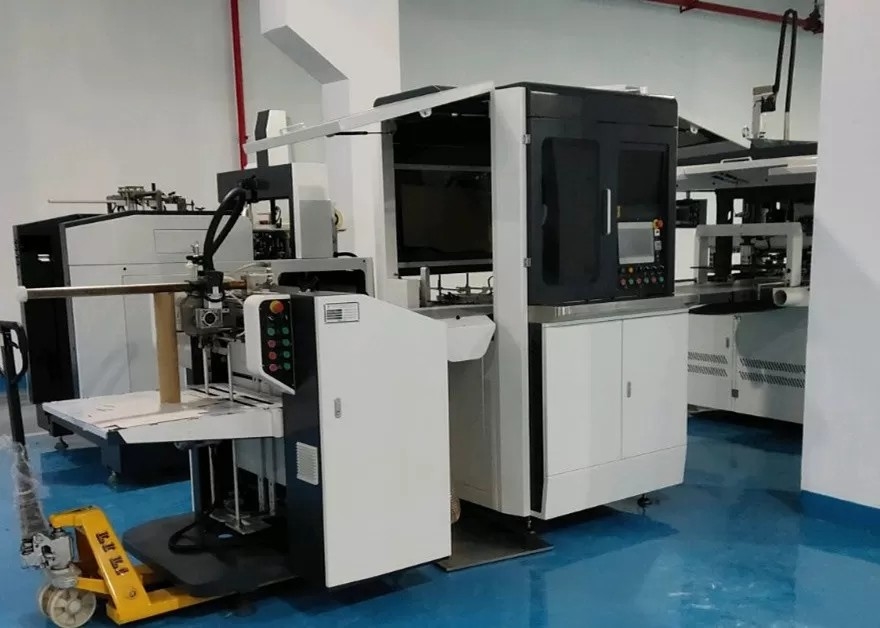

LS-1246B Automatic smart rigid box making machine is not only make rigid box but also make hardcover. It a suitable for all kinds of rigid box make and hardcover make.It including the box corner pasting, paper feeding&gluing, box feeding&positioning, box wraping and air pressing at one time.
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: About 45 minutesContact Person: Ms. Lyla Lyu
