High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine

High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine

Large Image :  High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine

Product Details:
Place of Origin: China
Brand Name: Longxingsheng
Certification: CE, ISO9000
Model Number: LS-1200B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 20-60 days
Supply Ability: 10-20 set per month
Contact Now

High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine

Description
Applicable Industries: Cardboard Cutting Machine Working Speed: 15-40m/min
Length Size: 140-1000mm Wide Size: 120-600mm
Usage: V Grooving Quantity Of Grooving: 8 Slots
Highlight:

V Grooving Cardboard Cutting Machine

,

8 Slots Cardboard Cutting Machine

,

40m/min V Grooving Machine

LS-1200B

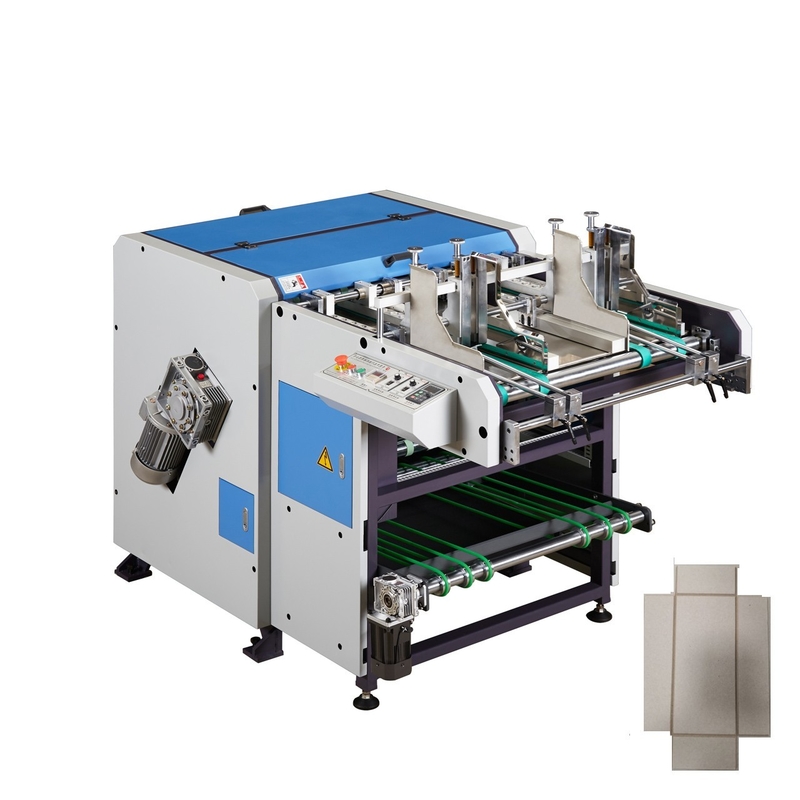

High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 0

Automatic Hiigh Speed Cardboard Cutting Machine, Paper V Grooving Machine

LS-1200B Automatic cardboard grooving machine is using for cardboard V shape slots grooving. It can groove at 80-140 degree V slots. It can groove 8 slot at a time (Depend on cardboard size). Working speed is 40m/min, around 100-200 pcs/min.

LS-1200B adopts belt feeding system and double alignment system to ensure that the cardboard is constantly and accurately sent to the slotted area. In the slotted area, a large roller with a diameter of 60cm and a pressure belt are used to transport the card paper through the slotted blade. When this is done, the conveyor carries the slotted cardboard to the front, and the corner waste and groove waste to the back.



High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 1
Specification of LS-1200B Automatic high speed cardboard grooving machine
Machine model
LS-1200B
Quantity of groove at a time
8 slots
Max Cardboard size
 1000*600mm
Min Cardboard size
 140*120*mm
Cardboard thickness
0.8-4mm
Motor power
2Kw/380v
Machine dimension
L2050*W1320*H1350mm
Machine weight
1250kg
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 2

1. Control table

Including power button, emergency stop button, counter and speed adjuster.
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 3

2.Double cardboard feeding device

Finished two direction grooving in one machine at same time
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 4

3. Double alligning system

Ensured feeding the cardboard staightly to the feeding area.
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 5



4. Cardboard pressing belt

Pressing cardboard on the roller

High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 6



5. Double line blade seat.

Totally 8 blade seat which is able to installed blade holder.

High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 7



6. Grooving angle adjusment.

It can adjust the grooving slots from 80-140 degree.

High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 8

7. Upgrade blade holder

Upgrade from ond type, easier for setting. Installed left&right blade here.

High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 9



8. Grooving blade.

V-shape grooving blade, including two types. 90 degree and 120 degree blades.

High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 10



9. Waste cleaning conveyor.

Remove corner waste and slots waste out from the finished products.

Standard configurations
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 11



90 degree blade holder
Equipped 4 sets 90 degree blade holder. It can be clarify by the square shape.
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 12



120 degree blade holder
Equipped 4 sets 120 degree blade holder, including blade. It can be clarify by the rectangular shape.
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 13



Grinding machine
One set grinding machine, grinding the blade when it gets blunt.
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 14



Collecting table
Collecting finished grooving products.
Working range of LS-1200B
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 15



Cardboard
Thickness at 0.8-4mm. Cardboard is a reproduced material by waste paper. It is cheap and has good quality.
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 16



MDF board
Thickness at 1-3mm.
MDF board is widely applied in the wine box, jewelry box etc. It is reproduced by wood material.
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 17



Thin paper
Thickness at 500-800 gsm
It is thinner than cardboard. Mostly has been laminated processing. This is one time finished product, higher value than cardboard and MDF. Only applied in high value packing.
Working process
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 18

1. Cardboard split to require size

Cutting the cardboard to require size by die cutting machine or cardboard spliting machine
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 19

2. Half cut on the B side

Half cutting by die cutting machine. Ensure the four corner will be removed easily after grooving.
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 20

3. First cardboard feeding

Feeding the cardboard, A side at upside.
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 21

4. Second cardboard feeding

Change direction, feeding the cardboard, A side at upside.
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 22

5. Finished products

After finished grooving, the corner waste and v-slots waste will be removed when it passing the waste cleaning conveyor.
Grooved products and die cutting products
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 23

Grooving cardboard& Die cuttting cardboard


High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 24

Die cutted box & Grooved box


Machine installation
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 25
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 26
Expo with customers
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 27
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 28
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 29
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 30
Certification
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 31
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 32
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 33
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 34
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 35
Company Profile



Dongguan Longxingjian Intelligent Equipment Co.,Ltd



We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.

We uphold the "professional, focus, customer first" business philosophy, adhere to the quality of survival, management for efficiency, innovation and development. We are committed to spare no effort to build a national brand, for the printing and packaging industry contribution.



High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 36
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 37
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 38
Packaging&Delivery
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 39
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 40
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 41
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 42
Our Service
High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 43



Pre-sale service.

* Inquiry and consulting support.

* Sample testing support.

* Factory visit.

* Order confirmation.



High Speed Cardboard Cutting Machine , Automatic Paper V Grooving Machine 44



After-sale service.

* Machine installation ,training in customer factory or customer can come to our company for training.

* Engineers available to service machinery overseas.

* On-line technology support.

* Free machine parts replacement during warranty.

* Whole life of machine service.



FAQ

1.What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).

2.Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .

3.What is the production time while placing order?---- Within 7-30 workdays.

4.Do you have stock product to sell?----Normally we do,it depends on which models you inquired .

5.What is your lead time?----Within 5-30 workdays ,we will arrange your order upon receiving your 30% deposit on order and ship out the machine before receiving your 70% remaining payment.

6.Can LXS company handle shipping for customers?----Yes.(Please provide us your requested sea port and we can check the shipping cost from logistic company and arrange shipping for you.

7.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.

8.How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.

9.Can your engineer come to us for installing the machine & handle problems?---Yes,we can.And it is free-cost for the installing & training for 7 work days,you just need to pay for the air tickets & accommodation for our engineer.

10.Are you a manufacturer?----Yes, we are a manufacturer with over 12 years professional experience .Welcome the exclusive agents in Europe/Asia/Africa/America to join us.
