Automatic Cardboard Cutting Machine , Paper V Grooving Machine

Automatic Cardboard Cutting Machine , Paper V Grooving Machine
Automatic Cardboard Cutting Machine , Paper V Grooving Machine Automatic Cardboard Cutting Machine , Paper V Grooving Machine Automatic Cardboard Cutting Machine , Paper V Grooving Machine

Large Image :  Automatic Cardboard Cutting Machine , Paper V Grooving Machine

Product Details:
Place of Origin: China
Brand Name: Longxingsheng
Certification: CE, ISO9000
Model Number: LS-1200B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 20-60 days
Supply Ability: 10-20 set per month
Contact Now

Automatic Cardboard Cutting Machine , Paper V Grooving Machine

Description
Applicable Industries: Automatic Cardboard Cutting Machine Max Size: 1000*600mm
Min Size: 140*120mm Condition: New
Warranty: One Year Usage: Cardboard V Grooving
Quantity Of Groove At A Time: 8 Slots
Highlight:

Automatic Cardboard Cutting Machine

,

200pcs/min V Grooving Machine

,

40m/min Cardboard Grooving Machine

LS-1200B
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 0

Automatic Cardboard Cutting Machine Paper V Grooving Machine Cardboard Grooving Machine

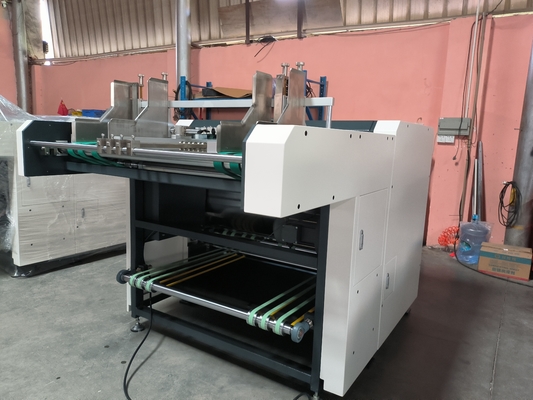

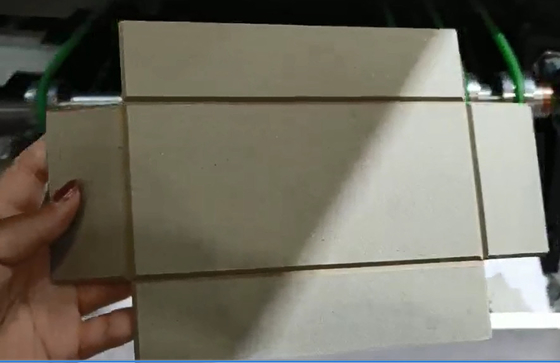

LS-1200B Automatic cardboard grooving machine is using for cardboard V shape slots grooving. It can groove at 80-140 degree V slots. It can groove 8 slot at a time (Depend on cardboard size). Working speed is 40m/min, around 100-200pcs/min.

LS-1200B has applied belt feeding syatem and double alligning system to ensure the constant and accurate cardboard feeding to grooving area. In the grooving area, it applies big roller which diameter is 60cm and pressing belt to convey card board pass the grooving blade. After finished, the conveyor will convey grooved cardboard to the front side, corner waste and slots waste will be feeding to the back side.

This type of roller cutter has been in use since 2012, and now it enjoys a high reputation in the packaging industry. It is the ideal equipment for cardboard, medium density board and paper slotting.



Automatic Cardboard Cutting Machine , Paper V Grooving Machine 1
Specification of LS-1200B Automatic high speed cardboard grooving machine
Machine model
LS-1200B
Quantity of groove at a time
8 slots
Working speed
15-40m/min(100-200pcs/min)
Cardboard size
140*120-1000*600mm
Cardboard thickness
0.8-4mm
Motor power
2Kw/380v
Machine dimension
L2050*W1320*H1350mm
Machine weight
1250kg
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 2

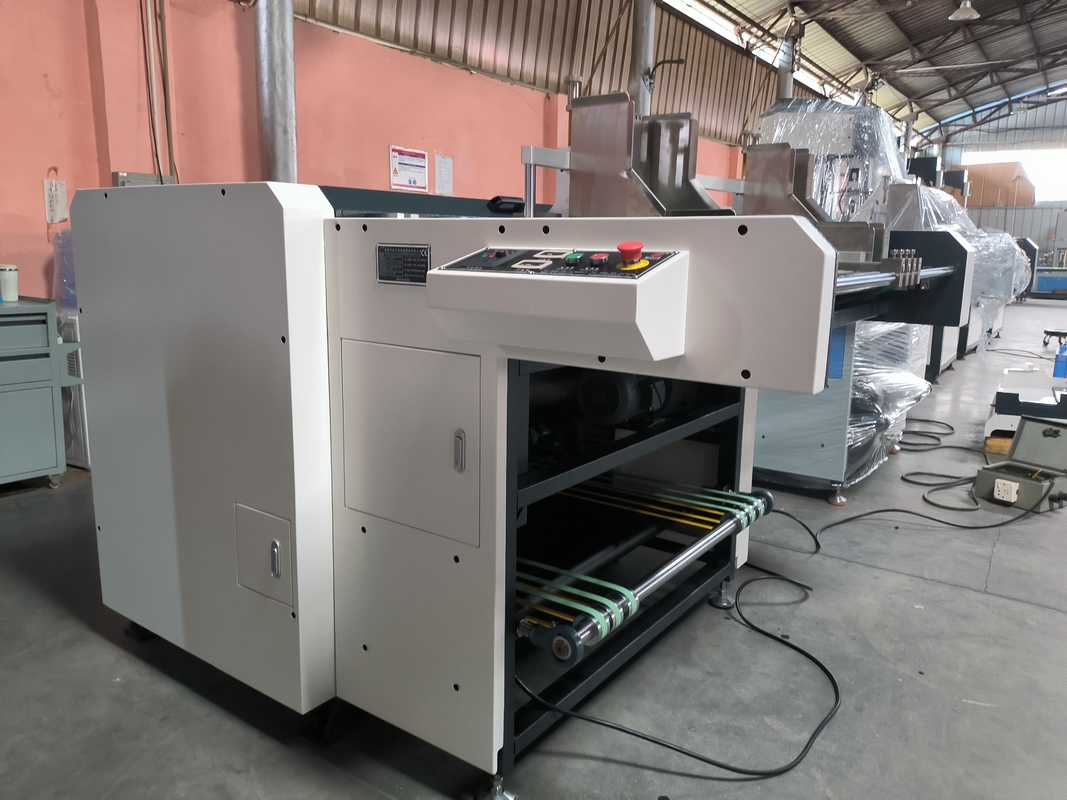

1. Control table

Including power button , emergency stop, counter and speed adjuster.
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 3

2.Double cardboard feeding device

Finished two direction grooving in one machine at same time
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 4

3. Double alligning system

Ensured feeding the cardboard stable to the feeding area.
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 5



4. Cardboard pressing belt

Pressing cardboard on the roller

Automatic Cardboard Cutting Machine , Paper V Grooving Machine 6



5. Double line blade seat.

Totally 8 blade seat which is able to installed blade holder.

Automatic Cardboard Cutting Machine , Paper V Grooving Machine 7



6. Grooving angle adjusment.

It can adjust the grooving slots from 80-140 degree.

Automatic Cardboard Cutting Machine , Paper V Grooving Machine 8

7. Upgrade blade holder

Upgrade from ond type, easier for setting. Installed left&right blade here.

Automatic Cardboard Cutting Machine , Paper V Grooving Machine 9



8. Grooving blade.

V-shape grooving blade, including two types. 90 degree and 120 degree blades.

Automatic Cardboard Cutting Machine , Paper V Grooving Machine 10



9. Waste cleaning conveyor.

Remove corner waste and slots waste out from the finished products.

Standard configurations
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 11



90 degree blade holder
Equipped 4 sets 90 degree blade holder. It can be clarify by the square shape.
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 12



120 degree blade holder
Equipped 4 sets 120 degree blade holder, including blade. It can be clarify by the rectangular shape.
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 13



Grinding machine
One set grinding machine, grinding the blade when it gets blunt.
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 14



Collecting table
Collecting cutted cardboard
Working range of LS-1200B
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 15



Cardboard
Thickness at 0.8-4mm. Cardboard is a reproduced material by waste paper. It is cheap and has good quality.
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 16



MDF board
Thickness at 1-3mm.
MDF board is widely applied in the wine box, jewelry box etc. It is reproduced by wood material.
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 17



Thin paper
Thickness at 500-800 gsm
It is thinner than cardboard. Mostly has been laminated processing. This is one time finished product, higher value than cardboard and MDF. Only applied in high value packing.
Working process
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 18

1. Cardboard split to require size

Cutting the cardboard to require size by die cutting machine or cardboard spliting machine
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 19

2. Half cut on the B side

Half cutting by die cutting machine. Ensure the four corner will be removed easily after grooving.
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 20

3. First cardboard feeding

Feeding the cardboard, A side at upside.
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 21

4. Second cardboard feeding

Change direction, feeding the cardboard, A side at upside.
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 22

5. Finished products

After finished grooving, the corner waste and v-slots waste will be removed when it passing the waste cleaning conveyor.
Grooved products and die cutting products
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 23

Grooved cardboard& Die cutted cardboard


Automatic Cardboard Cutting Machine , Paper V Grooving Machine 24

Die cutted box & Grooved box


Machine installation
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 25
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 26
Expo with customers
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 27
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 28
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 29
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 30
Certification
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 31
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 32
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 33
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 34
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 35
Company Profile



Dongguan Longxingjian Intelligent Equipment Co.,Ltd



We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.

We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.



Automatic Cardboard Cutting Machine , Paper V Grooving Machine 36
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 37
Packaging&Delivery
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 38
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 39
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 40
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 41
Our Service
Automatic Cardboard Cutting Machine , Paper V Grooving Machine 42



Pre-sale service.

* Inquiry and consulting support.

* Sample testing support.

* Factory visit.

* Order confirmation.



Automatic Cardboard Cutting Machine , Paper V Grooving Machine 43



After-sale service.

* Machine installation and training in customer factory.

* Engineers available to service machinery overseas.

* On-line technology support.

* Free machine parts replacement during warranty.

* Whole life of machine service.



FAQ

1.What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).

2.Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .

3.What is the production time while placing order?---- Within 7-30 workdays.

4.Do you have stock product to sell?----Normally we do,it depends on which models you inquired .

5.What is your lead time?----Within 5-30 workdays ,we will arrange your order upon receiving your 30% deposit on order and ship out the machine before receiving your 70% remaining payment.

6.Can LXS company handle shipping for customers?----Yes.(Please provide us your requested sea port and we can check the shipping cost from logistic company and arrange shipping for you.

7.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
