Product Details:
|
| Product Name: | Automatic Strapping Machine Rigid Box Making Machine Cardboard Box Making Machine | Paper Length Size: | 120-550mm |
|---|---|---|---|
| Paper Width Size: | 70-450mm | Cardboard Length Size: | 80-550mm |
| Cardboard Width Size: | 70-400mm | Max Box Length: | 350*150*100mm |
| Min Box Width: | 50*50*12mm | Working Speed: | 20-40pcs/min |
| Highlight: | Automatic Strapping Cardboard Box Maker,CE Rigid Box Making Machine,40pcs/min Cardboard Box Making Machine |
||

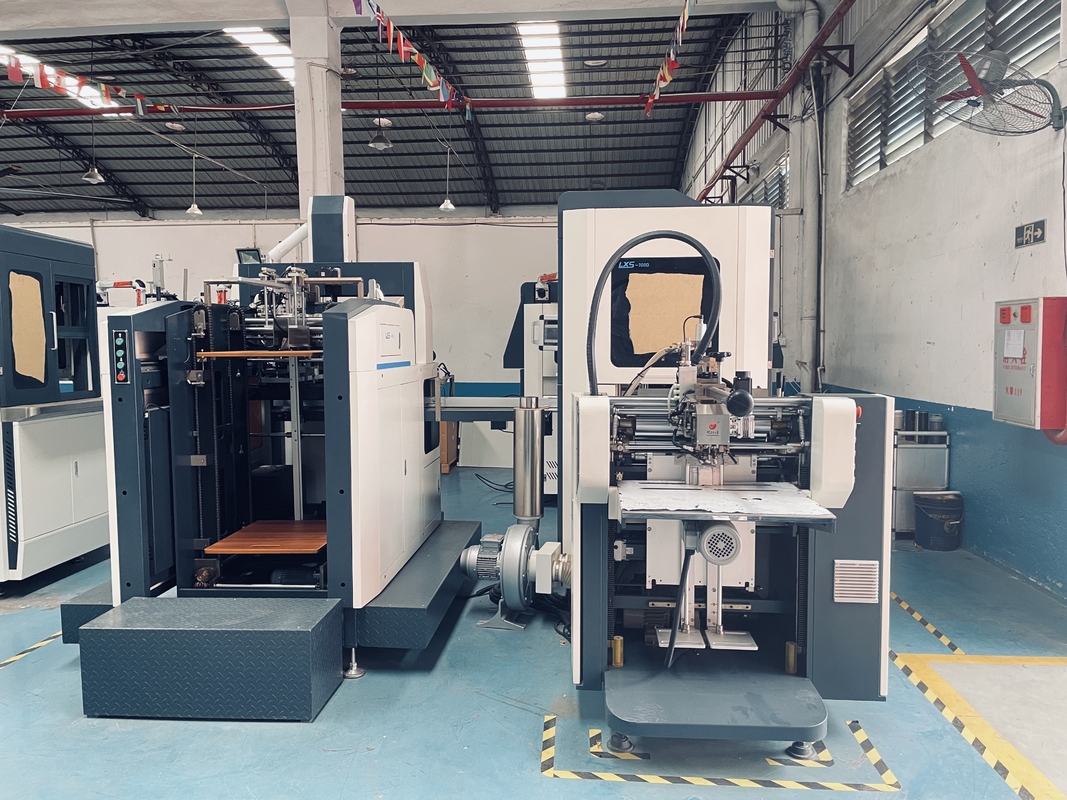

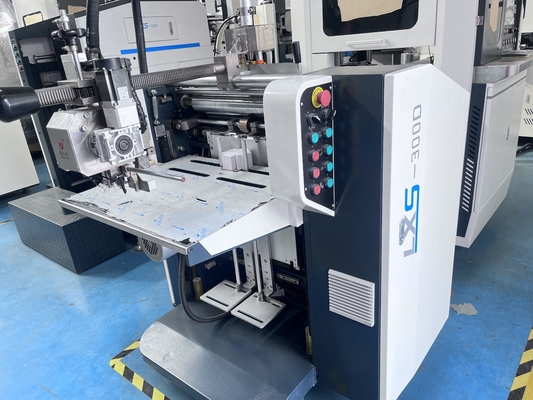

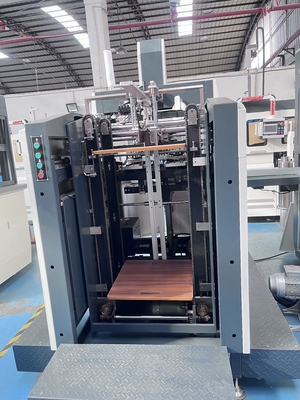

LS-300D Autoamtic smart rigid box making machine is an ideal machine for customer who has big orders. It has 4 main steps: including the box corner pasting, paper feeding and gluing, box positioning, box forming.
LS-300D Autoamtic smart rigid box making machine has applied visual positioning for easy and high accurate positioning. Automatic setting in the forming station make the whole machine setting time reduce grealty. Whole line setting time in 45-60 minutes. Dual forming setting station make it can reach higher speed. Max speed can reach 40 pcs/min. So that can meet different order quantity request. What`s more, it has a smallest size working range. Min box size is 50*50*10mm. it can help you gain more orders with this smart setting machine.

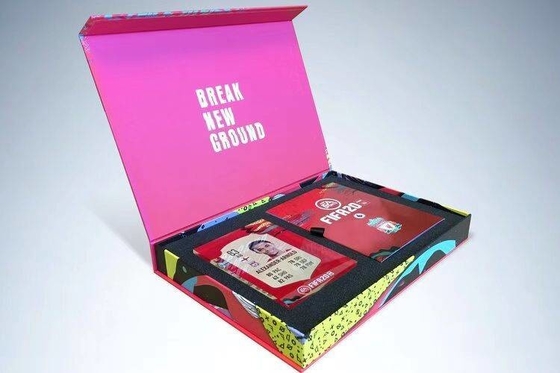

The LS-300D is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box ,playing cards and puzzles prodcution.
| Type | LS-300D |
| Paper size(max) | L550*W450mm |
| paper size(min) | L120*W70mm |
| Max cardboard size | L550*W400mm |
| Min cardboard size | L80*W70mm |
| Box size(length) | L50-350mm |
| Box size(width) | W50-250mm |
| Box size(height) | H12-100mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-40 pcs/min |
| Motor power | 16kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3600kg |
| Machine dimension | L6400*W4000*H3000mm |
