Product Details:
|
| Product Name: | Rigid Box Packaging Machine Gift Box, Kraft Cover Top Bottom Rigid Box & Luxury Making Machine | Max Box Length: | 350*150*120 Mm |
|---|---|---|---|
| Min Box Width: | 50*50*15 Mm | Paper Length Size: | 100-550 Mm |
| Paper Width Size: | 70-460 Mm | Cardboard Length Size: | 80-560mm |
| Cardboard Width Size: | 80-400 Mm | Working Speed: | 20-40 Pcs/min |
| Highlight: | 550mm Rigid Box Making Machine,45pcs/min Rigid Box Making Machine,Rigid Cardboard Box Maker |
||

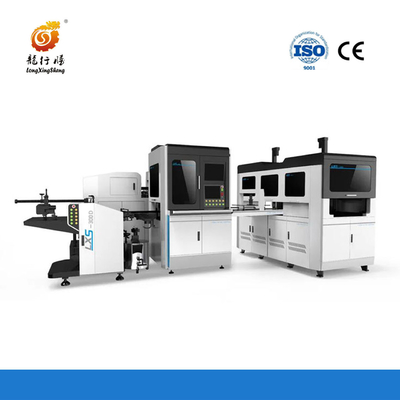

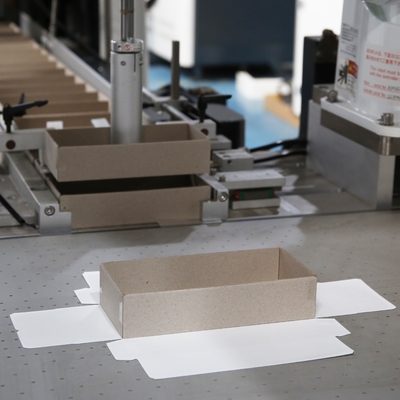

LS-300D Autoamtic smart rigid box making machine is an ideal machine for customer who has big orders. It has 4 main steps: including the box corner pasting, paper feeding and gluing, box positioning, box forming.
LS-300D Autoamtic smart rigid box making machine adopts visual positioning, which is simple and accurate in positioning. The automatic setting of the forming station greatly reduces the setting time of the whole machine. The solidification time of the whole line is 45-60 minutes. Dual molding setup stations make it possible to reach higher speeds. The highest speed can reach 40 pieces/min. This can meet different order quantity requirements. What's more, it has the smallest size working range. The minimum box size is 50*50*10mm. It can help you get more orders with this smart styler.

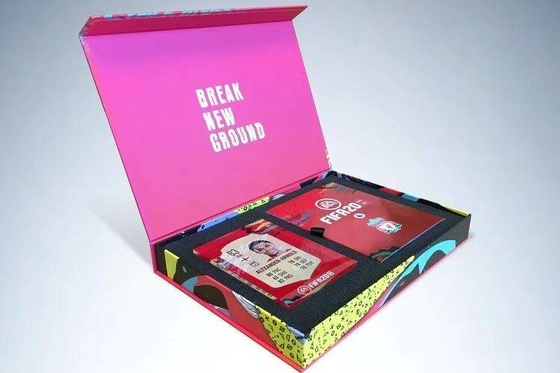

The LS-300D is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box ,playing cards and puzzles prodcution.
| Type | LS-300D |
| Paper size(max) | L550*W450mm |
| paper size(min) | L120*W70mm |
| Max cardboard size | L550*W400mm |
| Min cardboard size | L80*W70mm |
| Box size(length) | L50-350mm |
| Box size(width) | W50-250mm |
| Box size(height) | H12-100mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-40 pcs/min |
| Motor power | 16kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3600kg |
| Machine dimension | L6400*W4000*H3000mm |
