Product Details:
|
| Products Name: | Automatic Smart Packaging Match Paper Box Making Machine Cardboard Box Maker Dealers | Max Cardboard Size: | L750*W550mm |
|---|---|---|---|
| Min Cardboard Size: | L120*W100mm | Box Length: | 80-600 Mm |
| Box Width: | 65-400 Mm | Box Height: | 15-150mm |
| Working Speed: | 15-25 Pcs/min | Paper Thickness: | 80-350gsm |
| Highlight: | 80gsm Paper Box Making Machine,350gsm Paper Box Making Machine,Automatic Cardboard Box Maker |
||

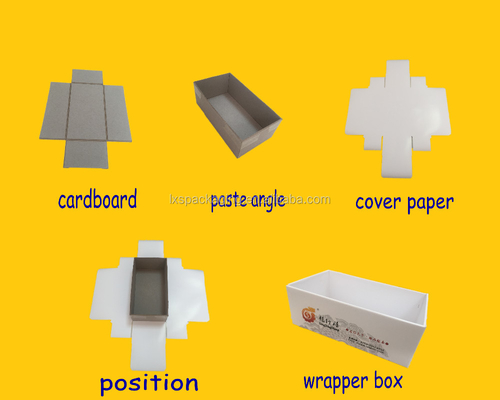

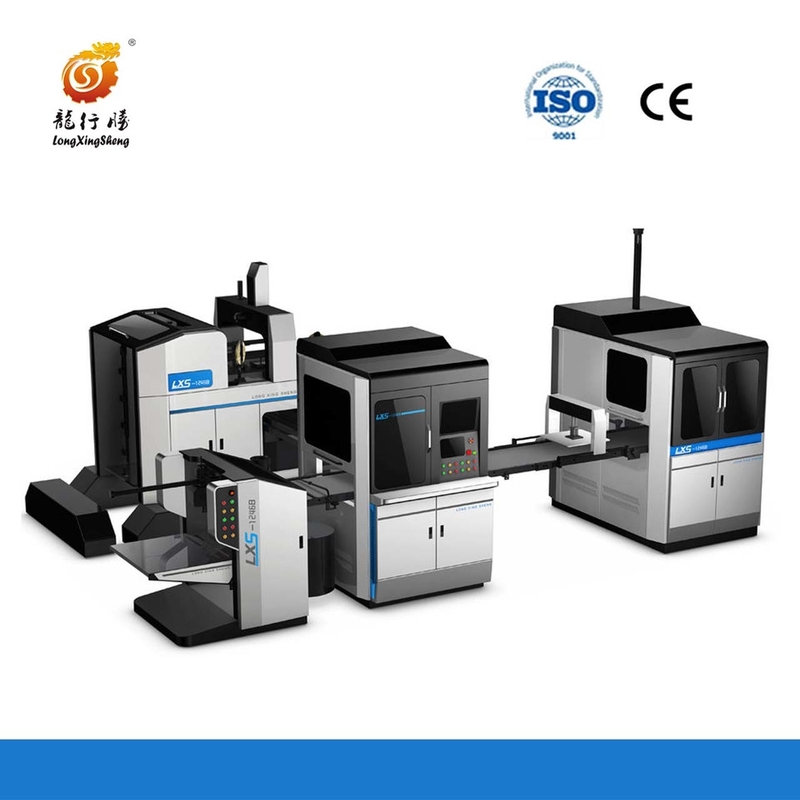

LS-1246B intelligent automatic box making machine is a large box automatic production equipment integrating gluing, positioning, forming and corner turning.
What's more, it has a wide working range. The maximum case length is 600mm, the maximum case height is 400mm, and the maximum case height is 120mm, this smart setting machine can help you get more orders.
This machine has applied visual positioning for easy and high accurate positioning. Automatic setting in the forming station make the whole machine setting time reduce grealty. Whole line setting time in 30-45 minutes. So that can meet different order quantity request.
The LS-1246B is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box Daily necessities packaging facial cleanser, electric toothbrush prodcution.
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: Short in 45 minutesINSTALLATION SERVICES
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
Contact Person: Ms. Lyla Lyu
Tel: +86 13829162915
