Product Details:
|
| Name: | Craft Tape Four Corner Pasting Machine 75pcs/Min For Rigid Phone Box Tea Box Coffee Clothes Box | Colour: | White |
|---|---|---|---|
| Type: | Multi-Function Wripping Machine | Warranty: | 1 Year |
| Working Speed: | <75 Pcs/min | Driven Type: | Electric |
| Dimension(L*W*H):: | L1650*W1300*H1950mm | Weight Of Machine: | 930kg |
| Automatic Grade: | Semi Automatic | ||
| Highlight: | Craft Tape Corner Pasting Machine,75pcs/Min Corner Pasting Machine,Rigid Phone Box Corner Pasting Machine |
||
Craft Tape Four Corner Pasting Machine 75pcs/Min For Rigid Phone Box Tea Box Coffee Box & Clothes box
Introduction:

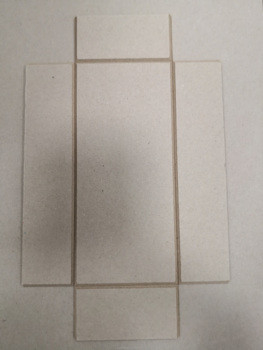

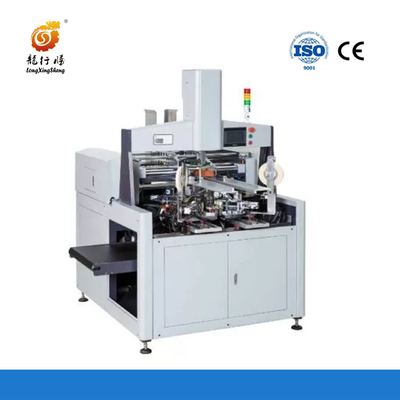

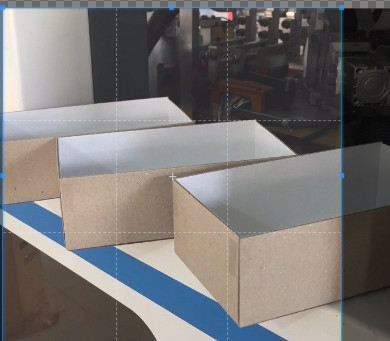

LS-T430 automatic corner pasting machine is suitable for pasting the four corners of die-cut cardboard and V-groove cardboard. This machine adopts the belt feeding method to transport the core plate to the punching area. Shorten the feeding distance and increase the working speed. It works with washi tape, plastic tape, and kraft paper tape. The maximum working speed is 75 pcs/min. It can paste ordinary hard boxes and beveled boxes, and high boxes can be pasted twice. The overall size is 1650*1300*1960mm. Small size, easy to move. Suitable for use in combination with semi-automatic rigid box production lines.
| Type | LS-T430 |
| Box size (Max) | L600*W400*H120mm |
| Box size (Min) | L80*W65*H15mm |
| Max cardboard size | L700*W500mm |
| Min cardboard size | L100*W80mm |
| Working speed | <75 pcs/min |
| Motor power / voltage | 2kw/380V |
| Air supply | 10L/min 0.6Mpa |
| Machine dimension | L1650*W1300*H1960mm |
| Weight of machine | 920kg |
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
Company Introduction
Longxingjian Intelligent Equipment Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province. We have independent R&D department which is led by Tsinghua University Doctor. Up to now, We have got more than 10 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 10 years. Grooving machine series and rigid box forming series are our main products.
We have built good and long-term cooperation with several world-famous companies. Our market has been expanded to all over the world.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
