Multifunctional Craft Tape Four Corner Pasting Machine 75pcs/Min

Craft Tape Four Corner Pasting Machine 75pcs/Min For Rigid Phone Box Tea Box Coffee Box & Clothes box

Introduction:

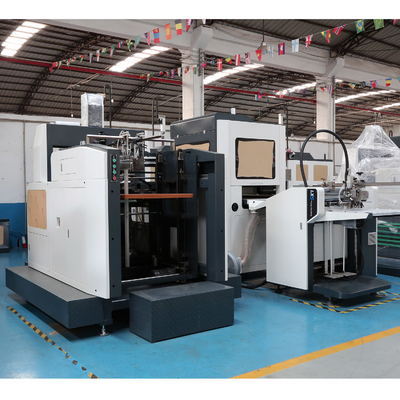

LS-T430 automatic corner pasting machine is suitable for pasting the four corners of die-cut cardboard and V-groove cardboard. This machine adopts the belt feeding method to transport the core plate to the punching area. Shorten the feeding distance and increase the working speed. It works with washi tape, plastic tape, and kraft paper tape. The maximum working speed is 75 pcs/min. It can paste ordinary hard boxes and beveled boxes, and high boxes can be pasted twice. The overall size is 1650*1300*1960mm. Small size, easy to move. Suitable for use in combination with semi-automatic rigid box production lines.

Suitable all kinds of hardcover gift box, shoe box, underwear box, shirt box, mobile phone box, etc





Advantages:

• Stable

Double guiding system, running stably

Non-Stop paper feeding and the anti gluing system

Integration tape feeding device, avoid tape blocking

• High speed

Applied slant gear to drive the mold, the max working speed is 75 pcs/min

• Working range

Normal rigid box

Slant side box - No need modification, just need setting paste twice.

High box- Pasting twice for high box.





Specifications of LS-T430:

Type	LS-T430
Box size (Max)	L600*W400*H120mm
Box size (Min)	L80*W65*H15mm
Max cardboard size	L700*W500mm
Min cardboard size	L100*W80mm
Working speed	<70 pcs/min
Motor power / voltage	2kw/380V
Air supply	10L/min 0.6Mpa
Machine dimension	L1650*W1300*H1960mm
Weight of machine	920kg





















































Our service:



Pre-sale service:

* Inquiry and consulting support.
* Sample testing support.
* Factory visit.

* Order confirmation



After-sale service:

* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.


INSTALLATION SERVICES

Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
