Forming Rigid Box Maker For Jewelry Plastic Box / Luxury Box / Tie Case

Rigid Box Forming maker Machine For Jewelry Plastic Box ,Luxury Box ,Tie Case making manufacturer​

Applications:

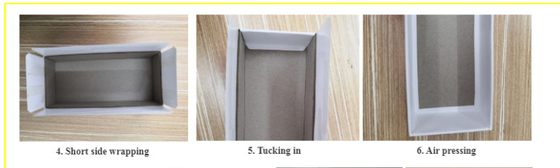

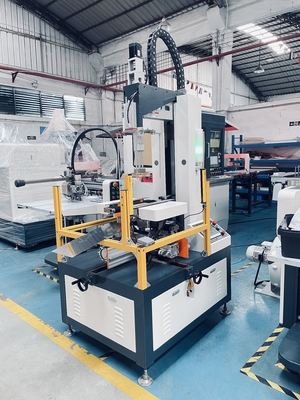

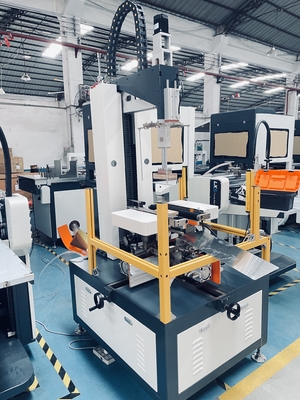

LS-F6 Rigid Box Forming Machine is one of our hot sell product, which use for ranges of rigid boxes making,It can finished side wrapping, edge folding, tucking in and air pressing at one time, which is suitable for all kinds of rigid box wrapping.such as shoes boxes, mobile phone boxes, gift boxes, luxury boxes and so on. It produces 20-30 pcs of box per minute, and also can handle special design boxes, such as the different height boxes & tucking into bottom etc. And this machine have been modified size to make Pandora ring boxes

Shut Down Procedure

1)Retract all cylinders and reset the main shaft to the origin,

2)Turn off the blower;

3)Press the power off button to turn off the power;

4)Turn off the gas source 1

Features:

It has applied Pneumatic and Compressor air to driving the machine running. It is an ideal equipment for customer which has different quantity orders. Especially the customer seeking for higher quality products.It has two edge folding model and four types tucking in model. The shortest time of one box finished is 1.7seconds. The max speed can reach 28 pcs/min to certain boxes.

Type	LS-F6
Max box size	L460*W380*H120mm
Min box size	L80*W65*H10mm
Motor power/voltage	2.5kw/220V
Air supply	10L/min 0.6Mpa
Working speed	≤30pcs/min
Machine dimension	L1220*W960*H2100mm
Weight of machine	920kg













































Company introduction:



Longxingsheng Machinery Co.,Ltd is located in the famous manufacturing city - Dongguan City, Guandong province, China.

We are one of the leading & professional manufacturer of Automatic/Semi-automatic Rigid Box Making Machines & cardboard grooving machine for varies rigid box making, such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes, shoes boxes, watch boxes, mobile phone boxes, etc.



Founded in 2006, our company has its own independent research and development department, led by a Ph.D. from Tsinghua University. So far, we have obtained more than 10 patents including utility patents, appearance patents, and technical patents. With years of experience in R&D, manufacturing and sales of post-press machinery, our products are sold all over the world, especially in Europe. , Asia, Middle East and America.



We are much appreciated & treasure our customers' trust & support, and we will always keeping providing high quality products & good after-sales service to you !
