Product Details:
|
| Product Name: | Automatic Rigid Box Making Machine For Jewelry Gem Bijou Box Necklace Ring Bracelet Box | Max Paper Size: | L550*W450mm |
|---|---|---|---|
| Min Paper Size: | L120*W70mm | Max Cardboard Size: | L550*W400mm |
| Min Cardboard Size: | L80*W70mm | Box Length: | 50-350mm |
| Box Width: | 50-250mm | Box Height: | 12-100mm |
| Working Speed: | 15-40 Pcs/min | ||
| Highlight: | 250mm Rigid Box Making Machine,Gem Rigid Box Making Machine,Bijou Packaging Box Making Machine |
||

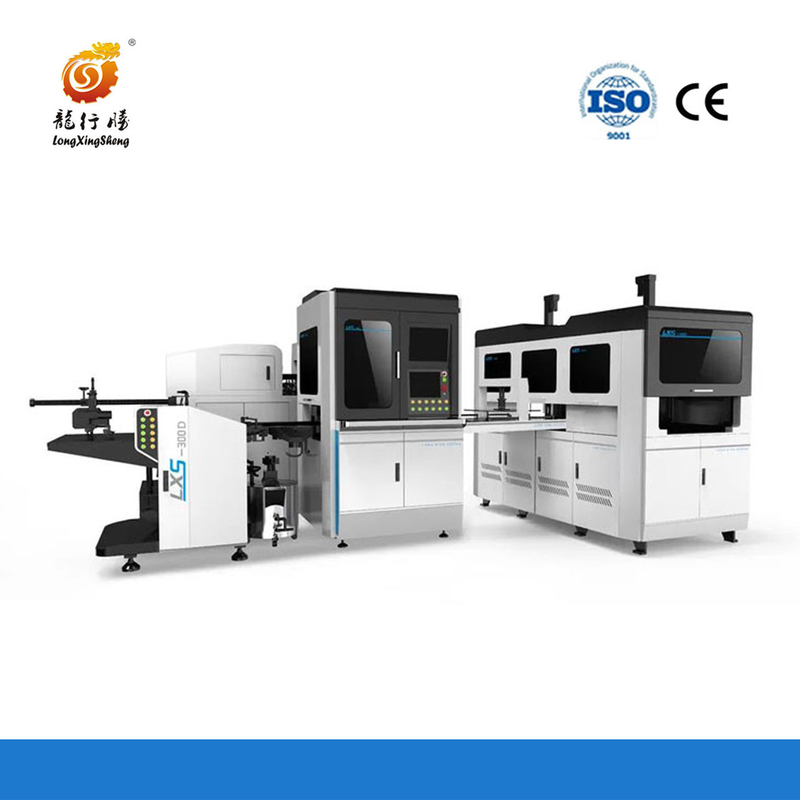

LS-300D Autoamtic high-speed intelligent world box making machine is an ideal machine for customers with large orders. It includes box corner pasting, paper bonding, box positioning, box packing and pressing once.
This machine adopts visual positioning, simple positioning and high precision. The automatic setting of the forming station greatly reduces the setting time of the whole machine. The solidification time of the whole line is 45-60 minutes. Dual molding setup stations make it possible to reach higher speeds. The highest speed can reach 40 pieces/minute. This can meet different order quantity requirements. What's more, it has the smallest size working range. The minimum box size is 50*50*10mm. It can help you get more orders with this smart styler.
| Type | LS-300D |
| Paper size(max) | L550*W450mm |
| paper size(min) | L120*W70mm |
| Max cardboard size | L550*W400mm |
| Min cardboard size | L80*W70mm |
| Box size(length) | L50-350mm |
| Box size(width) | W50-250mm |
| Box size(height) | H12-100mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-40 pcs/min |
| Motor power | 16kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3600kg |
| Machine dimension | L6400*W4000*H3000mm |
