Product Details:
|
| Product Name: | Multi-Function Packaging Machine For Paper Box Packing & Hard Cover & Cellphone Box | Type: | Multi-Function Packaging Machine |
|---|---|---|---|
| Working Speed: | 15-35pcs/min | Application: | Box Positioning And Paper Gluing |
| Dimension(L*W*H):: | L5980*W3185*H2104 | Weight Of Machine: | 2141kg |
| Highlight: | Box Positioning Multi Function Packaging Machine,Paper Gluing Multi Function Packaging Machine,35pcs/min Packaging Box Making Machine |
||

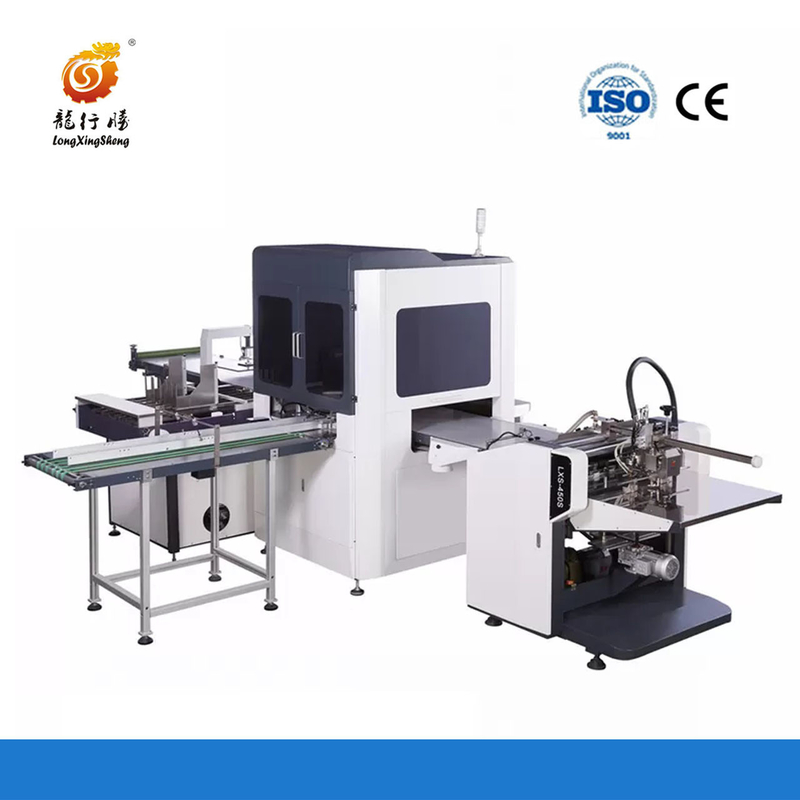

Multi-Function Box Packaging Positioning Machine For Paper Box Packing & Book Cover & Cellphone Box
Introduction:
LS-450plus is a multi-function visual positioning machine. It is able to positioning the rigid box and hardcover. also can do paper lining, one machine with many functions, and the working model is able to be changed by one button. It has higher flexibility feeder ,anti leaking & visual
positioning (including:YAMAHA robotic arm & two HD camera)
Equipped with dual cameras, the cameras are located on both sides of the central position of the conveyor belt. The camera position has been calibrated before leaving the factory. If there is any deviation, you can adjust the camera position by adjusting the upper camera "mounting plate". After the camera takes a picture, the system recognizes the color difference of the photo for positioning. If the surface paper and the surface paper conveyor belt are similar in color, it can be solved by changing the belt color.
6. Panasonic Servo motor feeding system..
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
