Product Details:
|
| Products Name: | Automatic Smart Packaging Rigid Jewelry Box Making Machine Cardboard Box Wrapping System | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Box Length: | 80-600mm |
| Box Width: | 65-400mm | Box Height: | 15-120mm |
| Paper Thickness: | 80-350gsm | Heating Power: | 8Kw |
| Highlight: | Rigid Box Making Machine 80gsm,Cardboard Wrapping Rigid Box Making Machine,15mm Packaging Box Making Machine |
||

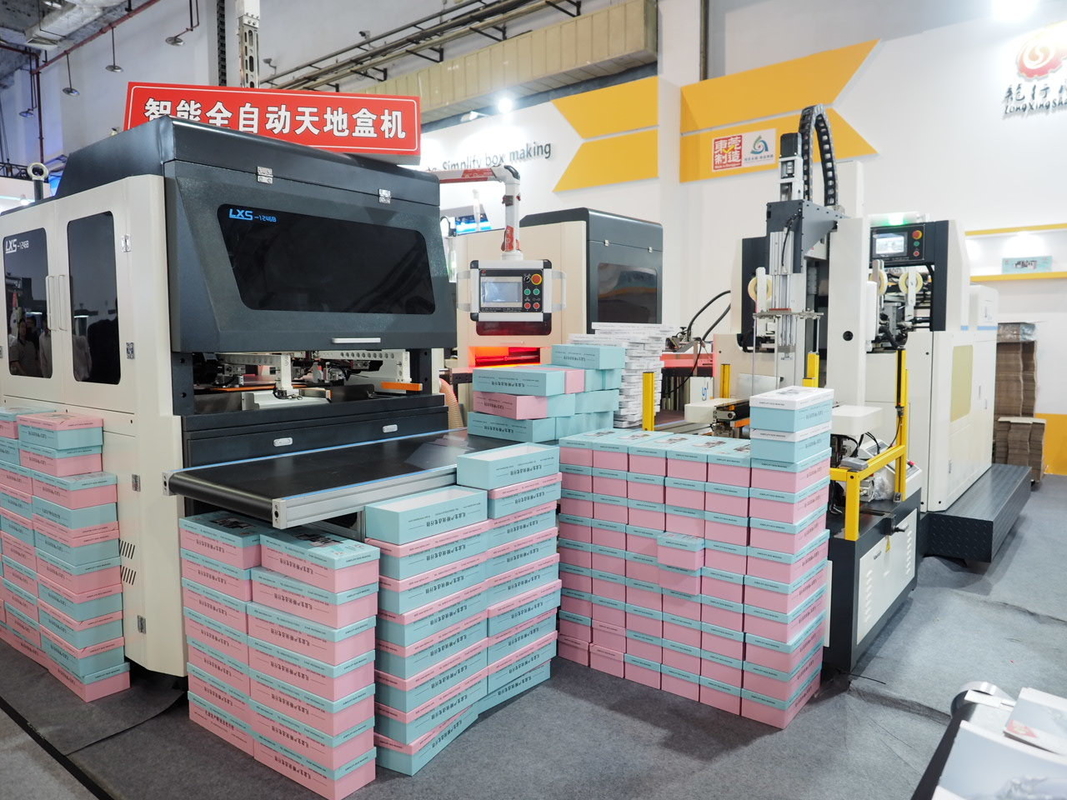

LS-1246B Automatic smart rigid box making machine is an ideal machine for customer who has changable orders. It including the box corner pasting, paper feeding&gluing, box feeding&positioning, box wraping and air pressing at one time.
About 500mm high tissue paper can be stacked on the cardboard stacking table to minimize the time of downtime and feeding. When loading paper, you need to adjust the position of each part of the mechanism according to the size of the paper.
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: Short in 45 minutesWe have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
