Product Details:
|
| Products Name: | Automatic Smart Rigid Box Making Machine Cardboard Box Wrapping & Package System | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Box Length: | 80-600mm |
| Box Width: | 65-400mm | Box Height: | 15-120mm |
| Paper Thickness: | 80-350gsm | Heating Power: | 8 Kw |
| Highlight: | Servo Motor Rigid Box Making Machine,Rigid Box Making Machine 65mm,Packaging Box Making Machine 120mm |
||

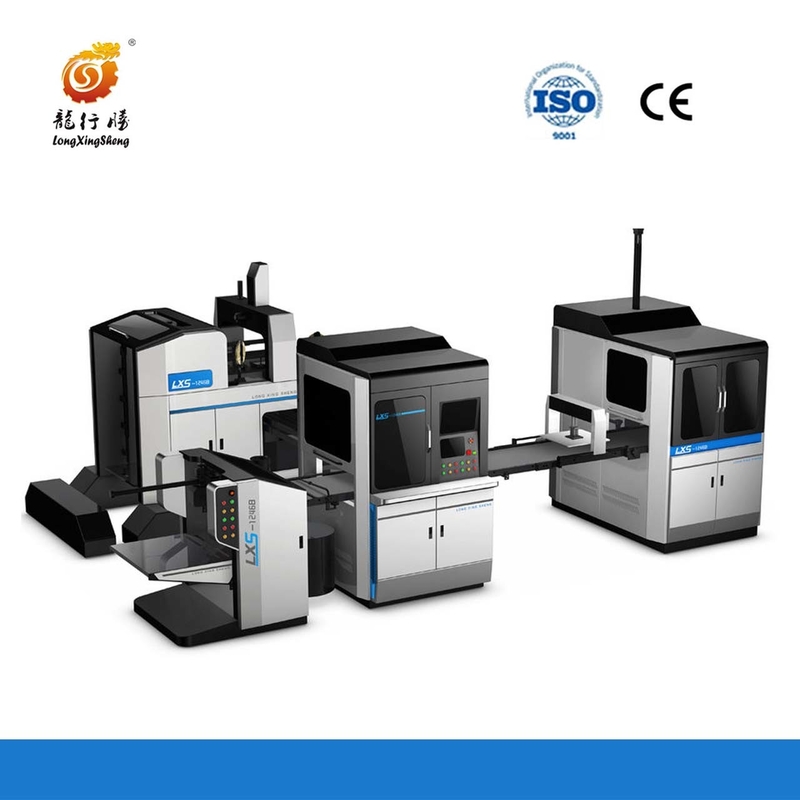

LS-1246B fully automatic intelligent world box making machine is an ideal machine for customers with changing orders. Complete the process of sticking the corner of the box, feeding paper and gluing, positioning the box, wrapping the box, and air pressure at one time.
Thin paper about 500mm high can be stacked on the cardboard stacking table, minimizing downtime and paper feeding time. When loading paper, it is necessary to adjust the position of each part of the mechanism according to the size of the paper.
The console board can be moved up and down with the buttons on the right side of the table (see buttons section for details)
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: Short in 45 minutesOur company was established on 2006-01-26. The company's address is located in Room 102, Building 2, No. 3, Chuangye Road, Bajiaowo, Wanjiang Street, Dongguan City, Guangdong Province.
