Product Details:
|
| Products Name: | Automatic Smart Packaging Rigid Jewelry Box Making Machine Cardboard Box Wrapping System | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Box Length: | 80-600mm |
| Box Width: | 65-400mm | Box Height: | 15-120mm |
| Paper Thickness: | 80-350gsm | Heating Power: | 8 Kw |
| Highlight: | Smart Packaging Rigid Box Making Machine,80gsm Rigid Box Making Machine,Packaging Box Making Machine 8kw |
||

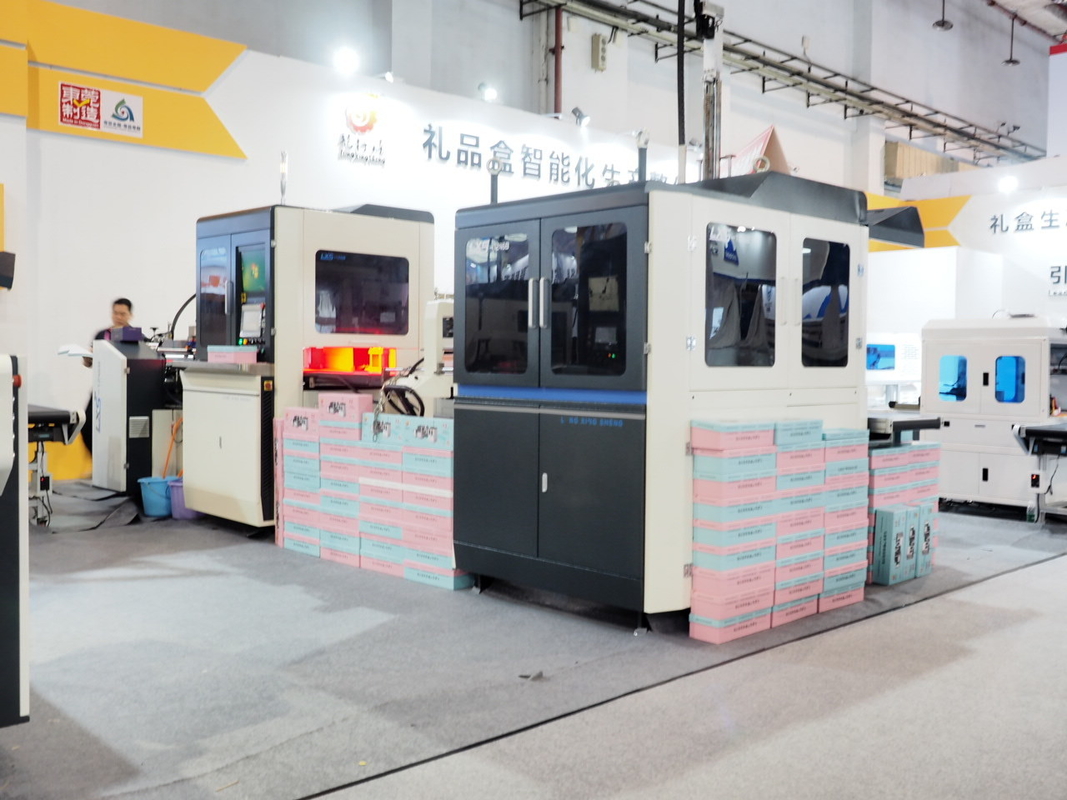

LS-1246B Automatic smart rigid box making machine is an ideal machine for customer who has changable orders. It including the box corner pasting, paper feeding&gluing, box feeding&positioning, box wraping and air pressing at one time.
About 500mm high tissue paper can be stacked on the cardboard stacking table to minimize the time of downtime and feeding. When loading paper, you need to adjust the position of each part of the mechanism according to the size of the paper.
The console board can be moved up and down through the buttons on the right side of the table (see the button section for details)
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
1.Paper loading part: Double feeding platform by separated control
2.Corner pasting part: non-stop cardboard stacking device, uses-friendly.
3.computer control: Servo control digital quick size adjustment
4.Forming system: no need to change tuck in blade and air pressing plate.
5.Paper feeding part: Servo-driven cam feeder effectively avoids double paper feeding.
6.Box positioning system: big size range positioning, various in application, single mode running available
7.Gluing system:: Integrated gluing guide groove, easy to clean
8.Box holding part: lift-up box holding mechanism to prevent the bottom of the box from being scratched.
9.Visual positioning part:Using double cameras to operate independently, high speed and clear photo taking.
Machine setting time: Short in 45 minutesWe have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation,since the trend of economic globalization has developed with anirresistible force.Welcome to communicate and negotiate at any time.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
