Product Details:
|
| Products Name: | Automatic Intelligent Packaging Rigid Box Making Machine For Cardboard Box Wrapping Factory | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Box Length: | 80-600mm |
| Box Width: | 65-400mm | Box Height: | 15-120mm |
| Paper Thickness: | 80-350gsm | Heating Power: | 8 Kw |
| Highlight: | Intelligent Packaging Rigid Box Making Machine,350gsm Rigid Box Making Machine,600mm Packaging Box Making Machine |
||

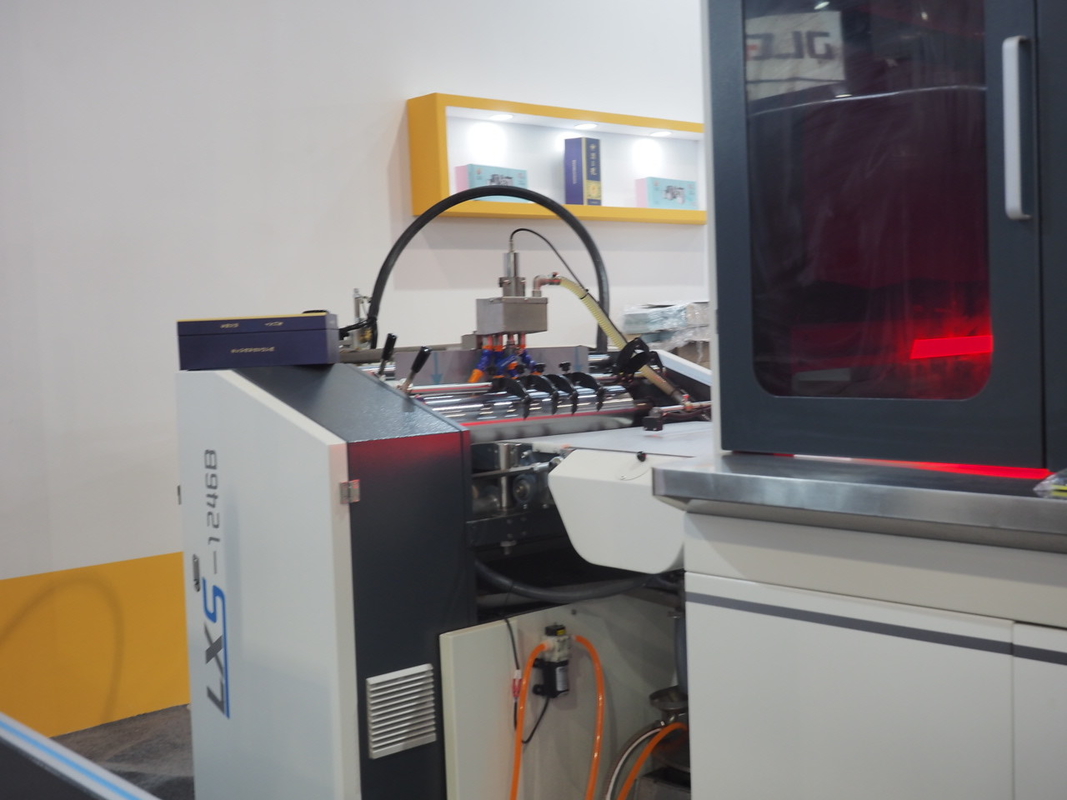

LS-1246B Automatic smart rigid box making machine is an ideal machine for customer who has changable orders. It including the box corner pasting, paper feeding&gluing, box feeding&positioning, box wraping and air pressing at one time.
About 500mm high tissue paper can be stacked on the cardboard stacking table to minimize the time of downtime and feeding. When loading paper, you need to adjust the position of each part of the mechanism according to the size of the paper.
The console board can be moved up and down through the buttons on the right side of the table (see the button section for details)
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
1.Paper loading part: Double feeding platform by separated control
Feeding system:Automatic cycle feeding by feeder/Belt adjustment system: non-stop belt adjustment

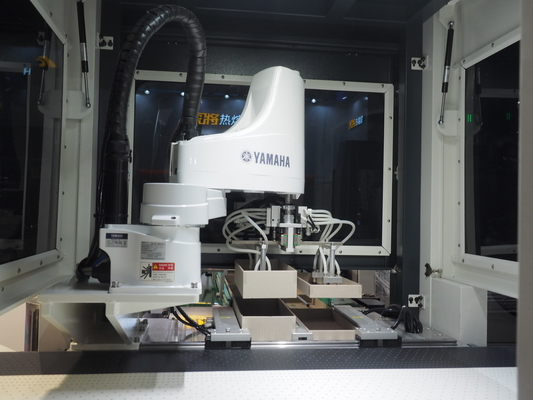

2.Corner pasting part: non-stop cardboard stacking device, uses-friendly.
3.computer control: Servo control digital quick size adjustment
4.Forming system: no need to change tuck in blade and air pressing plate.
5.Paper feeding part: Servo-driven cam feeder effectively avoids double paper feeding.
6.Box positioning system: big size range positioning, various in application, single mode running available
7.Gluing system:: Integrated gluing guide groove, easy to clean
8.Box holding part: lift-up box holding mechanism to prevent the bottom of the box from being scratched.
9.Visual positioning part:Using double cameras to operate independently, high speed and clear photo taking.
Machine setting time: Short in 45 minutesWe have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
