Product Details:
|
| Products Name: | Automatic High Speed Rigid Box Making Machine For Cardboard Box Wrapping Box Makers & Box Manufacturers | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Box Length: | 80-600mm |
| Box Width: | 65-400mm | Box Height: | 15-120mm |
| Paper Thickness: | 80-350gsm | Heating Power: | 8Kw |
| Highlight: | ISO9001 Rigid Box Making Machine,Cardboard Rigid Box Making Machine,350gsm Packaging Box Making Machine |
||

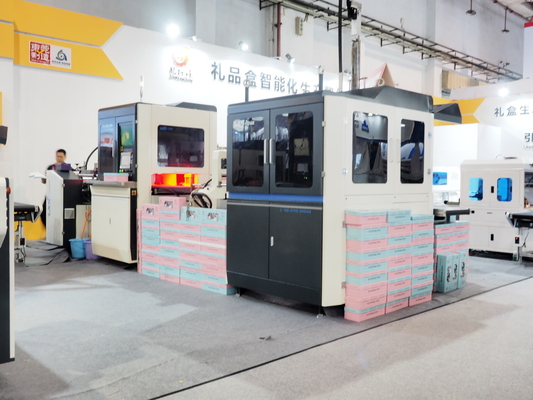

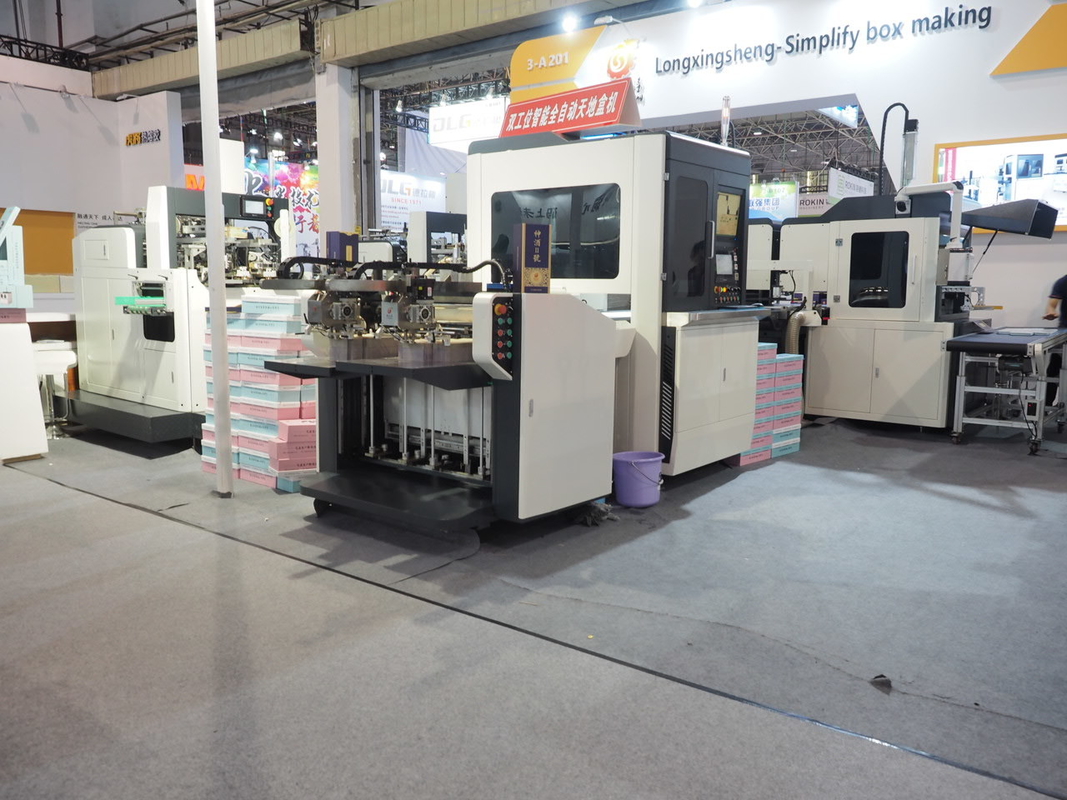

1.LS-1246B Automatic smart rigid box making machine is an ideal machine for customer who has changable orders. It including the box corner pasting, paper feeding&gluing, box feeding&positioning, box wraping and air pressing at one time.
2.The paper feeding table can stack paper about five meters high, minimizing machine stop time and paper feeding time. When loading paper, you need to adjust the distribution of the whole machine according to the size of the paper.
3.The console board can be moved up and down by the button on the right side of the table, there are automatic mode and manual mode, the operation is simple and efficient (see the button section for details)
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
1.Paper loading part: Double feeding platform by separated control
2.Corner pasting part: Non-stop cardboard stacking device, uses-friendly.
3.computer control: Servo control digital quick size adjustment
4.Forming system: No need to change tuck in blade and air pressing plate.
5.Paper feeding part: Servo-driven cam feeder effectively avoids double paper feeding.
6.Box positioning system: Big size range positioning, various in application, single mode running available
7.Gluing system:: Integrated gluing guide groove, easy to clean
8.Box holding part: lift-up box holding mechanism to prevent the bottom of the box from being scratched.
9.Visual positioning part: Dual cameras are used to operate independently. If the size of the box needs to be changed, the camera does not need to be moved, only the parameters need to be set. The camera works simply and efficiently, and the shots are fast and clear.
Machine setting time: Short in 45 minutesWe have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
