Product Details:
|
| Product Name: | Bi-Channel Intelligent Fully Automatic Rigid Box Making Machine For Cardboard Box Top & Bottom Making | Box Size(max): | L400*W300*H100mm |
|---|---|---|---|
| Box Size(min): | L80*W60*H15mm | Paper Size(max): | L550*W450mm |
| Paper Size(min): | L130xW120mm | Max Cardboard Size: | L580xW380mm |
| Min Cardboard Size: | L110xW90mm | Air Pressure: | 40L/min |
| Machine Dimension: | L6600xW6250xH2800mm |

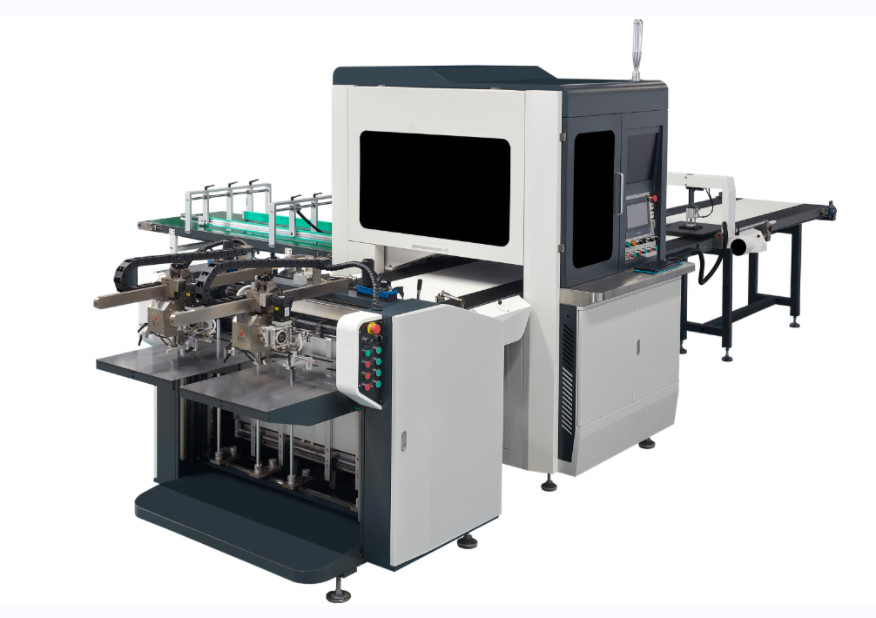

Bi-Channel Intelligent Fully Automatic Rigid Box & Hardcover Visaul Positioning Paper Gluing Machine
Machine Introduction:
LS-900C is a double-positioning fully intelligent automatic box visaul positioning paper gluing machine with high speed and high efficiency, and can poaitinning the top and bottom of the box at the same time. Besides it can also positining double hardcovers at the same time.The machine can make 15-25 pairs of boxes in one minute. The machine has two main parts: double feeder and leaking gluing system, box vision positioning station
production flows:
1. Paper loading part: Double feeding platform by separated control
2. Feeding system:Automatic cycle feeding by feeder
3. Belt adjustment system: non-stop belt adjustment
4. Gluing system:: Integrated gluing guide groove, easy to clean
5. Paper feeding part: Servo-driven cam feeder effectively avoids double paper feeding.
6.computer control: Servo control digital quick size adjustment
8. Box positioning system: big size range positioning, various in application, single mode running available.
Second pressing to make the bottom of the box stick better
Adopt black and white belt for more color application
Robotic arm: High accuracy ± 0.1mm
Using double cameras to operate independently, high speed and clear photo taking.
| Type | LS-900A |
| Paper size(max) | L650xW400mm |
| Paper size(min) | L130xW120mm |
| Max cardboard size | L580xW380mm |
| Min cardboard size | L110xW90mm |
| Box size(Length) | L80-400mm |
| Box size(Width) | W60-300mm |
| Box size(Height) | H15-100mm |
| Working speed | 12-25(Pair)/min |
| Paper thickness | 100-350g/m2 |
| Paper stacking height | 540mm/100KG |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Motor power | 25kw/380V 3phase |
| Machine weight | 8kw |
| Air pressure | 40L/min |
| Machine dimension | L6600xW6250xH2800mm |
| Weight of machine | 6600kg |
1.Installation Services
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
Matters needing attention in daily management of rigid box forming machine
1.choose the right operator.
For important machinery or newly purchased machinery, employees with good ideological quality, sensitive minds and certain production experience should be selected to operate.
2. the second is to inspect and assess the machinery.
In daily production, it is necessary to pay attention to the necessary inspection and assessment of the use and maintenance of machinery, and it must be included in the track linked to the economy. Appropriate rewards should be given to employees who use machinery well. For those who do not do well or have abnormal damage, due economic punishment can be given to effectively restrict.
3. Then analyze the causes of mechanical accidents.
Mechanical accidents are common in production, and mechanical accidents can be divided into normal accidents and abnormal accidents.
4. The last is to formulate a maintenance plan for the machinery.
Large and medium-sized machinery and important machinery in production must carry out necessary maintenance in a timely manner. This is an important management measure to improve the service life of machinery and ensure production efficiency and product quality.
The maintenance plan of machinery is mainly to formulate major and medium repair plans according to the use of the machinery, to determine the content of mechanical maintenance, and to carry out preventive maintenance on some parts of the machinery that are prone to failure. It is required that some parts of the machine should be regularly overhauled, such as worn roller shafts, bearings, gears, corrugated rollers or other key parts, and some hidden parts should be checked to see if the lubrication is in place.
