Product Details:
|
| Products Name: | Automatic High Speed Rigid Box Making Machine For Cardboard Box Wrapping Box Makers & Box Manufacturers | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Box Length: | 80-600mm |
| Box Width: | 65-400mm | Box Height: | 15-120mm |
| Paper Thickness: | 80-350gsm | Heating Power: | 8Kw |

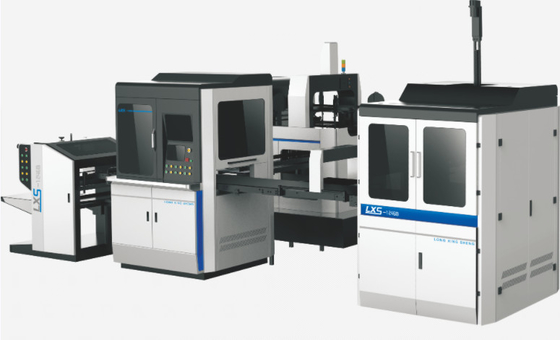

Rigid box making machine -1246B Introduction

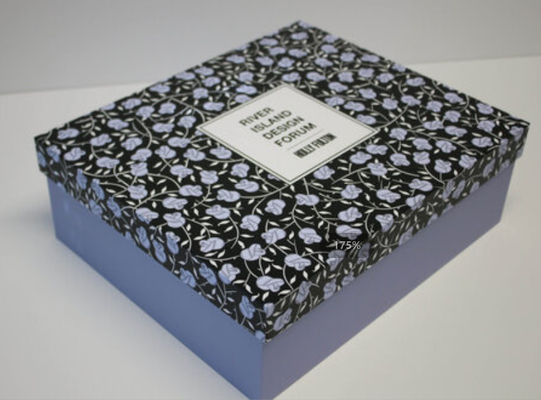

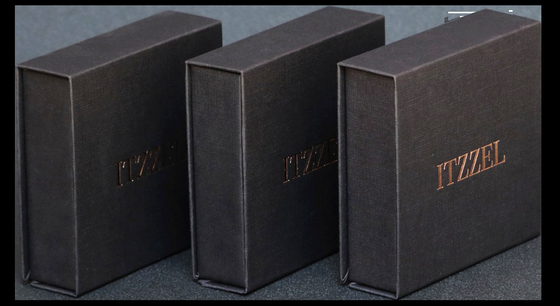

The rigid box forming machine is the best and most advanced equipment for home production of high quality rigid boxes (such as shoe boxes, shirt boxes, wine boxes, plastic boxes,carton boxes, gift boxes, etc.). hardware etc. ). The PLC with programmable controller, photoelectric tracking system and touch screen man-machine interface, paper feeding, glue, carton corners, positioning and adjustment, automatic feeding, carton feeding, edge wrapping, ear bending and edge processing can be done at the same time. Time The whole process is completely customized, and the production efficiency is more than 10 times than the traditional manual processing!
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
1.Paper loading section: double feed point with individual control
2.Corner pasting part: Non-stop cardboard stacking device, uses-friendly.

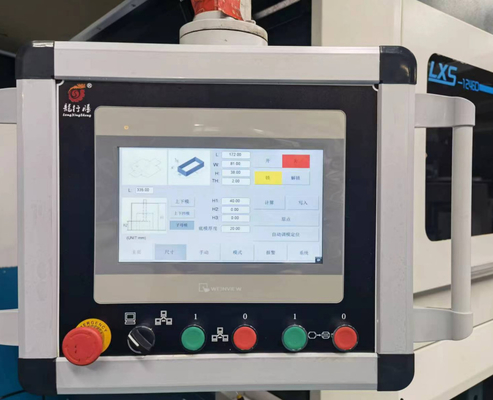

3.computer control: Servo control digital quick size adjustment
4.Forming system: No need to change tuck in blade and air pressing plate.
5.Paper feeding part: Servo-driven cam feeder effectively avoids double paper feeding.
6.Box positioning system: Big size range positioning, various in application, single mode running available
7.Gluing system:: Integrated gluing guide groove, easy to clean
8.Box holding part: lift-up box holding mechanism to prevent the bottom of the box from being scratched.
9.Visual positioning part: Dual cameras are used to operate independently. If the size of the box needs to be changed, the camera does not need to be moved, only the parameters need to be set. The camera works simply and efficiently, and the shots are fast and clear.
One of the main advantages of using a rigid box making machine is that it can produce boxes quickly and efficiently. This can be especially beneficial for manufacturers who need to produce large quantities of boxes within a short period of time. Additionally, the machine can produce boxes of consistent quality, which can help to improve the overall image of the brand.
Another advantage of using a rigid box making machine is that it can help to reduce costs. Traditional methods of box making often involve a significant amount of manual labor, which can be expensive and time-consuming. By using a machine, manufacturers can reduce the amount of labor required, which can result in significant cost savings.
Machine setting time: Short in 45 minutesWe have an independent research and development department. To date, we have more than 20 patents, including application patents, appearance patents and technology-based patents. We have specialized in the research, development, manufacture and sales of post-press machines for over 13 years. Grooving machine series and solid box forming series are our main products.
The trend of economic globalization can't be stopped, our company sincerely wishes to cooperate with companies from all over the world to achieve a win-win situation.
