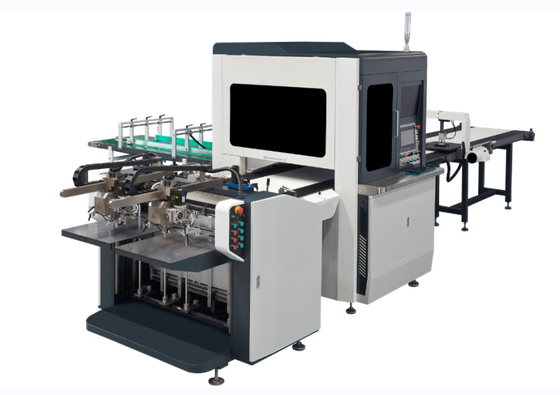

Bi-Channel Intelligent Fully Automatic Rigid Box Gluing Machine for Hard Cover Making

Bi-Channel Intelligent Fully Automatic Rigid Box Gluing Machine for Hard Cover Making Paper Gluing Machine

Versatile automatic top-to-ground folder-gluer for a variety of applications
Our versatile automatic top-to-ground box-gluer machine is the ultimate solution for a variety of box production needs. Whether you are making merchandise boxes, gift boxes or cosmetic packaging, this machine can get the job done. With its adjustable parameters, it can be adapted to different box sizes, materials and structural requirements, providing excellent flexibility. Experience an efficient and precise glue application process to meet the needs of your diverse product range. Invest in our versatile glue applicators to unlock endless possibilities for your packaging business.

Machine Introduction:

LS-900C is a double-positioning fully intelligent automatic box visaul positioning paper gluing machine with high speed and high efficiency, and can poaitinning the  top and bottom of the box at the same time. Besides it can also positining double hardcovers at the same time.The machine can make 15-25 pairs of boxes in one minute. The machine has two main parts: double feeder and leaking gluing system, box vision positioning station

production flows:

1. Paper loading part: Double feeding platform by separated control

2. Feeding system:Automatic cycle feeding by feeder

3. Belt adjustment system: non-stop belt adjustment

4. Gluing system:: Integrated gluing guide groove, easy to clean

5. Paper feeding part: Servo-driven cam feeder effectively avoids double paper feeding.

6.computer control: Servo control digital quick size adjustment

8. Box positioning system: big size range positioning, various in application, single mode running available.

Second pressing to make the bottom of the box stick better

Adopt black and white belt for more color application

Robotic arm: High accuracy ± 0.1mm

Using double cameras to operate independently, high speed and clear photo taking.

Main Parts
1. Double Germany cameras (1000 pixels)

2. Mitsubishi servo motor

3. Panasonic PLC

4. Anti-leaking gluing system

5. Servo motor feeding system

Technical Parameters

Type	LS-900C
Paper size(max)	L650xW400mm
Paper size(min)	L130xW120mm
Max cardboard size	L580xW380mm
Min cardboard size	L110xW90mm
Box size(Length)	L80-400mm
Box size(Width)	W60-300mm
Box size(Height)	H15-100mm
Working speed	12-25(Pair)/min
Paper thickness	100-350g/m2
Paper stacking height	540mm/100KG
Cardboard thickness	0.8-3mm
Edge folding size	10-90mm
Turn in depth	15-80mm
Motor power	25kw/380V 3phase
Machine weight	8kw
Air pressure	40L/min
Machine dimension	L6600xW6250xH2800mm
Weight of machine	2300kg

Dongguan Longxingjian Intelligent Equipment Co., Ltd, Dongguan Longxingjian Intelligent Equipment Co., Ltd, our company was established in 2006-01-26. The company address is located in Room 102, Building 2, No. 3 Bajiaowo Chuangye Road, Wanjiang Street, Dongguan City, Guangdong Province. Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of quality first, customer first and credit-based; Since the establishment of the company and always do our best to satisfy potential needsof our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation,since the trend of economic globalization has developed with anirresistible force.Welcome to communicate and negotiate at any time.



1.Installation Services
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
