Product Details:
|
| Automatic Grade: | Automatic | Working Speed: | 30m/min |
|---|---|---|---|
| Cardboard Thickness: | 1~4mm | Machine Dimension: | L2680*W2600*H1350mm |
| Machine Weight: | 1650kg | Color: | White |

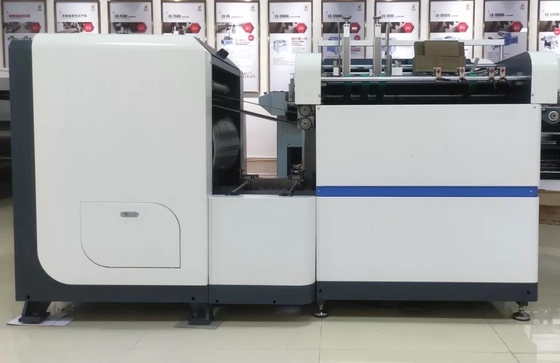

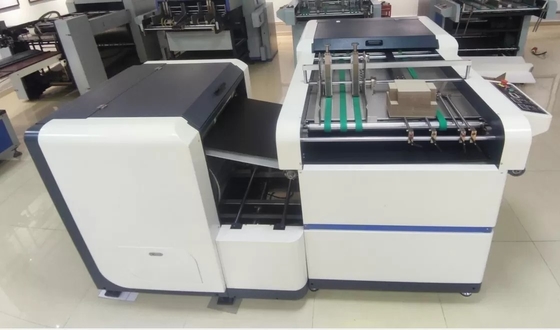

LS-1200C Automatic Dual-direction board grooving machine for cardboard, MDF grooving
This model is our new research mahcine in our company. It can handle cardboard, MDF. It also can groove two directions of cardboard which be finished at one time. Equipped with special knife grinder,easy operating and setting. We can groove cardboard 30m/min.
|
Type
|
LS-1200C
|
||
|
Quantity of groove at time
|
3*3 slots
|
||
|
Working speed
|
30m/min
|
||
|
Cardboard specification
|
120*120-600*500mm
|
||
|
Cardboard thickness
|
1~4mm
|
||
|
Motor power
|
4kw/380v
|
||
|
Machine dimension
|
L2750*W2200*H1480mm
|
||
|
Groove angle
|
80°-140°
|
||
|
Machine weight
|
1650kg
|
Grooving capacity: This machine can groove ordinary gray board, MDF and thin paper. This versatility allows processing of various materials for different application requirements.
Bi-Directional Grooving: One of the outstanding features of the LS-1200C is the ability to notch cardboard in two directions simultaneously. This feature increases productivity and enables efficient grooving of materials.
Major features
Automatic rotation:Equipped with an automatic rotation mechanism for grooving. After horizontal groove machining, it automatically switches to vertical groove machining, which simplifies the work and enables stable and accurate groove machining.
Dedicated Sharpener: The LS-1200C is equipped with a dedicated sharpener for easy maintenance and sharpening of grooving knives. This feature ensures optimum cutting performance and prolongs tool life.
Easy to Operate and Set Up: This machine is designed to be user-friendly, making it easy to operate and set up. This feature allows the operator to quickly and efficiently utilize the machine for grooving tasks.
Cutting speed: The maximum cutting speed of LS-1200C cardboard is 35 meters per minute. This speed ensures efficient production and quick turnaround times.
Cardboard size range: The maximum cardboard slot size that the machine can accommodate is 600mm x 600mm. The minimum cardboard size for slotting is 140mm x 120mm. This size range provides the flexibility to handle different board sizes.
