Product Details:
|
| Working Speed: | 35m/min | Max Size: | 1000*600mm |
|---|---|---|---|
| Min Size: | 140*120mm | Carton Paper Thickness: | 500-800g/m² |
| Cardboard Thickness: | 0.8~4mm | Machine Dimension: | L2050*W1520*H1350mm |
| Machine Weight: | 1250kg |

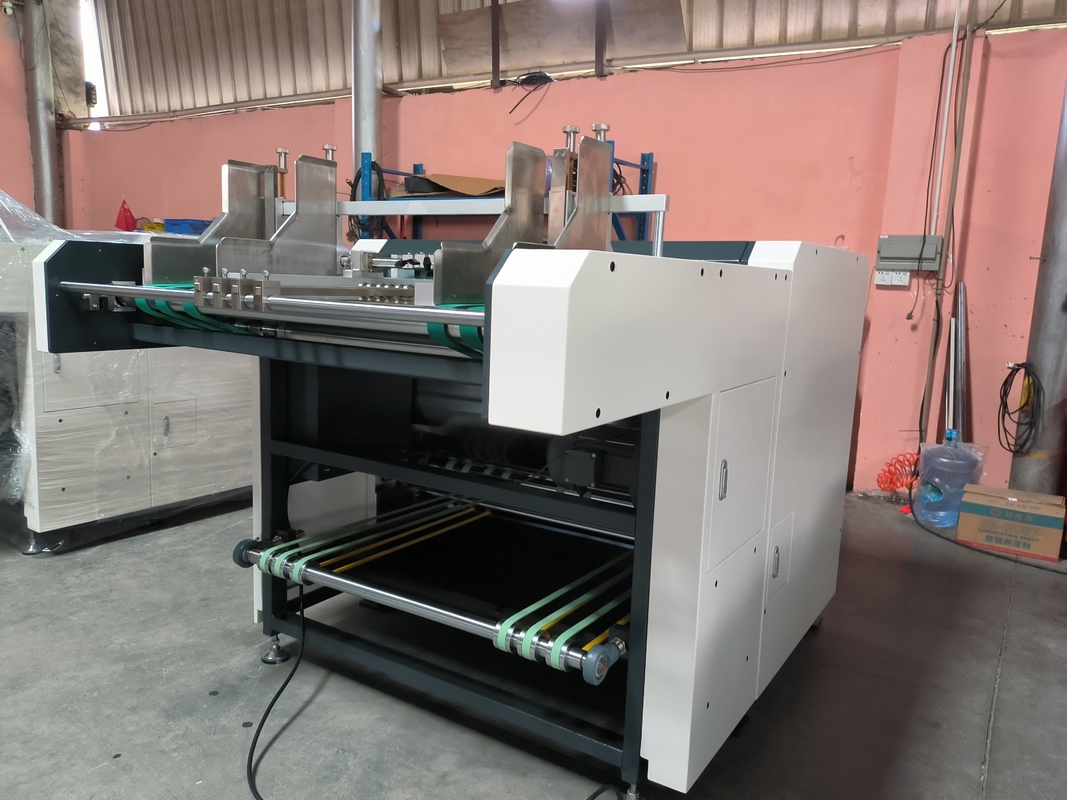

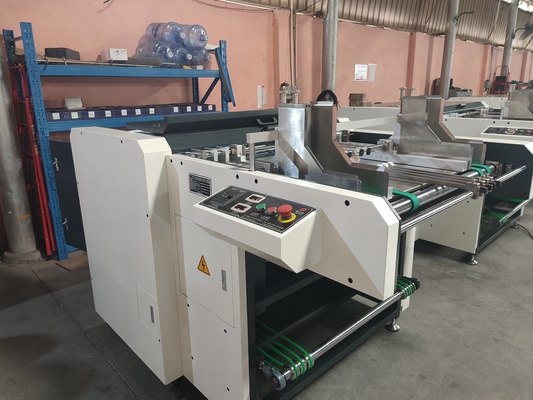

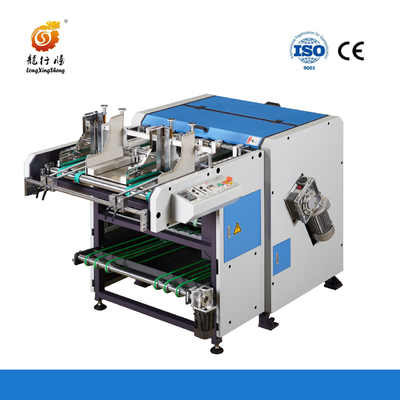

LS-1200B Automatic wooden board grooving machine for box making
In today's fast-paced manufacturing industry, efficiency and precision are key factors in determining the success of any business. For the grooving of gray board and cardboard, traditional methods often cannot meet the needs of modern production. However, with the advent of the automatic cardboard V-grooving machine, manufacturers can now achieve unrivaled productivity and precision.
| Machine model | LS-1200S |
| Quantity of groove at a time | 8 slots |
| Working speed | 35m/min |
| Carton paper size | 140*120-600*600mm |
| Paper thickness | 250-600gsm |
| Motor power | 2.5kw/380v |
| Machine dimension | L2300*W1730*H1530mm |
| Machine weight | 1500kg |
The fully automatic V-grooving machine is a state-of-the-art piece of equipment designed to simplify the grooving process in a wide variety of materials. This innovative solution offers numerous advantages over traditional methods, making it a bestseller in the industry.
Narrow and wide belts ensures seeting any grooving position. Suiteable for more products.
Single side aligning and double sides aligning fuction which are suitable for more products.
Pre-setting blade seats ensures operation faster and efficiency.
LS-1200S is a digital display automatic slot machine. Adopt PLC control system, touch screen display, real-time display of tool setting data. The wide and narrow combination belt design can be adjusted arbitrarily, which is suitable for slotting more products. This machine has an integrated paper feed baffle and the surface is specially treated for wear resistance and durability. Deflection on one side and both sides of the pull gauge.
