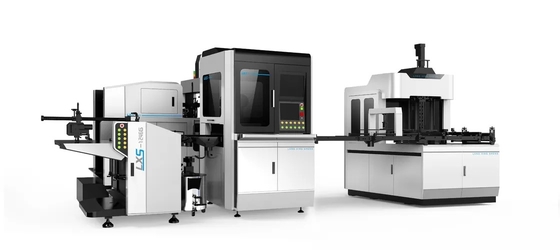

Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

Large Image : Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

Product Details:

Place of Origin:	China
Brand Name:	Longxingsheng
Certification:	CE/ISO-9001
Model Number:	LS-1246G

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	with film, paper and wooden crates
Delivery Time:	7-30 workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30 Sets per month

Contact Now

Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

Description

Product Name:	Automatic Book Type Box Making Machine	Samples::	Not Available
Customization::	Graphic Customization(Min. Order: 1 Sets)	Shipping::	Support Sea Freight
Service::	1 Year For Core Components	Paper Size(max):	L800*W600mm

**Box Making Machine Introduction(Max box size:600400160mm):**

Rigid box carton making machines, with their efficient production and multifunctional innovation, provide the perfect solution for your packaging needs. It can produce 25 boxes per minute, with a maximum size of 600*400*160mm, meeting your packaging needs of various specifications and sizes.

Whether it is a standard box with a height of 160mm or a box with beveled edges, our box making machine can easily handle it. You can produce boxes of different shapes and sizes by simply changing the foam board box grinding tools. Whether you need to make book sleeve boxes, book covers, or mount paper and liners, our box making machines can provide you with high-quality production results.

When you choose a rigid box making machine, you get an efficient, versatile and innovative box making solution. Let us work with you to add more value to your products
1246G横黑

Spec of Rigid Box Making Machine

LS-1246G Multi-function fully automatic rigid box making machine
Machine model	LS-1246G
Paper size(max)	L800*W600mm
paper size (min)	L150*W100mm
Box Length	100-600mm
Box Width	60-400mm
Box Height	15-140mm
Paper thickness	80-350g/㎡
Cardboard thickness	0.8-3mm
Working speed	15-25pcs/min
Edge folding size	10-100mm
Turn in depth	15-100mm
Motor power	12.5kw/380v 3 phase
Heating power	8 kw
Air pressure	40L/min 0.8Mpa
Weight of machine	3800kg
Machine dimension	L6500W3600H3200mm

Product Parameters

Optional function

Hardcover feeding device (Optional device)

It applied in hardcover making, inner paper of hardcover pasting.

Glue viscosity device (Optional device)

Detecting hot melt glue thickness, adding water to glue tank automatically.

LS-F6 Rigid box making machine (Optional device)

Normal size, small size able to be modified in this machine

Forming part can be sold separately

For customer not have enough budget, this forming part able to add separately.

Products Description

Control table

Including touch screem, Monitor, button for control movment.

Electric box

Including controller of robotic arm, servo motor driver, PLC etc.

Paper feeding device

Cam structure paper feeding device which is drived by servo motor.

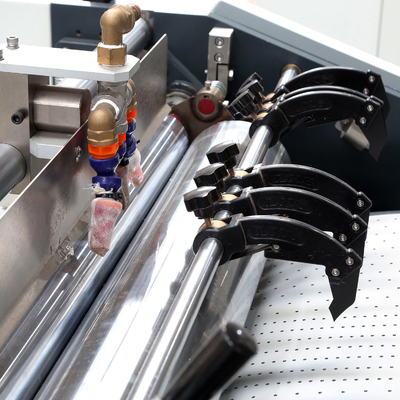

Gluing system

Upgrade gluing system, higher using rate of glue

Corner pasting and feeding

Automatic corner pasting and box feeding

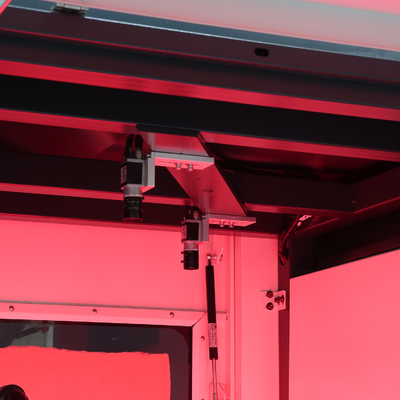

Positioning system

Including robotic arm, light source, double camera.

Second box pressing

Pressing box tightly on the glued paper.

Box feeding

Easy operational box feeding system

Forming part

Forming machine with simple structure. Able to do normal rigid box, slant side box (Mold customization), long edge folding box, wrapping into bottom.

Machine parts

Finished products by LS-1246G

Machine installation
