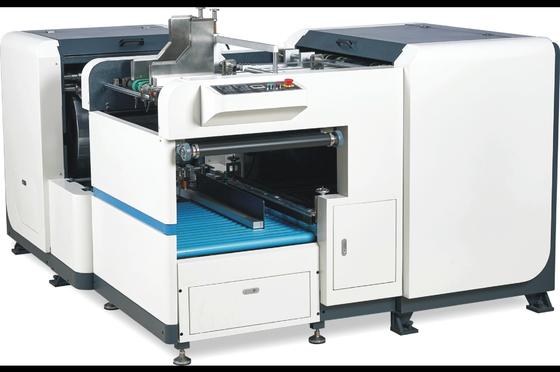

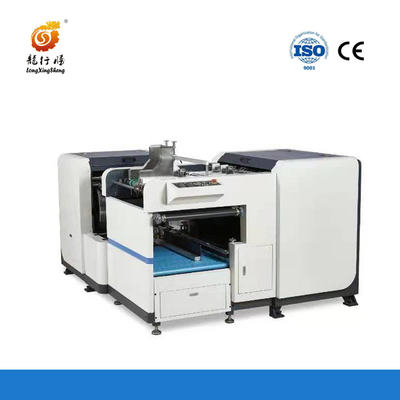

Fully Automatic Dual-Direction Hard Board Grooving Cardboard Box V Groove Machine

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High efficiency: The speed of manual feeding can be 15000pcs/8 hours.(20×20cm).

4) High accuracy of grooving: This machine applies new conveying system, the belt will conveyor the cardboard into the grooving section by pressing the cardboard against a drum with 60cm in diameter, which ensure the high accuracy and high speed.

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

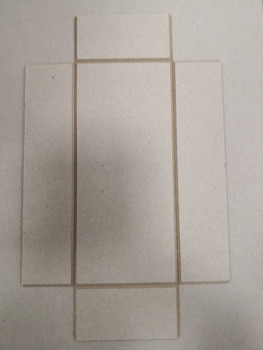

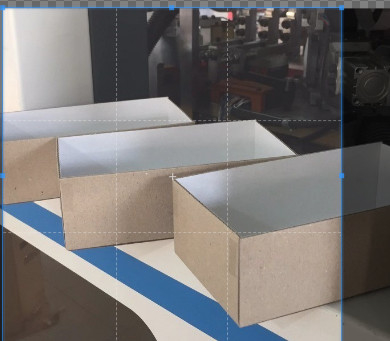

Result of grooving cardboard

Dedicated Knife Sharpener: LS-1200C is equipped with a dedicated knife sharpener, which allows you to easily maintain and sharpen the grooving knife. This feature ensures optimal cutting performance and extends tool life.

Easy to operate and set up: This machine is designed to be user-friendly and easy to operate and set up. This feature allows operators to utilize the machine quickly and efficiently for grooving operations.

Cutting Speed: The maximum cutting speed of LS-1200C cardboard is 35m/min. This speed ensures efficient production and quick delivery times.

Cardboard size range: The maximum size of the cardboard slot that the machine can accommodate is 600 mm x 600 mm. The minimum size of cardboard that can be used for slotting is 140mm x 120mm. This size range provides flexibility for different board sizes.
