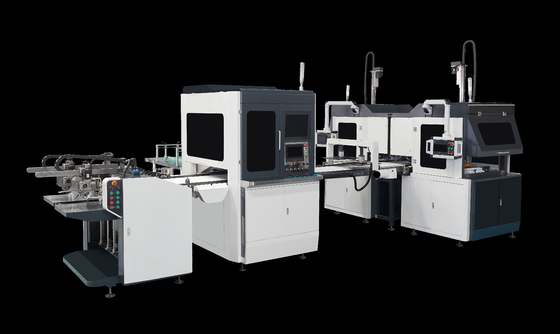

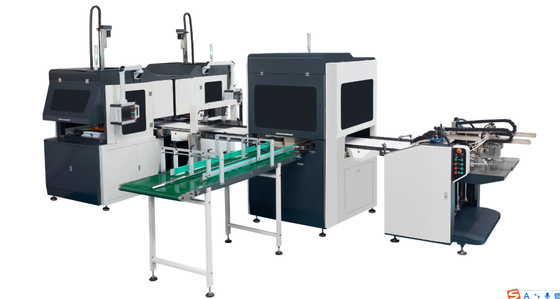

Smart Fully Automatic Rigid Box Making Machine For Wine Luxury Bottle Cut Box Maker

Bi-Channel Intelligent Fully Automatic Rigid Box Making Machine For Wine Luxury Bottle Cuo Box LS-900B

Rigid Box Making Machine Introduction:

900B is a double-station fully intelligent automatic box making machine with high speed and high efficiency, which can make the top and bottom of the box at the same time. It can make 25 pairs of boxes per minute, the maximum box size is 400*300*100mm, and the minimum box size is 80*60*15mm. In addition to boxes of the same size, boxes of different sizes and heights can also be made. , multi-purpose functional box making machine

Experience the convenience and efficiency of the fully automatic intelligent world cover box making machine. Its professional sound and powerful features make it ideal for businesses requiring high-quality box production.

Powered by Mitsubishi servo motors and PLC servo motors, this machine delivers exceptional performance and reliability. The inclusion of a high-precision YAMAHA robotic arm further enhances the efficiency and stability of box production. With a production capacity of 12-25 pairs of boxes per minute, this machine is capable of meeting the demands of large-scale orders. Additionally, its adjustable speed feature makes it suitable for smaller orders as well.

Box making production flows:

1. Paper loading part: Double feeding platform by separated control

2. Feeding system:Automatic cycle feeding by feeder

3. Belt adjustment system: non-stop belt adjustment

4. Gluing system:: One-piece gluing, easy to clean, and has an anti-leakage system

5. Paper feeding part: Servo-driven cam feeder effectively avoids double paper feeding.

6.computer control: Servo control digital quick size adjustment

7. Forming system: no need to change tuck in blade and air pressing plate.

8. Box positioning system: big size range positioning, various in application, single mode running available.

9. Box holding part: lift-up box holding mechanism to prevent the bottom of the box from being scratched.

Second pressing to make the bottom of the box stick better

Adopt black and white belt for more color application

Robotic arm: High accuracy ± 0.1mm

Using double cameras to operate independently, high speed and clear photo taking.

Machine Main Parts
1. Double Germany cameras (1000 pixels)

2. Mitsubishi servo motor

3. Panasonic PLC

4. Anti-leaking gluing system

5. Servo motor feeding system

6.Double forming stations:The paper is folded into the box quickly and with high precision(automatic setting)

Technical Parameters

Type	LS-900A
Paper size(max)	L650xW400mm
Paper size(min)	L130xW120mm
Max cardboard size	L580xW380mm
Min cardboard size	L110xW90mm
Box size(Length)	L80-400mm
Box size(Width)	W60-300mm
Box size(Height)	H15-100mm
Working speed	12-25(Pair)/min
Paper thickness	100-350g/m2
Paper stacking height	540mm/100KG
Cardboard thickness	0.8-3mm
Edge folding size	10-90mm
Turn in depth	15-80mm
Motor power	25kw/380V 3phase
Machine weight	8kw
Air pressure	40L/min
Machine dimension	L6600xW6250xH2800mm
Weight of machine	6600kg

Dongguan Longxingjian Intelligent Equipment Co., Ltd, Dongguan Longxingjian Intelligent Equipment Co., Ltd, our company was established in 2006-01-26. The company address is located in Room 102, Building 2, No. 3 Bajiaowo Chuangye Road, Wanjiang Street, Dongguan City, Guangdong Province. Longxingsheng machinery is a professional packaging machinery manufacturer with 15 years’ experience, we focus on Fully automatic rigid box making machine and rigid box related equipment such as grooving machine, corner pasting machine and positioning machine, our company vision of all time is to simplify box making, we apply our newest technology in building user- friendly machines, we simplify each step of setting in our equipment, just to provide stable and easy-operating machinery solutions to our users around the world.



INSTALLATION SERVICES
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

FAQ

Q: How could I pay?
A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3: What is the delivery lead time?
A3: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q4: Are you a factory or a trading company?
A4: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.

A5:In fact, we think that glue should not be a big problem, and the general impact has the following problems:
① First of all, the main problem should be the amount of glue applied.
② Secondly, printing and packaging manufacturers must pay attention to seasons and climate issues.
③ Pay attention to the curing time of the glue when applying the glue to the heaven and earth cover forming machine for production.

6. Are you a manufacturer?----Yes, we are a manufacturer with over 12 years professional experience .Welcome the exclusive agents in Europe/Asia/Africa/America to join us.
7. What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.
8. Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
9. What's the payment term?---FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)
