Product Details:
|
| Automatic Grade: | Automatic | Working Speed: | 30m/min |
|---|---|---|---|
| Cardboard Thickness: | 1~4mm | Machine Dimension: | L2680*W2600*H1350mm |
| Machine Weight: | 1650kg | Color: | White |

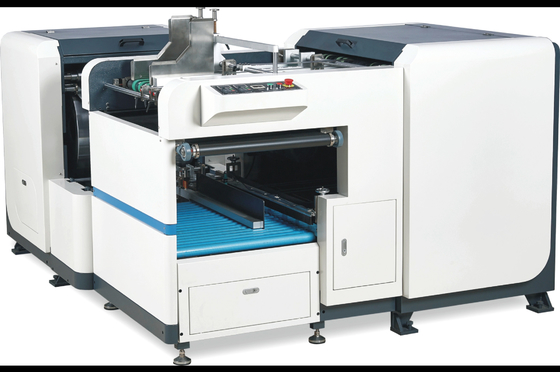

LS-1200C Automatic Dual-direction board grooving machine for cardboard, MDF grooving
Launched a fully automatic, high-speed, high-efficiency, dust-free cardboard density board slotting machine. This professional-grade machine is specially designed for the production of various box materials such as gray board, cardboard, density board, etc.
The machine has a built-in alignment system that ensures precise grooving for a perfect final product. The machine is equipped with a waste separation system that can separate finished products and waste materials for efficient transportation.
The machine features adjustable upper and lower cutting heads ranging from 80° to 140°, providing flexibility for creating custom slot designs. Its dual workstation feeding system further increases productivity, doubling output and thus increasing efficiency.
Invest in an automatic high-speed, high-efficiency dust-free cardboard MDF slotting machine to meet your manufacturing needs. Experience professional-grade performance and achieve outstanding results with this reliable and versatile machine.
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High efficiency: The speed of manual feeding can be 15000pcs/8 hours.(20×20cm).
4) High accuracy of grooving: This machine applies new conveying system, the belt will conveyor the cardboard into the grooving section by pressing the cardboard against a drum with 60cm in diameter, which ensure the high accuracy and high speed.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
Result of grooving cardboard
Dedicated Knife Sharpener: LS-1200C is equipped with a dedicated knife sharpener, which allows you to easily maintain and sharpen the grooving knife. This feature ensures optimal cutting performance and extends tool life.
Easy to operate and set up: This machine is designed to be user-friendly and easy to operate and set up. This feature allows operators to utilize the machine quickly and efficiently for grooving operations.
Cutting Speed: The maximum cutting speed of LS-1200C cardboard is 35m/min. This speed ensures efficient production and quick delivery times.
Cardboard size range: The maximum size of the cardboard slot that the machine can accommodate is 600 mm x 600 mm. The minimum size of cardboard that can be used for slotting is 140mm x 120mm. This size range provides flexibility for different board sizes.
For any packaging manufacturer looking to increase production capacity, investing in an automatic high-speed cartonboard MDF slotting machine is a wise choice. With its cutting-edge technology, versatility and user-friendly interface, it provides a competitive edge in a rapidly evolving industry. By automating the grooving process, manufacturers can significantly increase production, reduce costs and consistently deliver high-quality products to customers.
