Product Details:
|
| Quantity Of Groove At A Time: | 8/ Slots | Working Speed: | 35m/min |
|---|---|---|---|
| Max Size: | 600*600mm | Min Size: | 140*120mm |
| Product Name: | Cardboard Grooving Machine | Model: | LS-1200S |

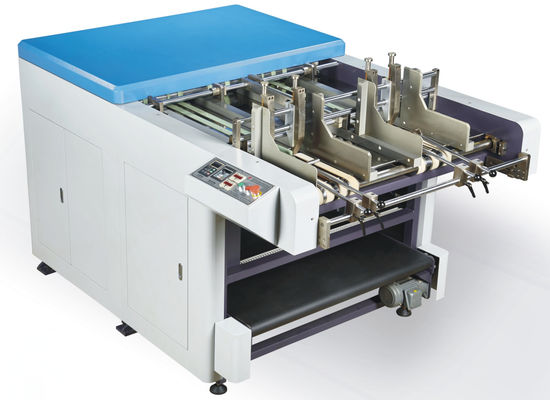

LS-1200S Automatic Digital carton paper cardboard grooving machine
LS-1200S is do well in controlling grooving carton paper or cardboard with PLC system. The narrow and wide belts ensures setting any grooving posision. This machine is designed to work quickly, which means that you can produce large quantities of cut materials in a short amount of time. This is particularly useful for manufacturers who need to produce large quantities of packaging materials on a regular basis.
| Product name | Automatic Digital carton paper cardboard grooving machine |
|
Machine model
|
LS-1200S
|
|
Quantity of groove at a time
|
8 slots
|
|
Working speed
|
35m/min(80-175pcs/min)
|
|
Cardboard size
|
140*120-600*600mm
|
|
Cardboard thickness |
0.8-2.5mm
|
|
Thin paper thickness
|
250-600gsm
|
|
Motor power
|
2.5 Kw/380v
|
|
Machine dimension |
L2300*W1730*H1530mm
|
|
Machine weight
|
1500kg
|
Having the right tools is essential when cutting materials like gray board, cardboard, and more. This is where the double V-groove machine comes in. This innovative machine is designed to make precise cuts in a wide variety of materials, making it a must-have for any workshop or manufacturing facility.
The machine is designed to make precise cuts, which means you'll create clean, straight edges every time. This is especially important when working with materials such as gray board and cardboard, which are difficult to cut cleanly with other tools.
