Product Details:
|
| Min Box Size: | L50*W50*H12mm | Max Box Size: | L350*W250*H100mm |
|---|---|---|---|
| Max Paper Size: | L550*w450mm | Min Paper Size: | L110*w70mm |
| Max Cardboard Size: | L550*W400mm | Min Cardboard Size: | L80*W70mm |

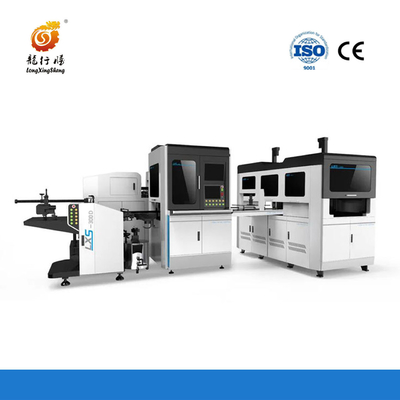

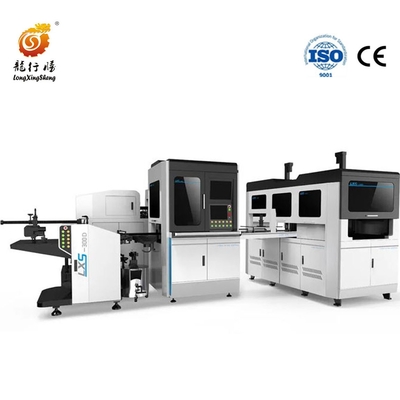

LS-300D fully automatic high speed intelligent box making machine is the perfect machine for customers with large orders. Includes box corner pasting, stickers, box positioning, box packing, and laminating.
This machine uses visual positioning that is easy to position and has high accuracy. Since the molding station is set automatically, the machine set-up time is significantly reduced. The solidification time for the entire line is 45-60 minutes. Higher speeds can be achieved with dual molding setup stations. The maximum speed reaches 40 pieces/min. This allows us to meet different order quantity requirements. Additionally, the operating range is the smallest size. The minimum box size is 50*50*10mm. This smart styler will help you get more orders.
| Type | LS-300D |
| Paper size(max) | L550*W450mm |
| paper size(min) | L120*W70mm |
| Max cardboard size | L550*W400mm |
| Min cardboard size | L80*W70mm |
| Box size(length) | L50-350mm |
| Box size(width) | W50-250mm |
| Box size(height) | H12-100mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-40 pcs/min |
| Motor power | 16kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3600kg |
| Machine dimension | L6400*W4000*H3000mm |
