Product Details:
|
| Product Name: | LS-450plus High-End Perfume Box Gluing And Positioning Machine For Rigid Box | Type: | Multi-Function Box Gluing Machine |
|---|---|---|---|
| Working Speed: | 15-39 Pcs/min | Application: | Case Positioning And Gluing Machine |
| Dimension(L*W*H):: | L5980*W3185*H2104 | Weight Of Machine: | 2141kg |
| Power: | 380V | Positioning Accuracy: | ±0.1mm |
Automatic High-Precision, Simple-To-Setup Vision Positioning Machine
Introduction:

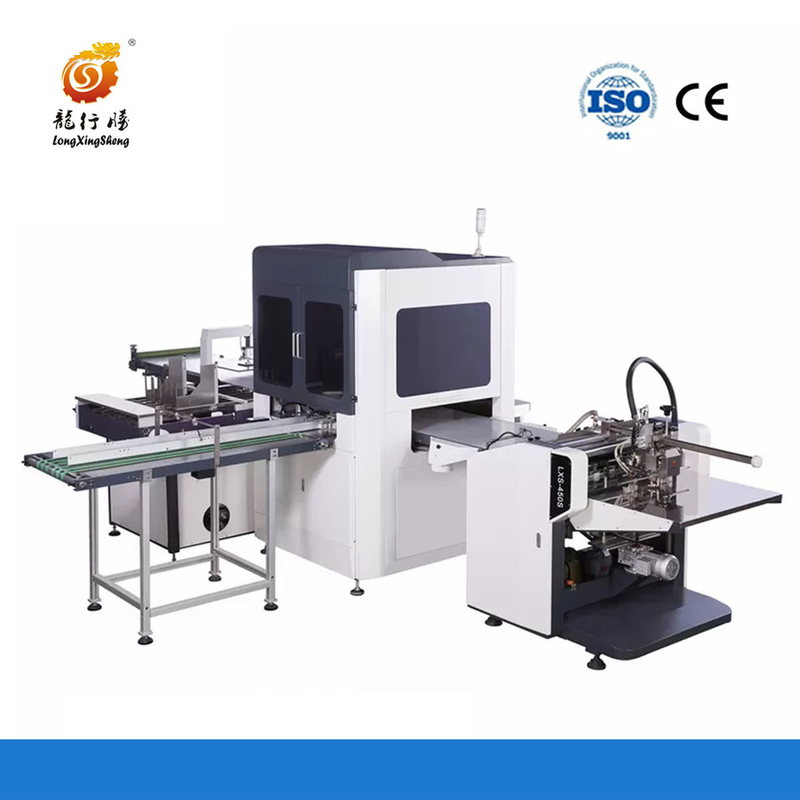

LS-450plus is a multi-functional visual positioning machine. Realizes the positioning of hard boxes and hard covers. It can also be used as a paper lining, allowing multiple uses in one machine, and working modes can be switched with one click. Visual positioning system can be upgraded. Additionally, it is possible to upgrade to an automatic line in the future if required.
Hardcover feeding device:
1. The "motor forward and reverse button" controls the forward and reverse rotation of the motor to drive the "belt" rotation, thereby controlling the forward and reverse rotation of the "gray board feed knife bar" to meet the purpose of feeding. will be achieved. hardcover book.
2. The function of the “blade” is to drive the hardcover book into a position that the robot arm can precisely position. Each "intermediate pallet" is usually equipped with a "blade", the position of which can be adjusted by loosening a countersunk screw.
3. You can attach a "side baffle" to the "side tray" that restricts the left and right movement of the gray board. When adjusting the "side pallet", you can turn the handle to bring both sides of the "side baffle" closer to the gray board. Four "push rods" are assembled on four "intermediate pallets". The "middle push plate" can be adjusted by loosening the "flat head screw" and moving the "push rod" to match the actual width of the hardcover book, and the "flat head screw" will move to the appropriate position in the width direction. hardcover book. "T slot rod".
4. The function of the "stop" is to fix the gray board in place and prevent it from backing up. Loosen the screw that fixes the "push plate", move the position of the "push plate", and then tighten the screw to complete the "stopping".
1.Adhesive viscosity measuring device: Automatically detects the thickness of hot melt adhesives.
2.Pneumatic double diaphragm pump: used for pumping white glue.
3.Bottom suction cup hardcover paper feeder: Specially designed for hardcover paper feeding to avoid scratching the hardcover.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
