Product Details:
|
| Roller: | High Accuracy | Product Name: | Board Grooving Machine |
|---|---|---|---|
| Quantity Of Slot: | 8 | Operation Mode: | Semi-Automatic |
| Machine Size: | L1320*W1200*H1300mm | Weight: | 900kg |

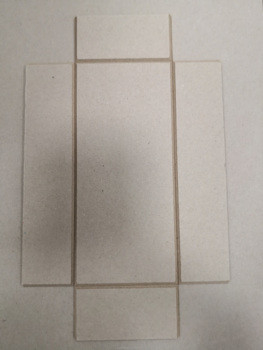

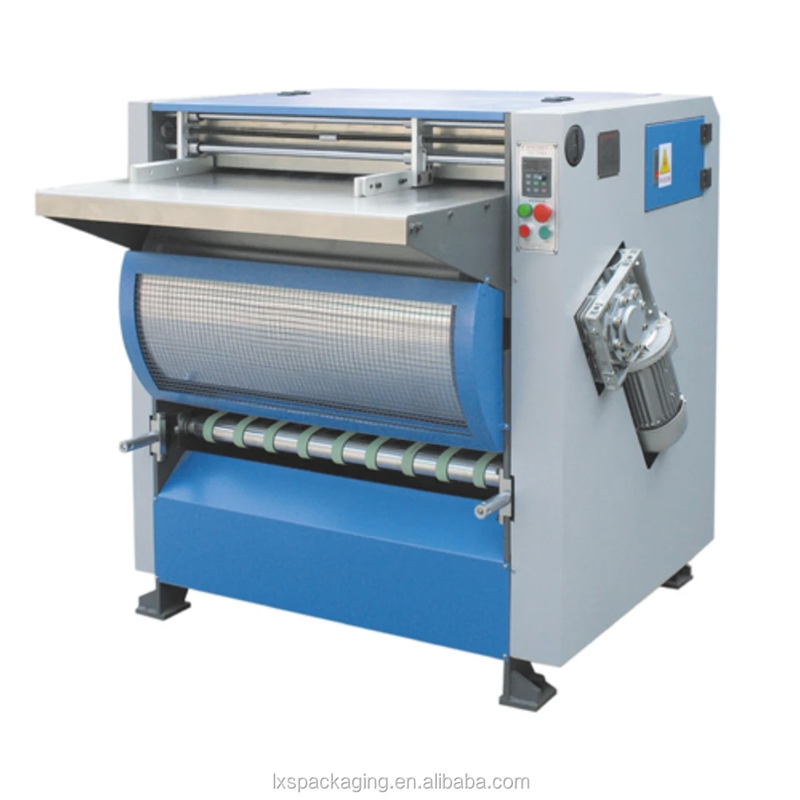

This board grooving machine is designed to provide an effective and efficient way to produce high quality grooves for use in hardcover book production. It is equipped with advanced features that make it easy to use and capable of precise grooving. The maximum grooved gray board size of this V-shaped grooving machine is 950*600mm, the maximum grooving speed is 40 meters per minute, the power is 1.5kw/380v, and the material is aluminum alloy, which provides reliability for the production of unique grooves. and cost-effective solution. It is ideal for industrial and commercial use, as well as crafts and hobbyists.
Board grooving machines are designed for precision and durability. It is capable of producing grooves with precise depth and width, ensuring the highest quality results. It can be used on a variety of materials including gray board, density board and cardboard. The machine is also easy to maintain and requires minimal setup time. It's ideal for manufacturers and other professionals looking for a reliable and cost-effective hardcover V-grooving machine.
| Machine model | LS-1000 | LS-1000 XL |
|
Quantity of groove at a time |
8 slots | 8 slots |
| Working speed | 40m/min | 40m/min |
| Max board size (width) | 950mm | 1100mm |
| Board thickness | 1-4mm | 1-4mm |
| Motor power | 1.5kw/380v | 2kw/380v |
| Machine dimension | L1320*W1200*H1300mm | L1320*W1600*H1300mm |
| Machine weight | 900kg | 1000kg |
The Longxingsheng LS-1000 Board Grooving Machine is designed to provide high-quality and accurate grooving performance. It is equipped with a high accuracy roller and an automatic operation mode that is controlled by a PLC system. The Aluminum Alloy material ensures durability and a grooving accuracy of ±0.1mm. It is available in minimum order quantity of 1 and can be packaged with film & wood case. Delivery time is within the specified period and payment terms include 30% down payment on order, 70% balance payment before shipment. The supply ability is 60 sets/month.
High Quality Board Grooving Machine by Longxingsheng (LS-1200B), with excellent inteligence and stunning performance.
This Board Grooving Machine is perfect for cutting lines and grooves on cardboard. It is made with high quality materials and absolute inteligence, making it a valuable addition to any production line.
Our team of experts is here to help you with your Board Grooving Machine. We provide technical support and service to ensure that you can operate the machine efficiently and safely.
If you have any questions or need help with your Board Grooving Machine, please don't hesitate to contact us.
The board grooving machine will be packaged in a corrugated cardboard box. The dimensions of the box will be determined by the size of the machine. It will be filled with foam cushioning to protect the machine during transit. The box will be sealed with strong tape and labeled with the company's logo.
The board grooving machine will be shipped by ground transportation or air freight, depending on the customer's preference. All shipments will include tracking information and insurance to ensure that the machine arrives safely and on time.
