Product Details:
|
| Product Name: | Bi-Channel Intelligent Fully Automatic Rigid Box Making Machine For Wine Luxury Bottle Cuo Box | Box Size(max): | L400*W300*H100mm |
|---|---|---|---|
| Box Size(min): | L80*W60*H15mm | Paper Size(max): | L550*W450mm |
| Paper Size(min): | L130xW120mm | Max Cardboard Size: | L580xW380mm |
| Min Cardboard Size: | L110xW90mm | Air Pressure: | 40L/min |
| Machine Dimension: | L6600xW6250xH2800mm |

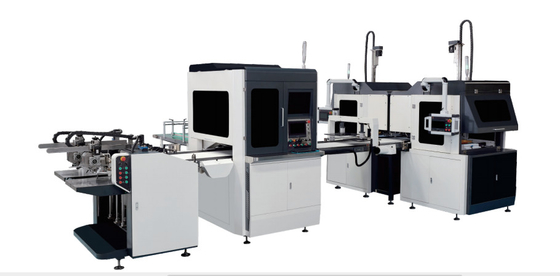

Bi-Channel Intelligent Fully Automatic Rigid Box Making Machine For Wine Luxury Bottle Cuo Box LS-900B
Rigid Box Making Machine Introduction:
The 900B is a fast, highly efficient, dual-station, fully intelligent, fully automatic box making machine that can produce the top and bottom of boxes simultaneously. This machine can make 15 to 25 boxes per minute. This machine mainly consists of three parts: dual feeding and glue leakage system, box visual positioning station, and dual forming station.

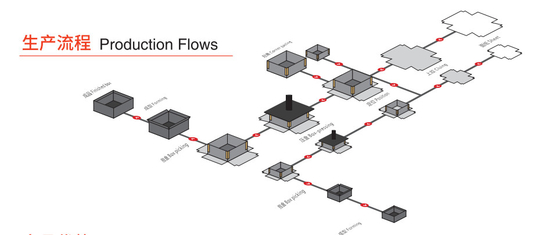

Box making production flows:

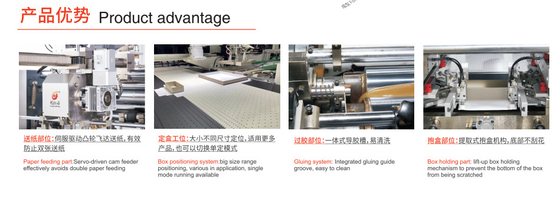

1. Paper loading section: dual paper feeding platform, independently controlled
2. Feeding system: The feeder automatically circulates and feeds the material.
3. Belt adjustment system: non-stop belt adjustment
4. Adhesive coating system:: Features an integrated adhesive coating, easy to clean, and leak-proof system.
5. Paper feeding section: Paper is fed by a servo-driven cam, effectively preventing double feeding.
6. Computer control: servo control digital quick size adjustment
7. Forming system: No need to replace the folding knife and air pressure plate.
8. Cabinet positioning system: large size range positioning, wide range of applications, can operate in single mode.
9. Box retainer: The box retainer can be raised and lowered without damaging the bottom of the box.
Press again and the bottom of the box will stick firmly.
Black and white tape allows for more color applications
Robot arm: high precision ±0.1mm
It uses dual cameras to work independently to take quick and clear photos.
| Type | LS-900A |
| Paper size(max) | L650xW400mm |
| Paper size(min) | L130xW120mm |
| Max cardboard size | L580xW380mm |
| Min cardboard size | L110xW90mm |
| Box size(Length) | L80-400mm |
| Box size(Width) | W60-300mm |
| Box size(Height) | H15-100mm |
| Working speed | 12-25(Pair)/min |
| Paper thickness | 100-350g/m2 |
| Paper stacking height | 540mm/100KG |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Motor power | 25kw/380V 3phase |
| Machine weight | 8kw |
| Air pressure | 40L/min |
| Machine dimension | L6600xW6250xH2800mm |
| Weight of machine | 6600kg |
INSTALLATION SERVICES
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
