LS-450plus Multi-function Packaging Machine for Paper Box Packing

LS-450plus Multi-function Packaging Machine for Paper Box Packing
LS-450plus Multi-function Packaging Machine for Paper Box Packing
LS-450plus Multi-function Packaging Machine for Paper Box Packing LS-450plus Multi-function Packaging Machine for Paper Box Packing LS-450plus Multi-function Packaging Machine for Paper Box Packing LS-450plus Multi-function Packaging Machine for Paper Box Packing LS-450plus Multi-function Packaging Machine for Paper Box Packing LS-450plus Multi-function Packaging Machine for Paper Box Packing

Large Image :  LS-450plus Multi-function Packaging Machine for Paper Box Packing

Product Details:
Place of Origin: China
Brand Name: Longxingsheng
Certification: CE, ISO9001
Model Number: LS-450plus
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: With paper,film and by wooden crate.
Delivery Time: 7-15 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 15sets/month

LS-450plus Multi-function Packaging Machine for Paper Box Packing

Description
Product Name: LS-450plus Multi-Function Packaging Machine For Paper Box Packing & Book Cover & Cellphone Box Type: Multi-Function Packaging Machine
Working Speed: 15-38 Pcs/min Application: Case Positioning And Gluing
Dimension(L*W*H):: L5980*W3185*H2104 Weight Of Machine: 2141kg

LS-450plus Multi-Function Packaging Machine For Paper Box Packing & Book Cover & Cellphone Box

Introduction:

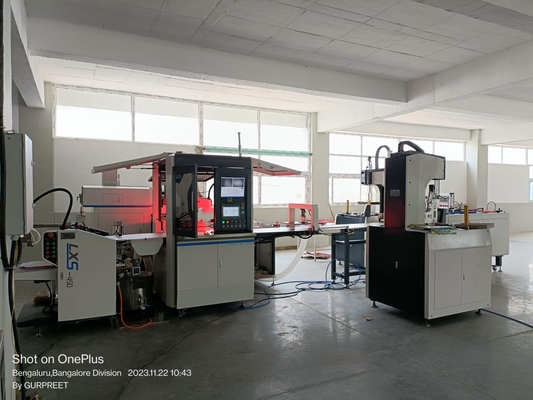

During the transportation process, the LS-450plus visual box positioning machine is divided into multiple different parts for packaging. The whole machine is divided into several independent parts. The surface of each part is covered with a transparent thin plastic film to prevent dust and rainwater from entering. The machine is then packed into a suitable wooden box to prevent the machine from getting wet and rusting. After being shipped to the destination, the various parts are assembled into a complete production line.

LS-450plus Multi-function Packaging Machine for Paper Box Packing 0

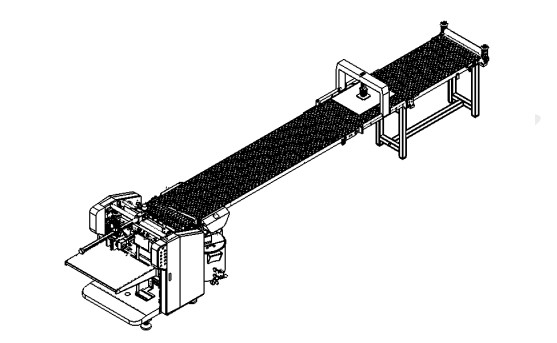

Machine parts:

LS-450plus Multi-function Packaging Machine for Paper Box Packing 1

1. Gluing machine (gluing on tissue paper): Separates individual sheets of tissue paper, applies glue evenly on the tissue paper through the roller, and then transports the glued tissue paper to the box embryo positioning part by the conveyor belt.
2. Positioning machine (box embryo positioning): Use a robot to grab the gray board (or box embryo), and accurately position it on the glued tissue paper through the camera.
3. Shell machine (gray board conveying): The motor rotates to drive the rotation of the belt to indirectly drive the movement of the blade on the gray board feeding shank to transport the gray board to the position where the robot grasps the shell.

LS-450plus Multi-function Packaging Machine for Paper Box Packing 2

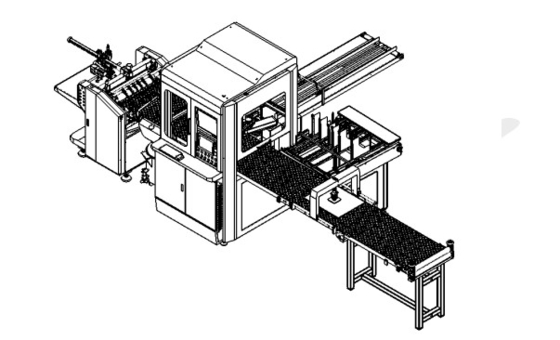

1. Paper loading platen: The facial paper can be placed on the platen, and the paper will be separated by feeder paper feeding. When the facial paper is reduced, the platen will automatically rise to the paper suction position. When reloading paper, you need to lower the table manually, which can be raised and lowered through the button on the side.
2. Feeder paper feeding: separate the neatly stacked facial paper sheets into the gluing mechanism.
3. Gluing system: After Feida feeds the tissue paper into the roller, the glue is evenly applied to the tissue paper through the action of the roller. The tissue paper is separated from the roller by the scraper, and the tissue paper will be transported to the roller by the conveyor belt. Positioning part.
4. Box pressing mechanism: Strengthen the bottom fit of the positioned facial tissue and the box embryo.
5. Paper roller: Recycle the tissue paper that has not been positioned with the box blanks on the conveyor belt or the remaining tissue paper to reduce the chance of secondary scrapping.
6. Glue bucket: After the glue is melted, it is transported to the glue passing mechanism. A specific time can be set to heat the glue.

Main features:

1. High speed, Max speed is 42 pcs/min.
2. Easy adjustmen, the min setting time of change model is 7 minutes.
3. No-move camera when change sizes.
4. Double Germany Basler cameras (ten million pixels).
5. Dual feeding system, one button change box feeding to hardcover feeding system.

6. Panasonic Servo motor feeding system..


Advantages:
  • Flexible
Can connect with four sides wrapping machine to make the hardcover
Can work with box wrapping machine to make rigid box
Can make special box, such as slant side box (videos are available)

  • High speed
With 2 sets LS-F7 box wrapping machine, the speed of machine can make around 131000 pcs per day
  • Save setting time
Only need 7 minutes when change product mode
One bottom to change case to box
No stop working when change different size, because one F6 for presetting and another one can keep working

Optional function:
  1. Glue Viscosity Device : Automatic detecting the hot melt glue thickness.
  2. Air Operated Double Diaphragm Pump: Applied in white glue pumping.
  3. Bottom sucker hardcover feeding device: Special design for feeding hardcover, to avoid scraping hardcover.



Specifications of LS-450plus:
Type LS-450plus
Paper size (Max) L800*W600mm
Paper size (Min) L135*W100mm
Max box size L600*W400*H120mm
Min box size L80*W65*H15mm
Book cover (Max) L750*W450mm
Book cover (Min) L150*W100mm
Paper thickness 100-350g/㎡
Paper stacking height 280mm
Motor power / voltage 7.5kw/380v, 3 phase
Heating power 8kw/380v, 3 phase
Air supply 10L/min 0.6Mpa
Working speed 15-45 sheets/min
Machine dimension L5980*W3180*H2100mm
Weight of machine 2100kg

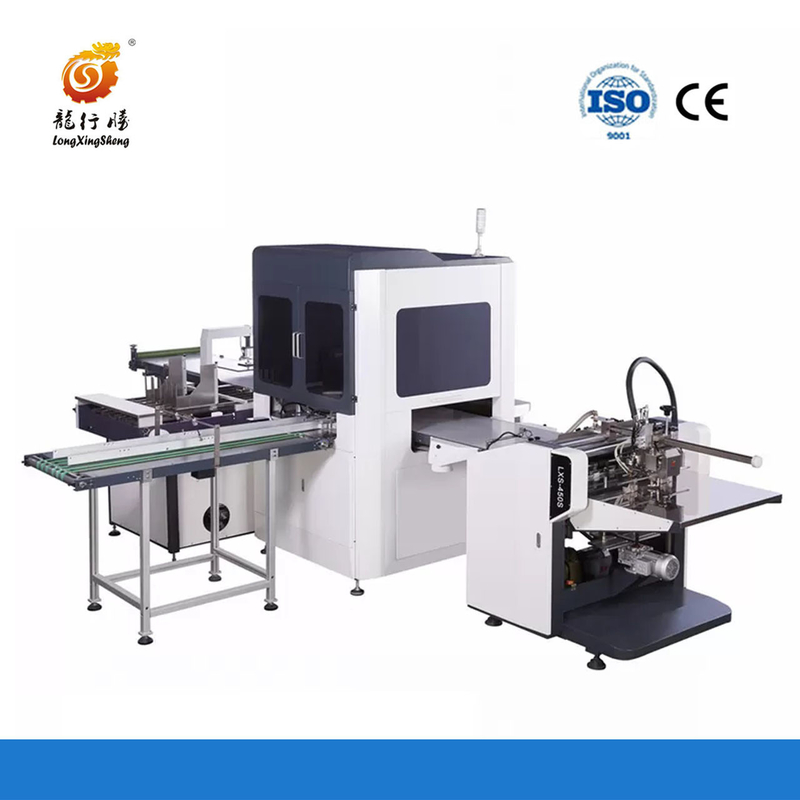

Company profile:
LS-450plus Multi-function Packaging Machine for Paper Box Packing 3
Dongguan Longxingjian Intelligent Equipment Co.,Ltd


We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.



We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.


We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.

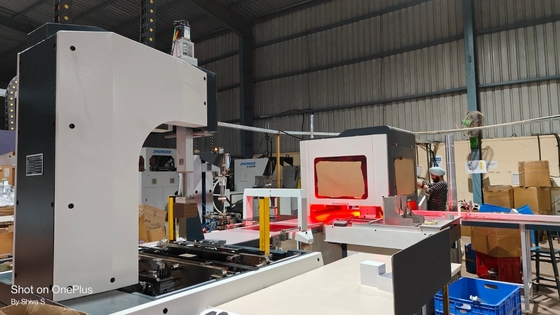

Our service:

LS-450plus Multi-function Packaging Machine for Paper Box Packing 4



Pre-sale service:

* Inquiry and consulting support.
* Sample testing support.
* Factory visit.





After-sale service:

* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* Free machine parts replacement during warranty.
* Whole life of machine service.
