Product Details:
|

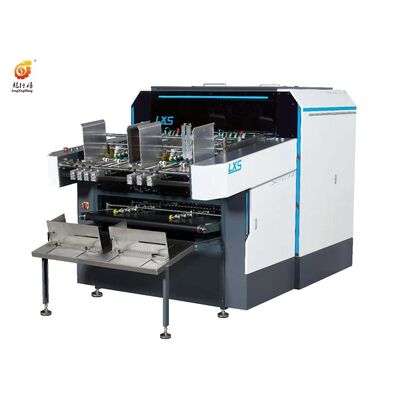

LS-G9 - The LS-G9 automatic intelligent paper grooving machine is specially designed for paper. It combines automatic setup, automatic depth adjustment, automatic finished product collection and automatic waste cleaning to deliver consistent groove quality at high speed.
A dedicated paper grooving platform designed for consistent groove quality on paper stock, with automatic depth adjustment that prevents the roller from scratching the surface.
Simply input the dimensions and the machine setup is completed automatically. Grooving depth is also automatically adjustable - easy and convenient.

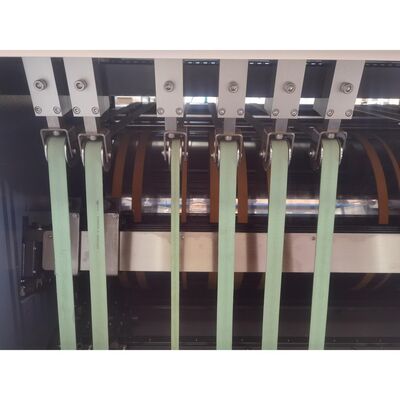

Belt and grooving blades automatically move to the exact position, making the machine easy to operate and fast to change over between jobs.

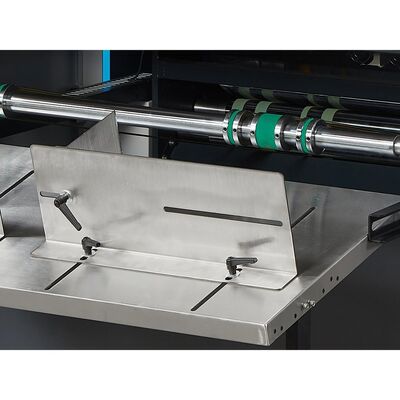

Grooved products are automatically stacked on the collection table so the operator can pick them up easily and move to the next production step.

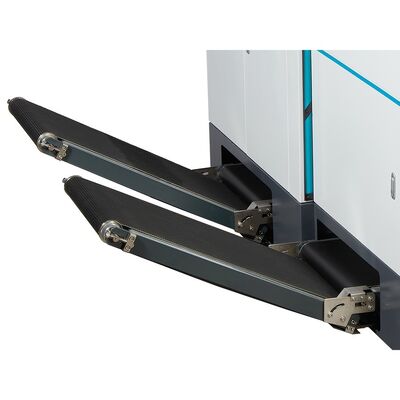

Waste material, including the four corner pieces and grooving debris, is transported out automatically by the cleaning belt. Place a carton or bin at the discharge end to collect it - no manual cleaning required.

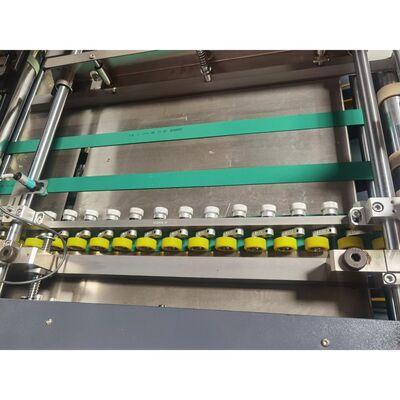

The system corrects any misalignment as the material enters the machine, delivering it accurately to the rollers for consistent grooving precision.
| Machine model | LS-G9 |
| Max grooving quantity | 12 slots |
| Working speed | 15-45 m/min |
| Working efficiency | 60-180 pcs/min |
| Max size (single guide) | L1020 x W600 mm |
| Max size (two feeding guides) | L600 x W460 mm (feeding width) |
| Min size | L120 x W120 mm |
| Carton paper thickness | 200-600 g |
| Accuracy | +/-0.1 mm |
| Highest accuracy | +/-0.01 mm |
| Blade adjustment method | Automatic size adjustment |
| Feeding guide adjustment method | Electric adjustment |
| Blade row quantity | Three rows |
| Angle adjustment method | Individual adjustment for each blade |
| Air supply | 10 L/min, 0.6 MPa |
| Motor power | 3.2 kW / 380 V / 3 phase |
| Machine dimension | L2867 x W2668 x H1844 mm |
| Machine weight | 2300 KG |
Machine video: LS-G9 Automatic Paper Grooving Machine
LXS specializes in rigid box making and board processing machines. Contact us with your board size and target output for a machine configuration matched to your production line.
