Product Details:
|

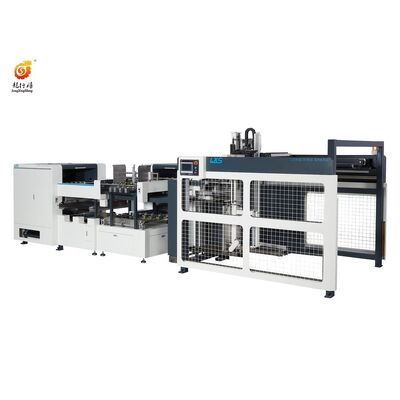

LS-G6 - The LS-G6 automatic setting grooving and palletising machine fully automates three key processes: automatic setup, palletising and collection, and waste cleaning. It eliminates manual adjustment and repetitive handling, so one operator can run 2-3 machines at the same time.

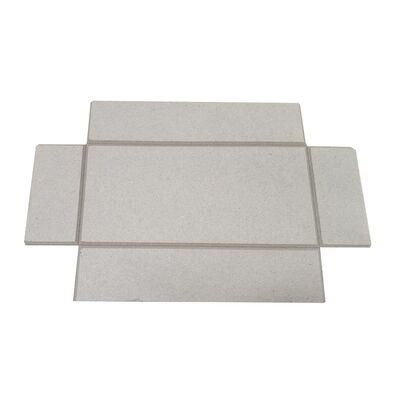

Load the material once - after grooving in one direction, the cardboard automatically turns to groove the other direction, reducing manual loading and unloading.

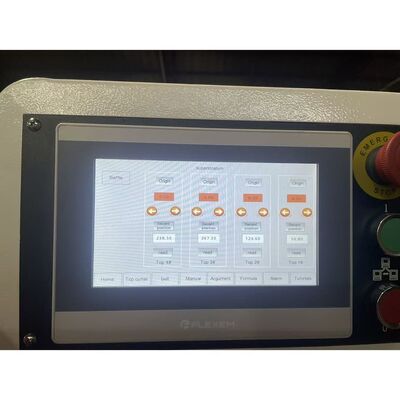

Simply input the dimensions and the machine setup is completed automatically. Grooving depth is also automatically adjustable.

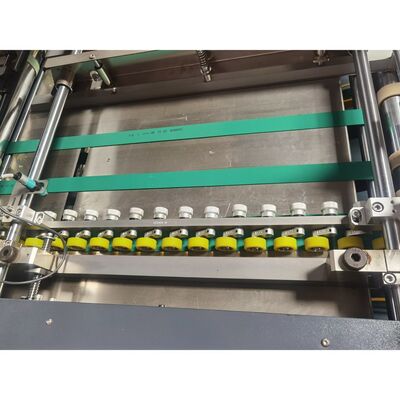

Belt and grooving blades automatically move to the exact position for easy operation and fast job changeover.

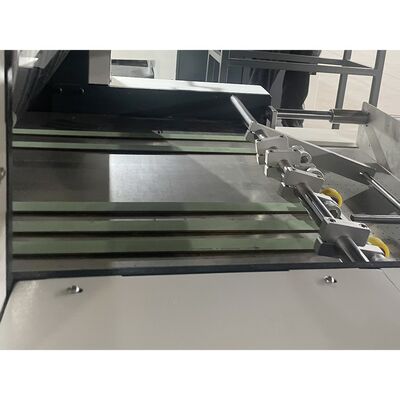

Corrects misalignment as the cardboard enters the machine and delivers it accurately to the rollers for consistent grooving precision.
The grey board turns automatically after completing one grooving direction, saving manual effort and improving efficiency.

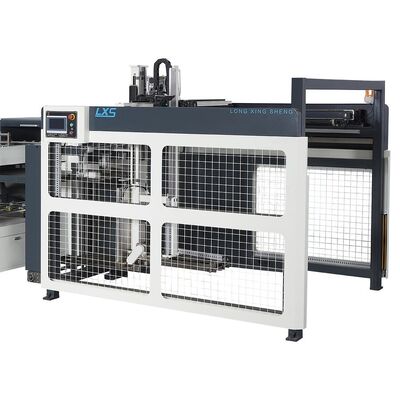

An automatic palletizer at the end of the machine stacks finished products seamlessly - no labour needed to pick up and stack grooved cardboard.
| Machine model | LS-G6 |
| Vertical grooving quantity | 2 slots |
| Horizontal grooving quantity | 2 slots |
| Work efficiency | 30-80 pcs/min |
| Max size | L600 x W600 mm |
| Min size | 160 x 140 mm |
| Grooving accuracy | +/-0.1 mm |
| Cardboard thickness | 0.8-2.8 mm |
| Blade adjustment method | Digital automatic adjustment |
| Belt adjustment method | Electric adjustment |
| Blade row quantity | One row |
| Angle adjustment method | Individual adjustment for each blade |
| Feeding guide adjustment method | Electric adjustment |
| Collecting pallet size | L800 x W600 mm |
| Stacking weight | 180 kg |
| Stacking height | 500-1000 mm |
| Air supply | 10 L/min, 0.6 MPa |
| Motor power | 10 kW / 380 V / 3 phase |
| Machine dimension | L3500 x W2650 x H1400 mm |
| Machine weight | 3500 KG |
LXS specializes in rigid box making and board processing machines. Contact us with your board size and target output for a machine configuration matched to your production line.
