Product Details:
|

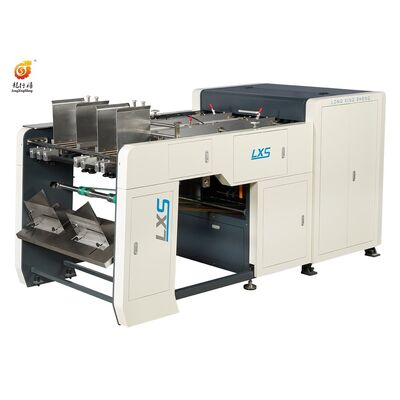

LS-1200G - The LS-1200G automatic cutting and grooving machine completes cardboard grooving and corner cutting at the same time. Cardboard comes out ready to make rigid boxes - no die-cutting moulds required, saving both time and cost.

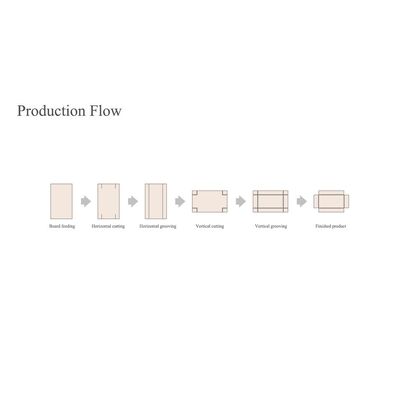

The machine combines grooving and corner cutting and eliminates die-cutting. Load the slitted cardboard and it comes out ready for rigid box making.

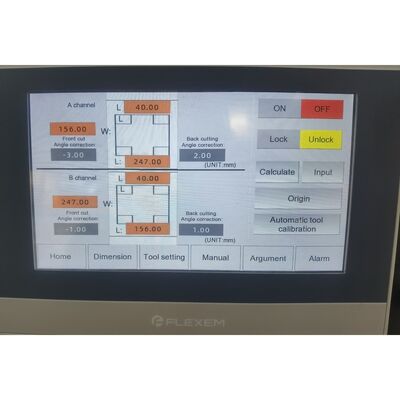

The corner cutting length is digitally adjustable. Simply input the value and the machine completes the setup automatically.

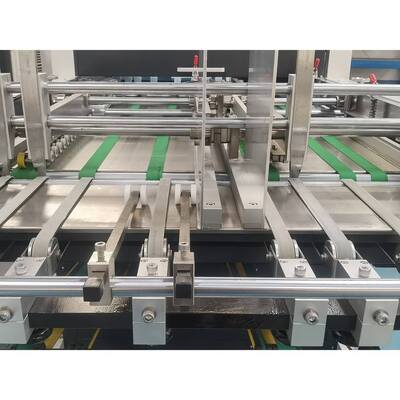

A feeding and aligning system ensures cardboard is cut and grooved exactly at the preset positions.
Load a pile of cardboard while the machine keeps running - no need to stop for loading, ensuring high speed and maximum efficiency.

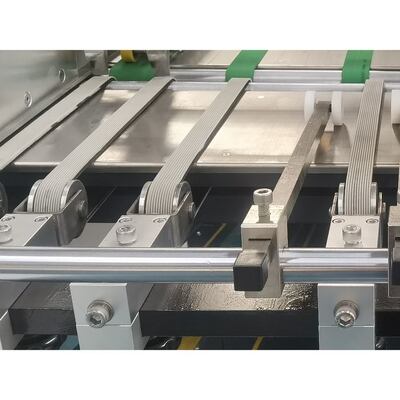

No need to stop the machine during setup. The pressing belt on the main roller can be adjusted quickly while the machine continues running.
Grooved products are automatically stacked on the collection table so the operator can pick them up easily and move to the next production step.
| Machine model | LS-1200G |
| Max grooving quantity | 4 slots |
| Working speed | 15-35 m/min |
| Work efficiency | 20-80 pcs/min |
| Max size (two feeding guides) | 430 x 430 mm |
| Min size | 150 x 150 mm |
| Angle adjustment method | Blade row adjustment |
| Cutter adjustment | Electric adjustment |
| Grooving accuracy | +/-0.1 mm |
| Corner cutting accuracy (length) | +/-1 mm |
| Corner cutting length | 15-120 mm |
| Cardboard thickness | 1-3 mm |
| Motor power | 5.0 kW / 380 V |
| Machine dimension | L3050 x W1500 x H1500 mm |
| Machine weight | 1800 KG |
Machine video: LS-1200G Automatic Cutting and Grooving Machine
LXS specializes in rigid box making and board processing machines. Contact us with your board size and target output for a machine configuration matched to your production line.
