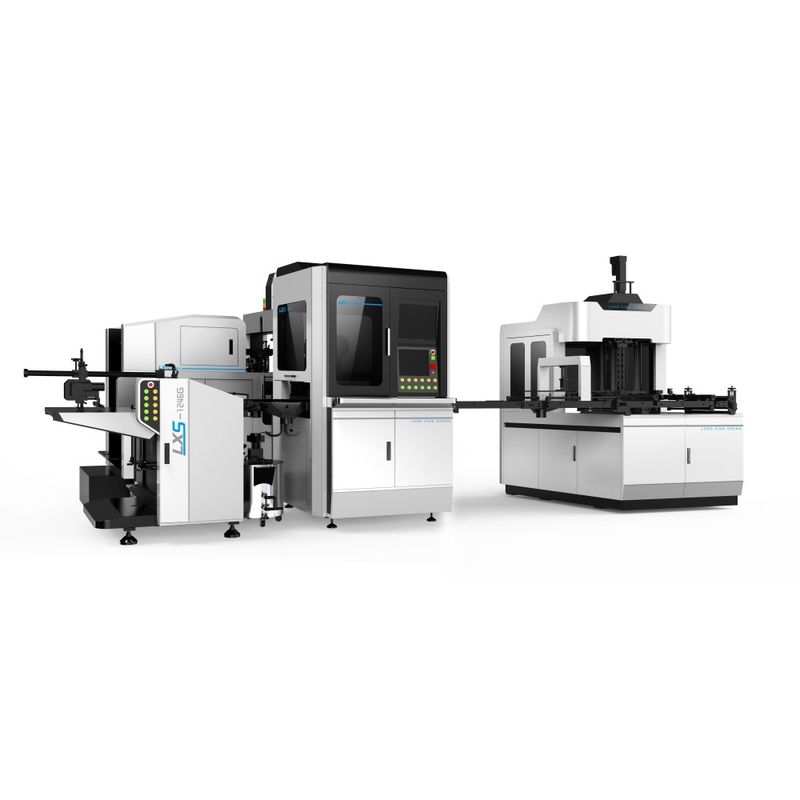

Automatic rigid box making machine for box wrapping and forming machine

Automatic rigid box making machine for box wrapping and forming machine
Automatic rigid box making machine for box wrapping and forming machine Automatic rigid box making machine for box wrapping and forming machine Automatic rigid box making machine for box wrapping and forming machine Automatic rigid box making machine for box wrapping and forming machine

Large Image :  Automatic rigid box making machine for box wrapping and forming machine

Product Details:
Place of Origin: China
Brand Name: Longxingsheng
Certification: CE/ISO-9001
Model Number: LS-1246G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: with film, paper and wooden crates
Delivery Time: 7-30 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets per month
Contact Now

Automatic rigid box making machine for box wrapping and forming machine

Description
Product Name: Automatic Rigid Box Making Machine For Box Wrapping And Forming Machine Max Cardboard Size: L760*W560mm
Min Cardboard Size: L120*W100mm Box Length: 100-600mm
Box Width: 60-400mm Box Height: 15-130mm
Working Speed: 15-25 Pcs/min Weight: 3500Kg
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Field Installation,Free Spare Parts Warranty: One Year

Automatic rigid box making machine for box wrapping and forming machine

    This machine has applied visual positioning for easy and high accurate positioning. This machine are suitable for the orders more than 1000 pcs. It has a big wide size working range. Max box length is 600mm, max box height is 400mm, max height is 130mm. LS-1246G are OK to positioning the hardcover as it equipped with case feeding device. Max feeding cardboard pcs are five pcs.



    The LS-1246G is best choice for rigid box, book-type box,cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.


Specs of autoamtic multi-functional rigid box making machine
Type LS-1246G
Paper size(max) L800*W600mm
paper size(min) L135*W100mm
Max cardboard size L760*W560mm
Min cardboard size L120*W100mm
Box size(length) L100-600mm
Box size(width) W60-400mm
Box size(height) H15-130mm
Paper thickness 80-350g/m2
Cardboard thickness 0.8-3mm
Edge folding size 10-90mm
Turn in depth 15-80mm
Working speed 15-25 pcs/min
Motor power 13kw/380v 3phase
Heating power 8kw
Air pressure 40L/min 0.8MPa
Weight of machine 3500kg
Machine dimension L6500*W3800*H3000mm



Machine advantages

1. Multi-functional, LS-1246G has rigid box making function, hardcover positioning function.
2. Can connect with four sides wrapping machine to make hard cover.
3. No need to move camera.
4. Max box length 600mm, Max box width 400mm, Max box height 120mm.
5. Edge folding length 10-100mm
6. Wrapping into bottom length 100mm


Price vary with raw material cost, please contact our sales for lastest prices.
Automatic rigid box making machine for box wrapping and forming machine 0

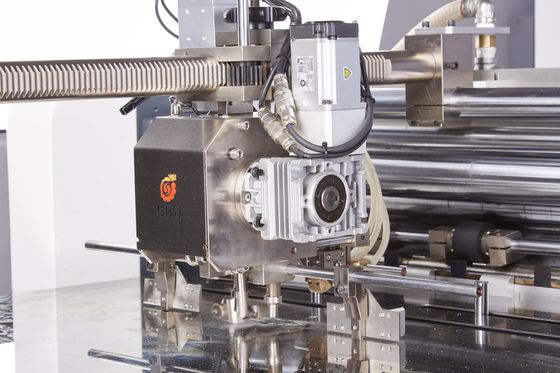

Visual positioning system. Applied the double basler camera. Robotic arm to positioning the box on the glued paper.


Automatic rigid box making machine for box wrapping and forming machine 1

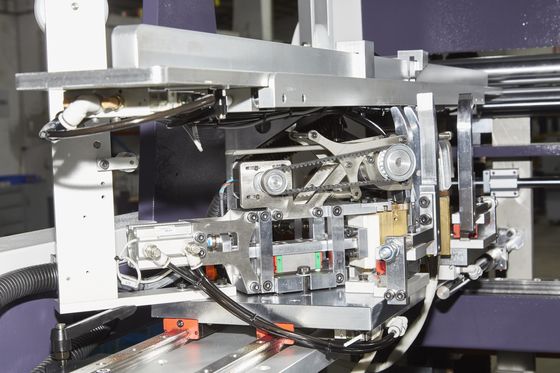

Forming part. Applied the box picker to feeding box to puching rod. It can using the wooden mold and plastic mold.

About our company
Dongguan Longxingjian Intellighent Equipment Co.,Ltd is located in the famousmanufacturing city - Dongguan City,China. Our former company name is Dongguan Longxingsheng machinery CO.,Ltd. We are the leader & professional manufacturer of Automatic/semi-auto rigid box maker which is for for making varies rigidbox ,such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes,shoes boxes, watch boxes, mobile phone boxes, high-end boxes and etc. Our company has been established since 2006.With years experience of machinery's development,manufacturing & selling,our products are with high quality & enjoy very good reputation in global market,especially in Europe,Asia,Mid-east and America. We are much appreciated & treasure our customers' trusting & supporting, and we will always keeping providing high quality products & good after-sales service to you.
1. What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).

2. Does your machine with CE certificate?----Yes.We have CE ,ISO9001.

3. What is the production time while placing order?---- Within 7-30 workdays.

4. Do you have stock product to sell?----Normally we do,it depends on which models you inquired.

5. What is your lead time?----Within 5-30 workdays ,we will arrange your order upon receiving your 30% deposit on order and ship out the machine before receiving your 70% remaining payment.

6. Can LXS company handle shipping for customers?----Yes.(Please provide us your requested sea port and we can check the shipping cost from logistic company and arrange shipping for you.

If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.
