Product Details:
|
| Product Name: | Automatic Rigid Box Making Machine For Jewellery Box Making And Shoe Box Making | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Max Cardboard Size: | L760*W560mm |
| Min Cardboard Size: | L120*W100mm | Working Speed: | 15-25 Pcs/min |
| Weight: | 3500Kg | Voltage: | 380V |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Field Installation,Free Spare Parts | Packaging Type: | Case |

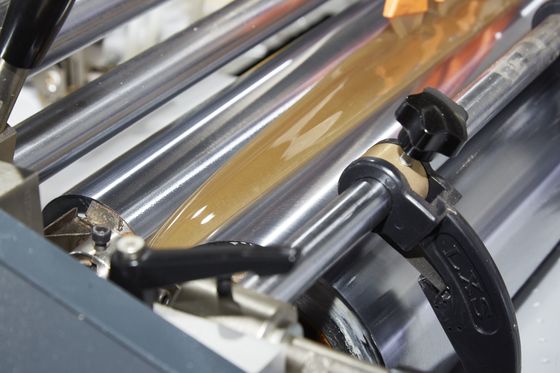

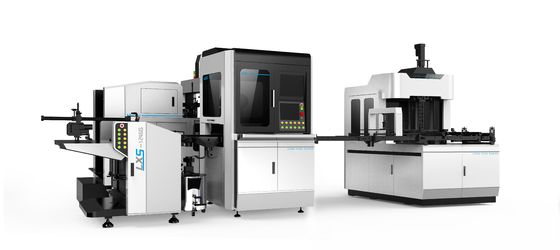

LS-1246G Automatic rigid box machine is an convenient and easy setting machine for factory has lots of box and hardcover orders. It including the box corner pasting, paper gluing, box&case positioning, box wraping and pressing at one time.

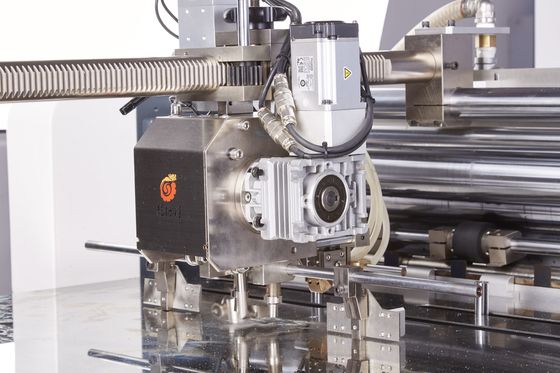

This machine has applied visual positioning for easy and high accurate positioning. This machine are suitable for the orders more than 1000 pcs. It has a big wide size working range. Max box length is 600mm, max box height is 400mm, max height is 130mm. LS-1246G are OK to positioning the hardcover as it equipped with case feeding device. Max feeding cardboard pcs are five pcs.
The LS-1246G is best choice for rigid box, book-type box,cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-1246G |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-130mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3500kg |
| Machine dimension | L6500*W3800*H3000mm |
