Product Details:
|
| Products Name: | Automatic Smart Rigid Gift Wedding Box Making Machine With Dual Box Wrapping System | Max Paper Size: | L800*W590mm |
|---|---|---|---|
| Min Paper Size: | L135*W110mm | Max Cardboard Size: | L700*W550mm |
| Min Cardboard Size: | L100*W100mm | Box Length: | 80-500mm |
| Box Width: | 65-300mm | Box Height: | 15-100mm |
| Working Speed: | 5-45 Pcs/min | ||
| High Light: | wedding hard box making machine,Smart Rigid hard box making machine,45pcs/min gift Box Making Machine |
||

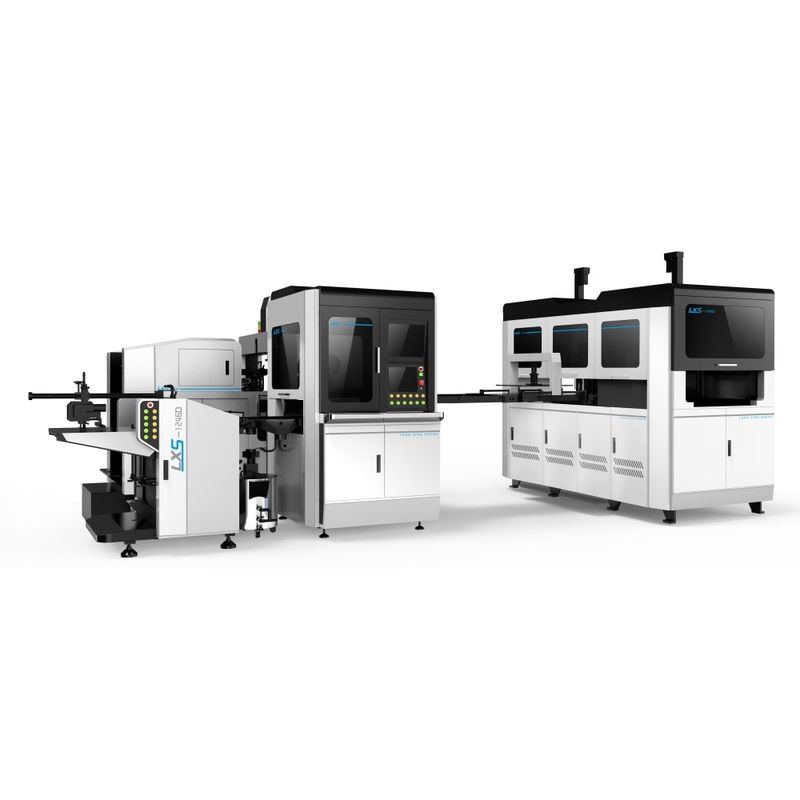

LS-1246D Automatic smart rigid gift wedding box making machine with dual box wrapping system is an ideal machine for customer who has changable orders.
It including the box corner pasting, paper gluing, box positioning, box wraping and pressing at one time. This machine has applied visual positioning for easy and high accurate positioning. Automatic setting in the forming station make the whole machine setting time reduce grealty.
The LS-1246D is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
