Product Details:
|
| Products Name: | Automatic Smart High Speed Rigid Phone Ring Box Making Machine With Dual Box Wrapping System | After-sales Service Provided: | Service Machinery Overseas,Video Technical Support,Field Installation |
|---|---|---|---|
| Box Length: | 105-600mm | Box Width: | 85-400mm |
| Box Height: | 1-120mm | Working Speed: | 4-45 Pcs/min |
| Condition: | New Model | Edge Folding Size: | 10-88mm |
| Turn In Depth: | 15-88mm | ||
| Highlight: | Rigid mobile box making machine,45pcs/Min mobile box making machine,Rigid box manufacturing machine |
||

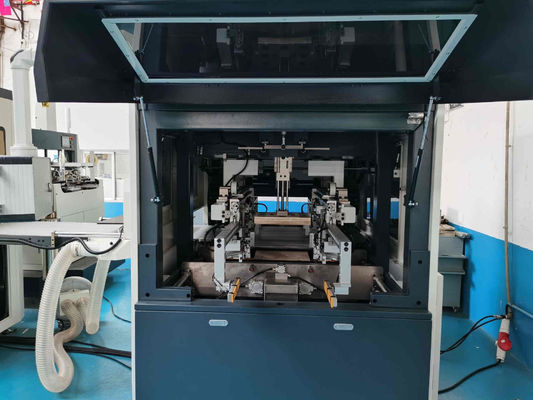

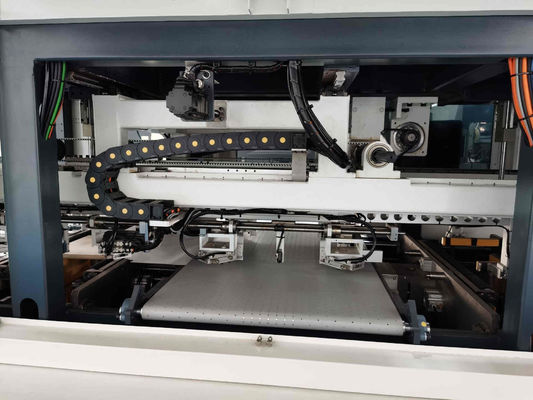

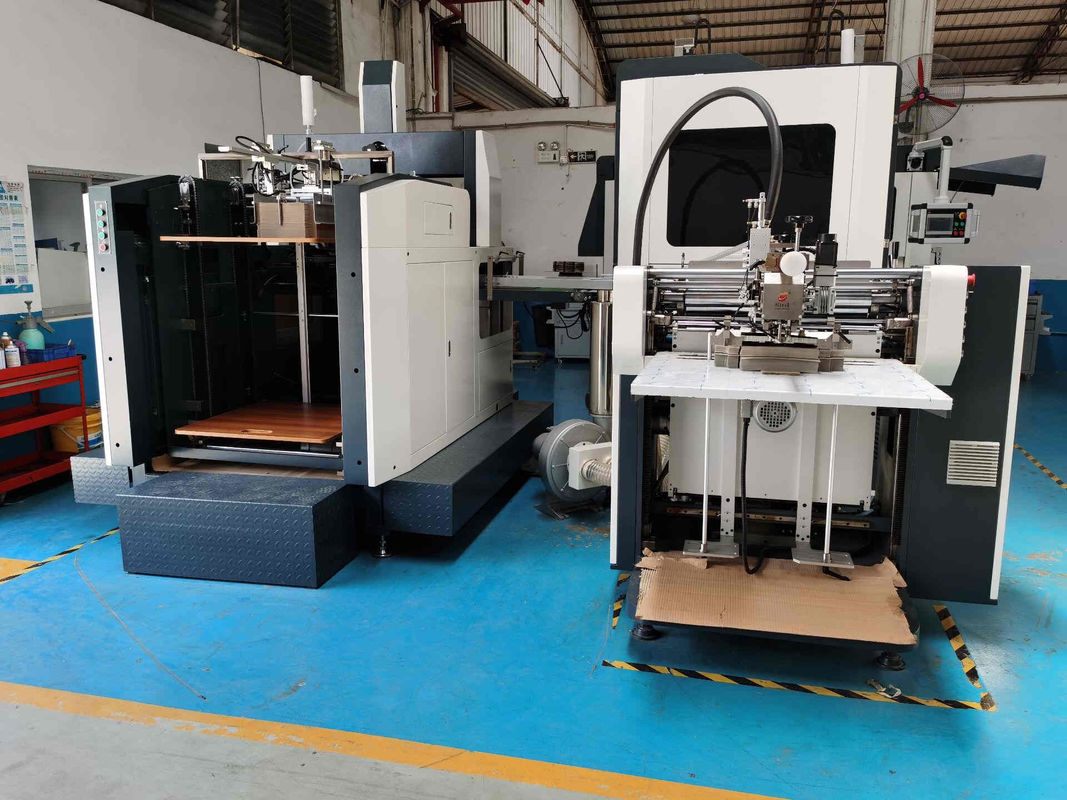

LS-1246D including the box corner pasting, paper gluing, box positioning, dual box forming station and air pressing at one time. This machine has applied visual positioning for easy and high accurate positioning. Automatic setting in the forming station make the whole machine setting time reduce grealty.
It suitable for customer seeking for smart high speed rigid box making machine. This is an ideal machine for rigid box manufacturer who has long and stable but changable orders.
The LS-1246D is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
