Product Details:
|
| Products Name: | Ring Jewelry Rigid Box Making Machine For Making Jewelry Box And Ring Boxes | After-sales Service Provided: | After Sale Serivce Team Available To Service Machinery Overseas |
|---|---|---|---|
| Box Length: | 104-600mm | Box Width: | 84-400mm |
| Box Height: | 24-120mm | Working Speed: | 2-40 Pcs/min |
| Condition: | New Model | Edge Folding Size: | 20-60mm |
| Turn In Depth: | 15-70mm | ||
| Highlight: | Ring Jewelry Rigid Box Making Machine,L800mm Rigid Box Making Machine,W600mm gift Box Making Machine |
||

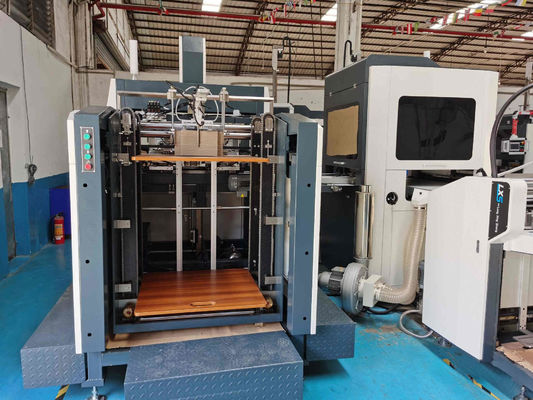

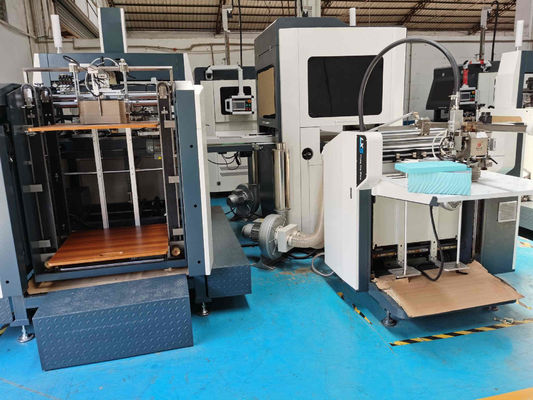

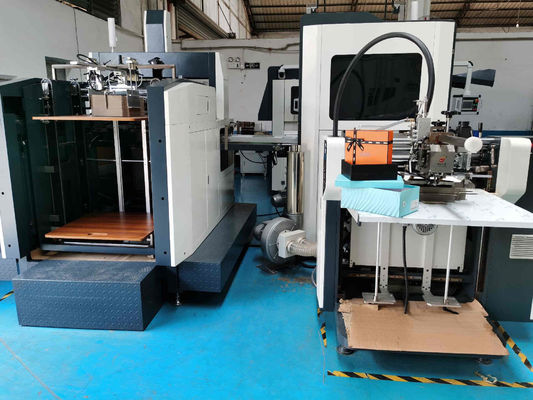

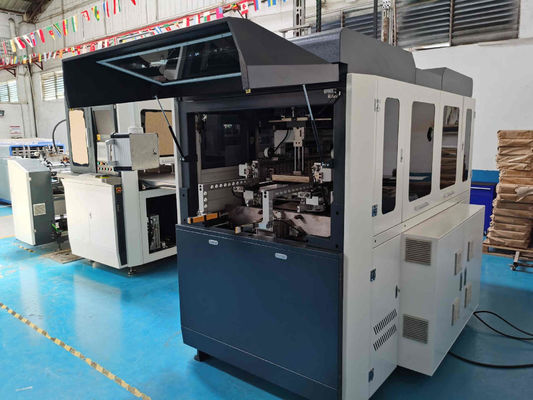

Ring Jewelry Rigid Box Making Machine For Making Jewelry Box And Ring Boxes
Automatic setting in the forming station make this machine adjusting time reduce grealty. This whole line including the box corner pasting, paper feeding and gluing, box positioning, dual box forming station and automatic air pressing at one time. This machine has applied visual positioning for easy and high accurate positioning.
It suitable for customer seeking for smart high speed rigid box making machine. This is an ideal machine for rigid box manufacturer who has long and stable but changable orders.
The LS-1246D is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
