Product Details:
|
| Products Name: | Automatic Smart High Speed Rigid Jewelry Cigarate Hat Making Machine With Dual Box Wrapping System | Box Length: | 103-600mm |
|---|---|---|---|
| Box Width: | 83-400mm | Box Height: | 23-120mm |
| Working Speed: | 2-45 Pcs/min | Edge Folding Size: | 10-78mm |
| Turn In Depth: | 11-80mm | ||
| Highlight: | Cigarate Hat Making Machine,Jewelry Hat Making Machine,400mm packaging box making machine |
||

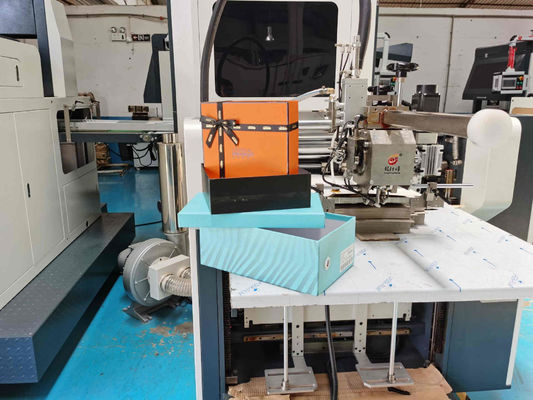

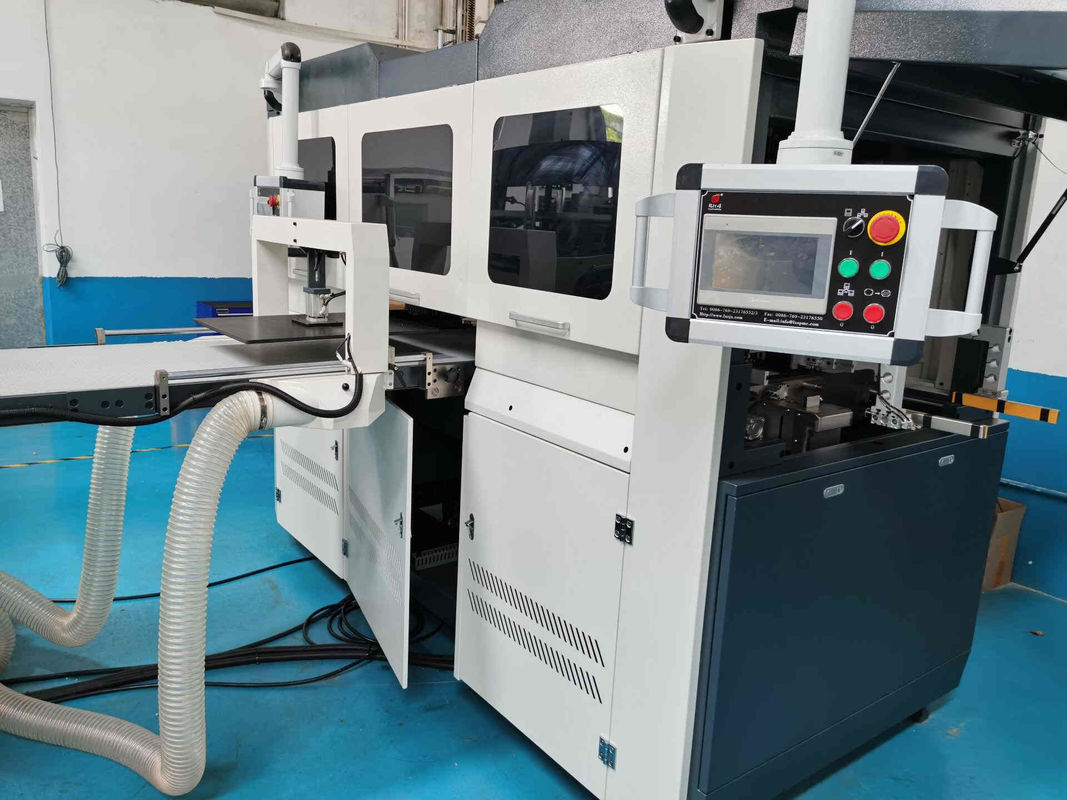

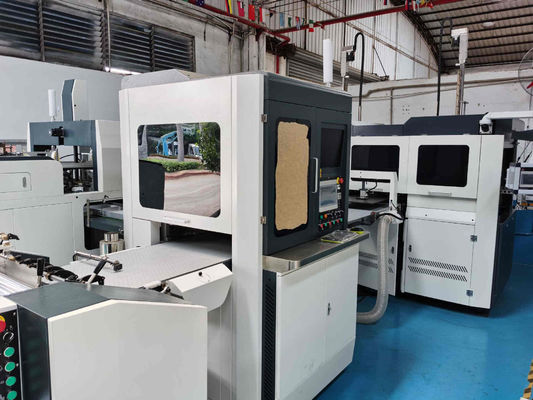

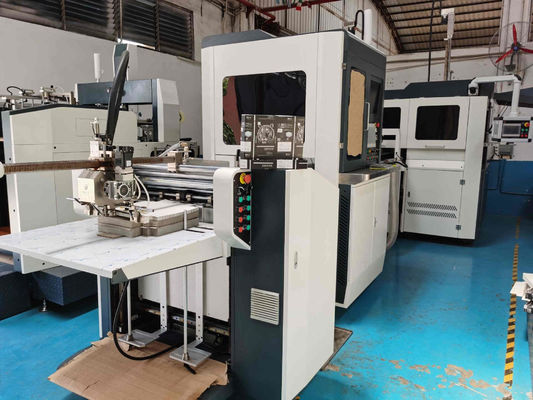

Dual forming station of LS-1246D has ensured its high working speed at 45pcs/min. The intelligent setting has ensured it can change new size in the shortest time.
Automatic setting in the forming station make the whole machine setting time reduce grealty. This whole line including the box corner pasting, paper gluing, box positioning, dual box forming station and air pressing at one time. This machine has applied visual positioning for easy and high accurate positioning.
It suitable for customer seeking for smart high speed rigid box making machine. This is an ideal machine for rigid box manufacturer who has long and stable but changable orders.
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
