Product Details:
|
Products Name: | Automatic Smart High Speed Rigid Jewelry Cigarate Magic Box Making Machine With Dual Box Wrapping System | Working Speed: | 1-45 Pcs/min |
---|---|---|---|
Edge Folding Size: | 10-90mm | Turn In Depth: | 15-80mm |
Weight: | 5300KG | Condition: | New |
Positioning Way: | Camera Visual Positioning | ||
Highlight: | Magic Rigid Box Making Machine,Rigid Box Making Machine 90mm,90mm cake box making machine |

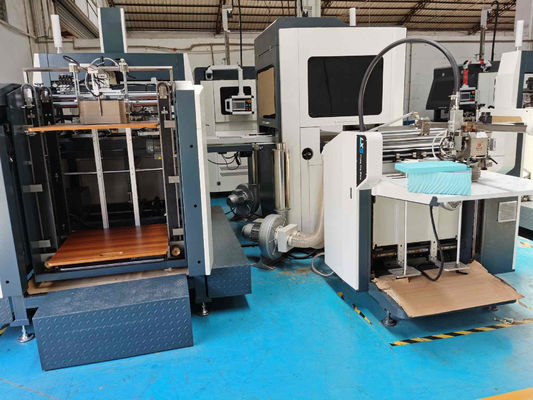

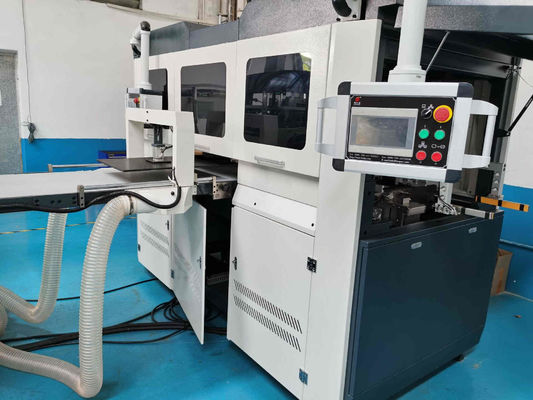

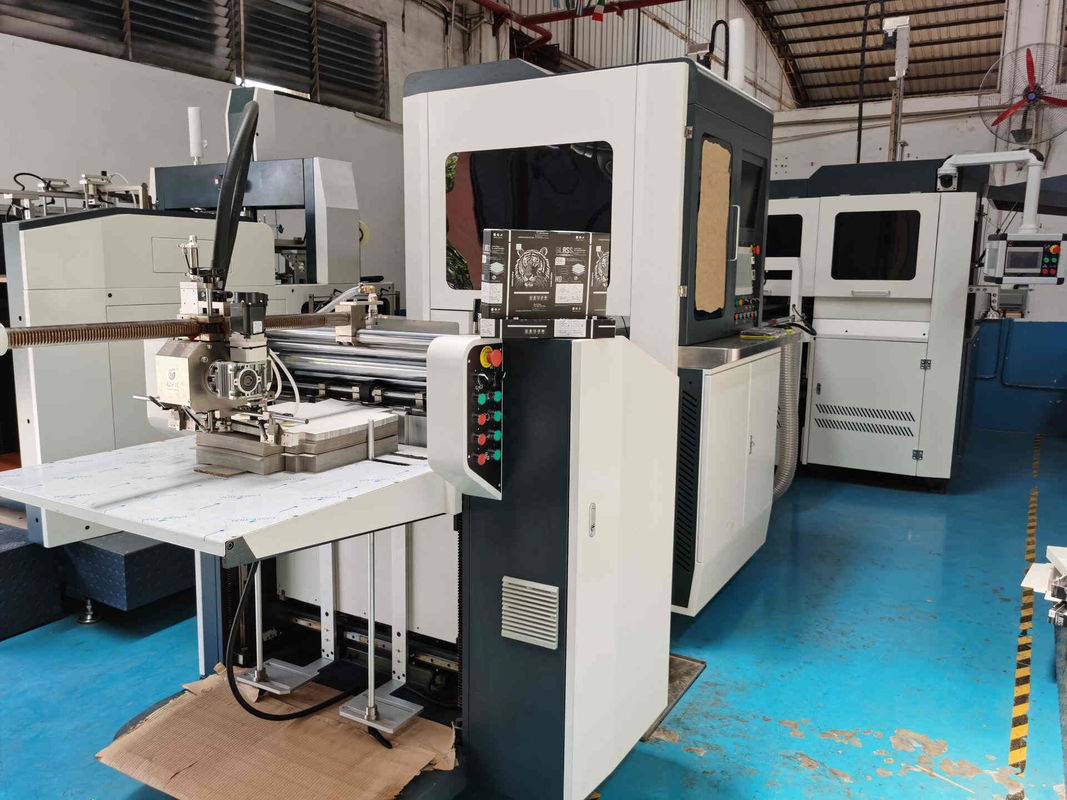

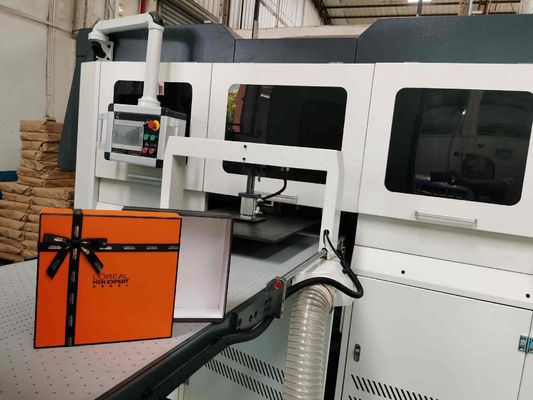

The LS-1246D has degined for a wide range box production with intelligent setting. The max box length is 600mm, max width is 400mm, Max height is 120mm. Whole line has applied the visual positioning technology in rigid box making. Ensure its high working speed and accuracy, Whole working speed can be adjusted in one button. The intelligent setting has ensured it can change new size in the shortest time.
Automatic setting in the forming station make the whole machine setting time reduce grealty. This whole line including the box corner pasting, paper gluing, box positioning, dual box forming station and air pressing at one time. This machine has applied visual positioning for easy and high accurate positioning.
It suitable for customer seeking for smart high speed rigid box making machine. This is an ideal machine for rigid box manufacturer who has long and stable but changable orders.
Type | LS-1246D |
Paper size(max) | L800*W600mm |
paper size(min) | L135*W100mm |
Max cardboard size | L760*W560mm |
Min cardboard size | L120*W100mm |
Box size(length) | L100-600mm |
Box size(width) | W60-400mm |
Box size(height) | H15-120mm |
Paper thickness | 80-350g/m2 |
Cardboard thickness | 0.8-3mm |
Edge folding size | 10-90mm |
Turn in depth | 15-80mm |
Working speed | 15-45 pcs/min |
Motor power | 13kw/380v 3phase |
Heating power | 8kw |
Air pressure | 40L/min 0.8MPa |
Weight of machine | 4300kg |
Machine dimension | L6600*W4200*H3000mm |
