Product Details:
|
| Products Name: | Automatic Smart High Speed Rigid Shoe Food Preium Box Making Machine With Visual Positioning | Box Length: | 94-600mm |
|---|---|---|---|
| Box Width: | 74-400mm | Box Height: | 15-109mm |
| Positioning Accuracy: | 0.12mm | Weight: | 4000KG |
| Condition: | New | Voltage: | 380V |
| High Light: | Rigid shoe box making machine,shoe box making machine Visual Positioning,Food Box Making Machine 0.12mm |
||
As increasing of rigid box market, it have meet the situation that more and more orders and few experienced engineer of machine operating. It is the reason why we developing the LS-1246D, for high speed and intelligent setting.
With the developing of rigid box production, more customer are looking for an automatic rigid box making machine with high speed and intelligent setting. So that the worker can focus on the rigid box production not in machines itself.

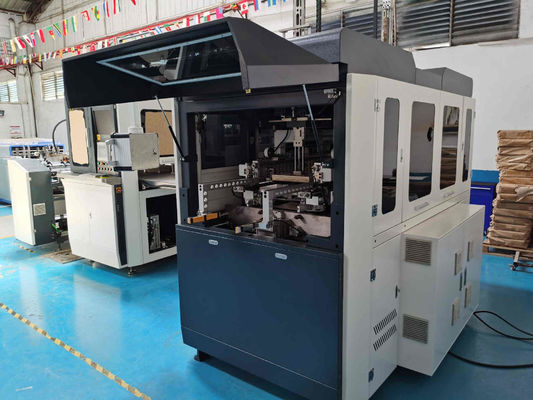

Automatic setting in the forming station make the whole machine setting time reduce grealty. This whole line including the box corner pasting, paper gluing, box positioning, dual box forming station and air pressing at one time. This machine has applied visual positioning for easy and high accurate positioning.
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
