Product Details:
|
| Product Name: | LS-F7 Semi-Automatic Box Strapping Machine For Phone Boxes And Gift Boxes | Machine Dimension: | L1200*W1300*H3060mm |
|---|---|---|---|
| Working Speed: | ＜15pcs/min | Warranty: | 1 Year |
| Machine Weight: | 1100kg | Wrapping Into Depth: | 65mm |
| High Light: | Semi Automatic box strapping machine,15pcs/Min box strapping machine,65mm Phone Box Strapping Machine |
||

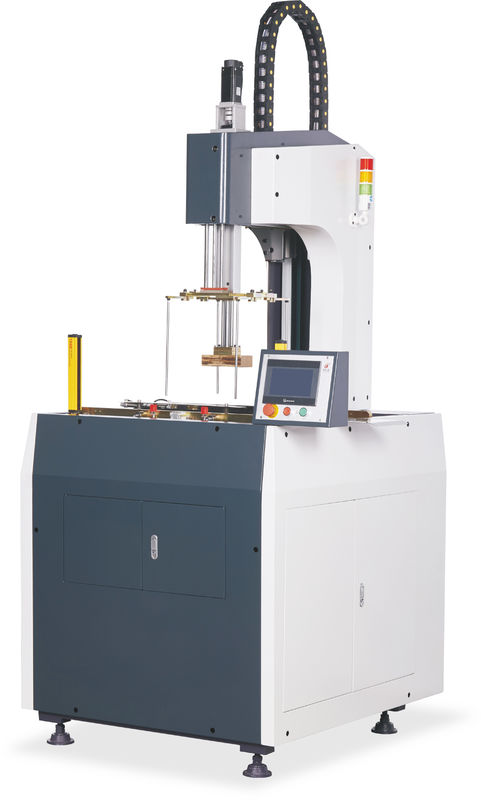

LS-F7 Semi-Automatic Box Strapping Machine For Phone Boxes And Gift Boxes

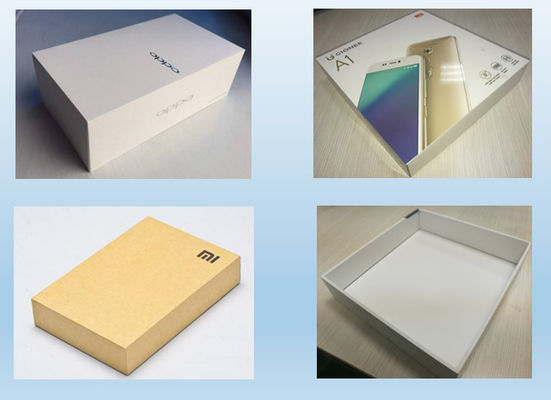

LS-F7 Semi-Automatic Box Strapping Machine For Phone Boxes And Gift Boxes is applied for wrapping the cover paper on the pasted box.
When we get a new box, installed the box mold on machine, input its data on the LS-F7 touch screen. Including the box length, width, height, cover paper width, top mold height, middle mold height and tucking in blade thickness. Then press caluate, machine will automaitc come to home position and move to setting position.
Load a box to checking the setting and ensure each setting is fine. Then machine can start working. Whole process will cost 8 minutes.
It is an ideal equipment for changable small orders.
Working process:
1. box positioning on glued paper
2. Long side wrapping
3. Tucking in and edge folding
4. First floor air pressing
5. Short side wrapping
6. Tucking-in and second floor air pressing
| Type | LS-F7 |
| Max box size | L430*W350*H110mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 3.2kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤20pcs/min |
| Machine dimension | L1200*W1120*H3100mm |
| Weight of machine | 1150kg |
Company introduction:
Longxingsheng Machinery Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
